Gester International Co., Ltd
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE,ISO |
| Model Number: | GT-KC10A |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Product Name: | Bally Resistance Flexing Tester For Leather Materials | Warranty: | 1 Year |
|---|---|---|---|
| Flexing Speed: | 100 ± 5 Cycles / Flexes Per Minute | Standards: | ISO 32100 ; DIN53351; ISO5402-1 |
| Counter: | LCD 0 - 999,999.(adjustable) | Price: | Factory Price |
| High Light: | EN 13512 Shoe Testing Machine,AC 220V Shoe Testing Machine,EN 13512 Bally Flexing Tester |
||
Application
To determine the resistance of a material to cracking or other types of failure at flexing creases. The method is applicable to all flexible materials and in particular leathers, coated fabrics and textiles used in footwear uppers.
Feature
The test specimen is folded in half then one end is secured in a clamp. The test specimen is then turned inside out and the free end secured in a second clamp at 90 degrees to the first. The first clamp is repeatedly oscillated through a fixed angle at a defined rate causing the test specimen to flex. At set intervals the number of flexing cycles is recorded and the damage to the test specimen is visually assessed. The test can be carried out with wet or dry test specimens at ambient.
Standards
|
SATRA TM 55; IULTCS/IUP 20-1; ISO 17694 ; EN 13512 ; EN344-1 section 5.13.1.3 and annex C; EN ISO 20344 section 6.6.2.8; GB/T20991 section 6.6.2.8; AS/NZS 2210.2 section 6.6.2.8; JIS-K6545; BS 3144 Clause 13 |
Equipped with A type of upper grips. |
|
ISO 32100 ; DIN53351; ISO5402-1; GE-24;ASTM D 6182 |
Equipped with B type of upper grips. |
Key Specification
| Model | GT-KC10A-6 | GT-KC10A-12 | GT-KC10A-24 |
| Test position | 6Sets | 12 Sets | 24 Sets |
| Type of upper grips | Please choose the suitable type as below chart of ‘Standard’. | ||
| Flexing angle | 22.5° ± 0.5° | ||
| Flexing speed | 100 ± 5 cycles / flexes per minute | ||
| Counter | LCD 0 - 999,999.(adjustable) | ||
| Sample size | 70 ± 5 x 45 ± 5 mm | ||
| Power supply | AC 220V 50/60HZ | ||
| Dimensions ( L x W x H ) | 700x300x340mm | 780x450x360mm | 1100x510x220mm |
| Weight | About 45kg | 60kg | 70kg |
Accessories
| Standards Accessories | Power line | 1pc |
| Optional Accessories | GT-KD20 Pneumatic sample cutting machine | (Cutter: 70 ± 5 x 45 ± 5 mm) |

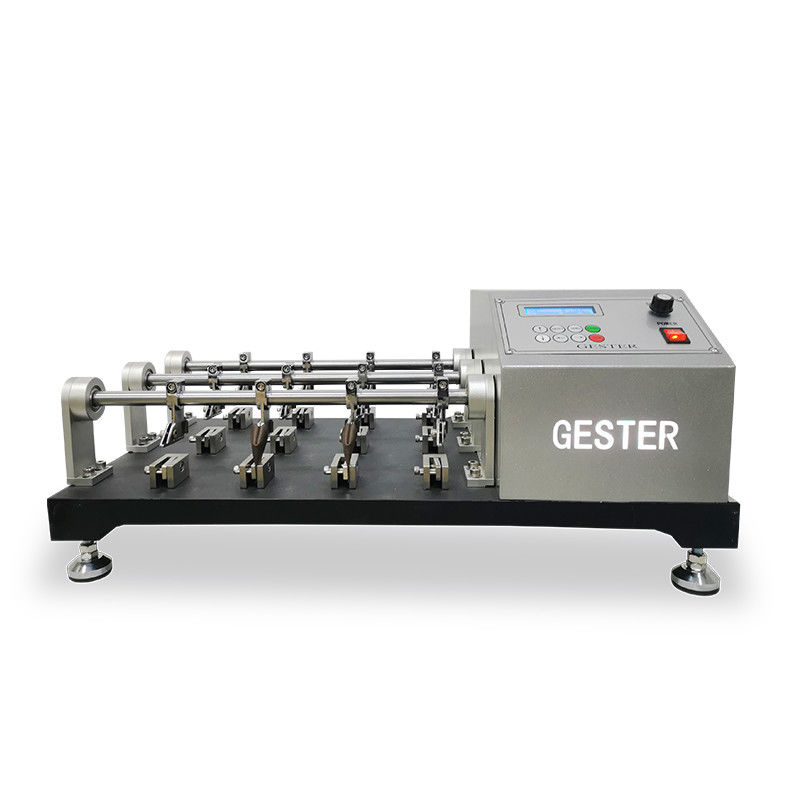

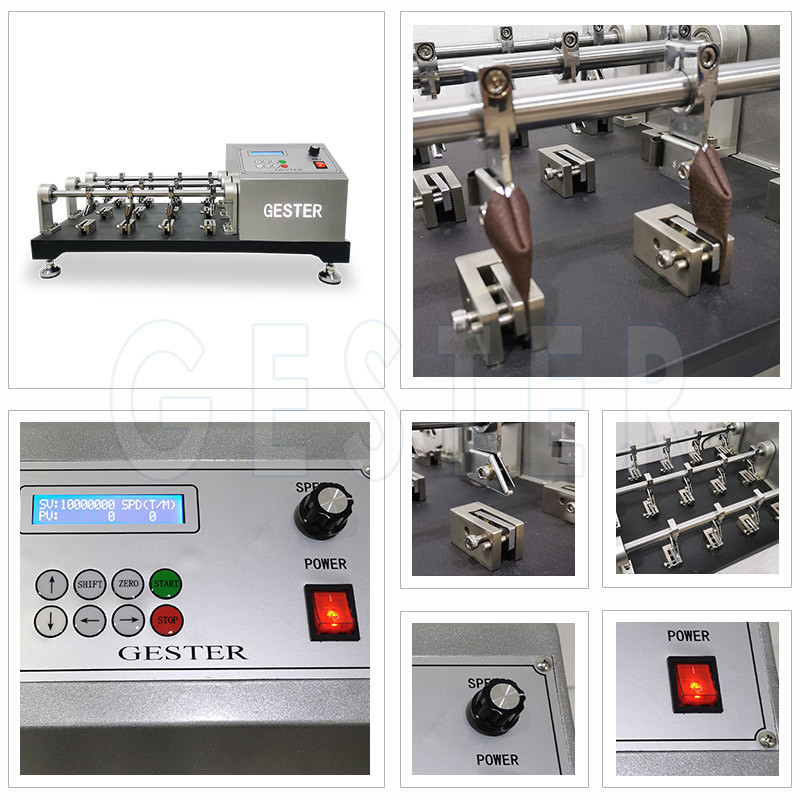

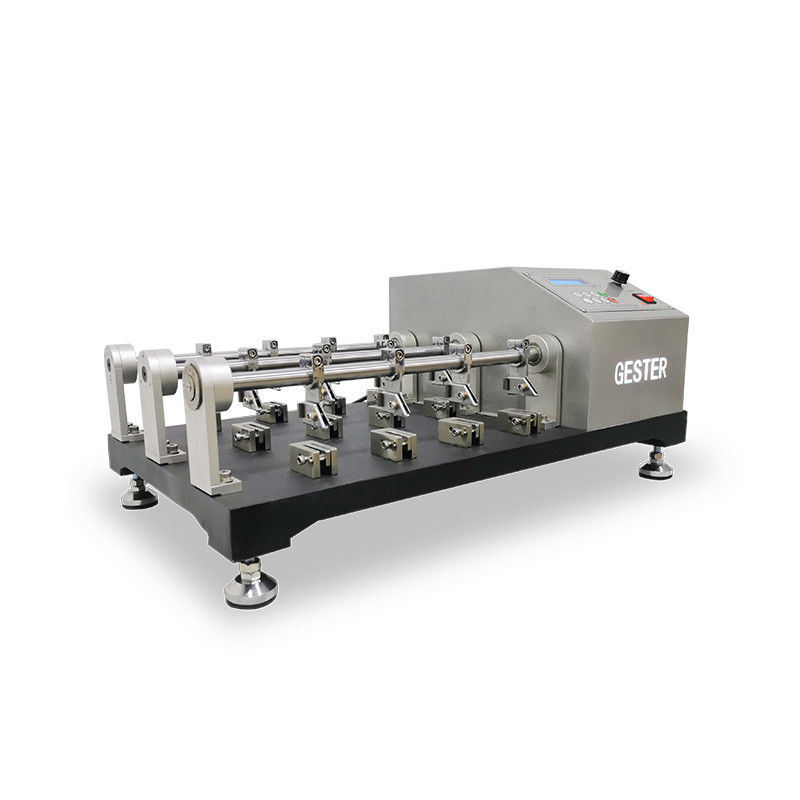

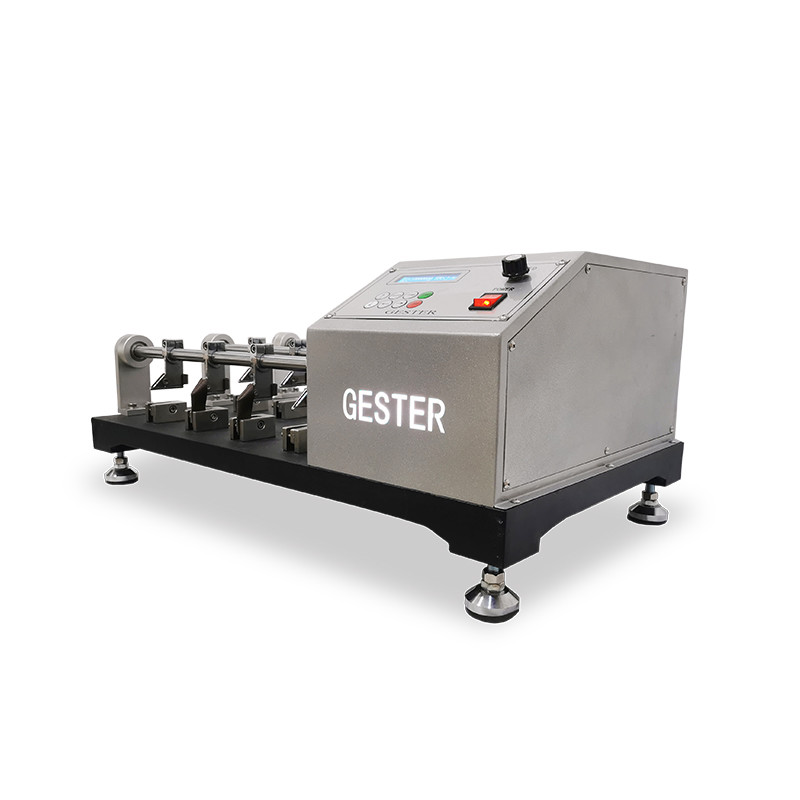

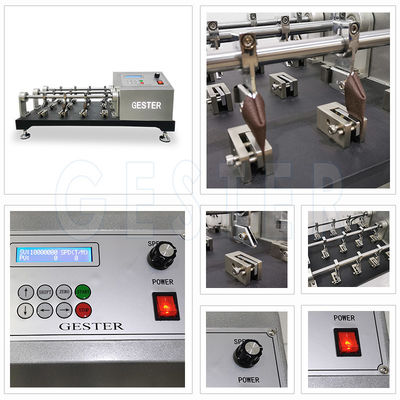

Product Image
