Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-C26A |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Testing Range: | 500pa-200kpa | Power Supply: | AC 220V 50/60HZ |
|---|---|---|---|
| Application: | Canvas,Cotton,Geotextile,Hood Fabric | Specimen Test Area: | 100cm2, Or 7.8cm2 (Option) |
| Weight: | 60 Kg | Warranty Period: | 1 Year |
| High Light: | EN20811 Hydrostatic Head Tester,200kpa Hydrostatic Head Tester,EN20811 Hydrostatic Pressure Testing Machine |
||
Pneumatic Clamping Fabric Hydrostatic Head Pressure Tester For Fabric
Application
Digital Hydrostatic Tester is used to testing the waterproof properties of fabrics through waterproofing work such as canvas, coated fabrics, hood fabric, tarpaulin, rain-proof fabrics and geotextile.
Feature
Key Specifications
| Model | GT-C26A |
| Testing range | 500pa-200kpa |
| Water pressure increase rate | 1kpa-30kpa |
| Accuracy | 0.2%F.S |
| Specimen test area | 100cm2, or 7.8cm2 (Option) |
| Testing mode | Supercharge method, leaking method (set the pressure and time) |
| Testing unit | pa , mmHg , cmH2O |
| Power supply | AC 220V 50/60HZ |
| Dimension | 600 x 450 x 640mm (L x W x H) |
| Weight | 60 kg |
Accessories
| Standard accessories | 1Set | 100cm2 testing sets |
| 1Set | Calibration plate | |
| 2pcs | Rubber ring | |
| 1pc | Power line | |
| Optional accessories | Optional | Fixtures of other testing range |
Standards
|
AATCC 127 Option 2, ISO 811, ISO 1420, GB/T4744, FZT01004 , DIN53886 , JIS L1092-7.1.1, EN20811, EN 13726-3 |

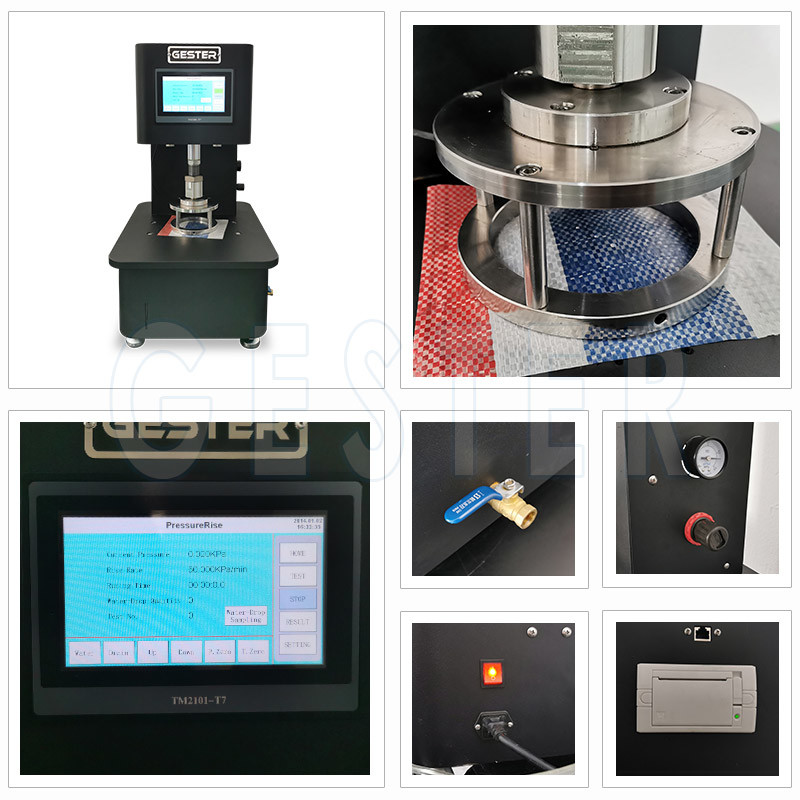

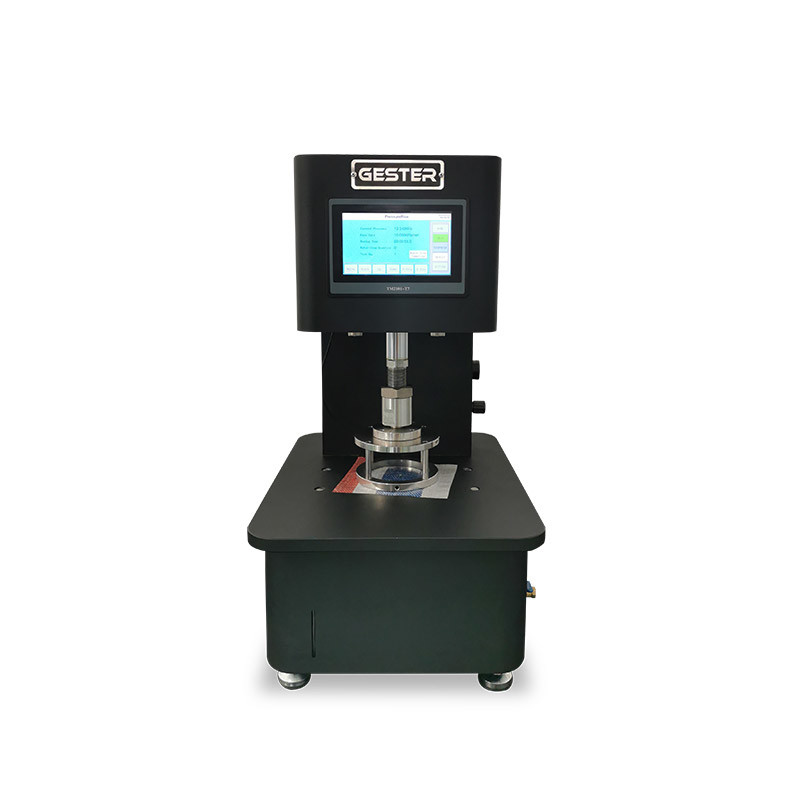

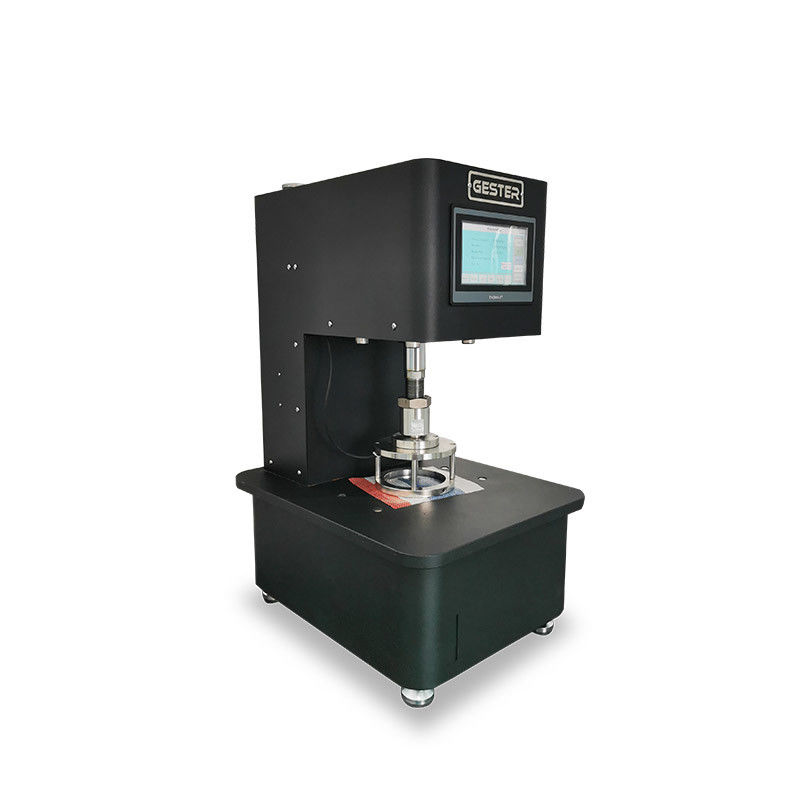

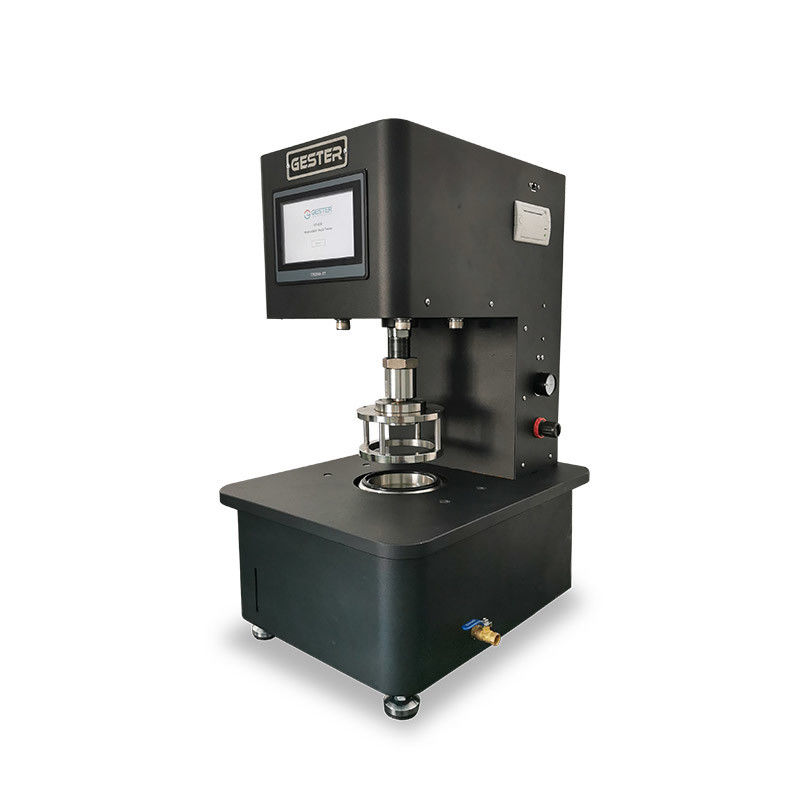

Product Picture
