Gester International Co., Ltd
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE,ISO |
| Model Number: | GT-N22 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Loading Method: | Dynamic Load | Resolution: | 0.01mN |
|---|---|---|---|
| Sample Size: | 38*70mm (Standard) | Actual Measured Size: | 38*50mm (Standard) |
| Power Source: | AC220V | Product Names: | Paperboard And Paper Bending Stiffness Tester |
| Key Words: | Paperboard And Paper Bending Stiffness Tester | Testing Thickness: | 0.01~5.0mm |
| 0.01~5.0mm: | Factory Price | Printer: | Thermal Printer |
| High Light: | CE bending stiffness tester for paper,iso 2493 paper stiffness tester,iso 2493 bending stiffness tester |
||
|
Application |
The Bending stiffness tester is used for testing the bending stiffness of paper and paperboard. The bending stiffness can be used for testing the
bending stiffness performance of film, mica sheet, graphite sheet, composite material and other sheet materials.
| Standards |
GB/T 2314, GB/T 2236, ISO 5628, ISO 2493
| Key Specification |
| Model | GT-N22 |
| Sample Size | 38×70mm (standard) |
| Actual measured size | 38×50mm (Standard) |
| Testing Range | (0~10000)mN |
| Testing Thickness | 0.01~5.0mm |
| Resolution | 0.01mN |
| Bending Time | adjustable according to different material |
| Bending Angle | adjustable between 1 to 92 º |
| Bending Length | 8 types can be choose (50/40/30/25/20/15/10/5) ±0.1mm |
| Angular speed Control | 0.5 – 50 °/sec |
| Printer | Thermal Printer |
| Data Display | 7inch Touch Screen Display, Visual menu operation. |
|

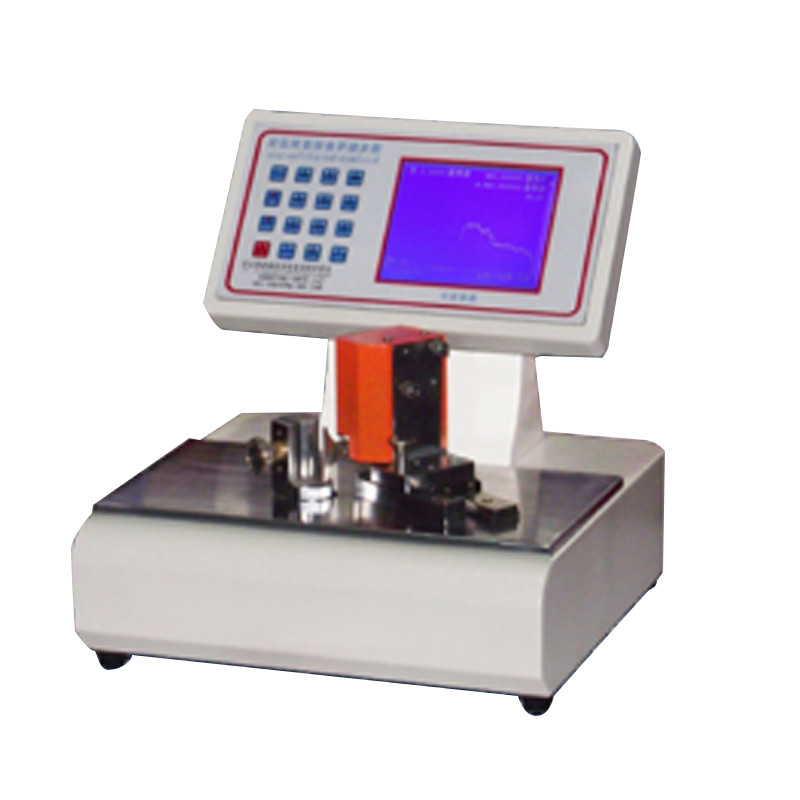

Product Image |
