Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-C09 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Power: | Electronic | Warranty: | 12 Months |
|---|---|---|---|
| Color: | Silver | Power Supply: | 220V |
| Keyword: | Button Pull Test Machine | Advantage: | Factory Direct Sale |
| High Light: | D4846 Textile Testing Machine,ISO Button Pull Textile Testing Machine,D4846 Button Snap Pull Tester |
||
|
Application:
The aim of button snap pull tester is defined responsibility of garment manufacturer, make sure button, push-button and fixed accessories can fixed on garments suitable. To avoid button fall off garments & risk of infant eating. So, all the button, push-button & fixed accessories on garments must pass snap button pull strength test. This machine can do even and vertical tensile test of all kinds of buttons on garments. Test fastness degree of button reach relative security standard or not. Standards: 16 CFR 1500.51-53, ASTM PS79-96, D4846 |

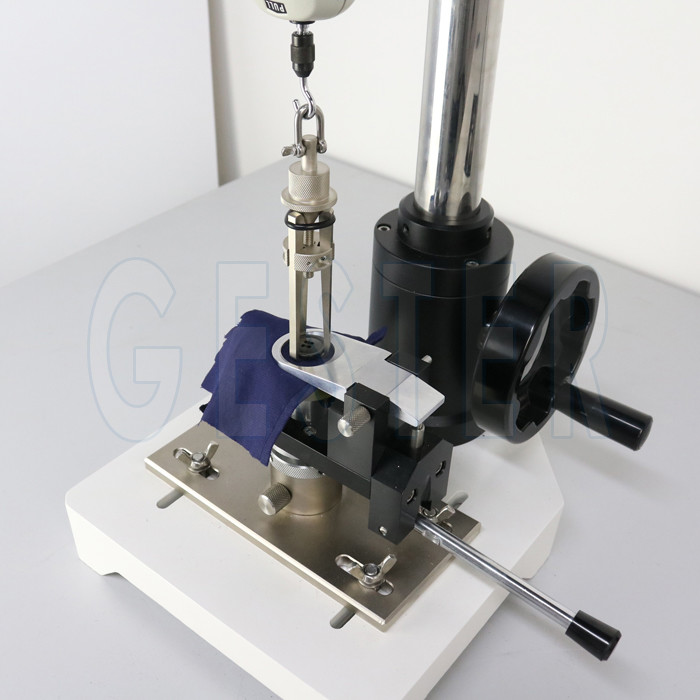

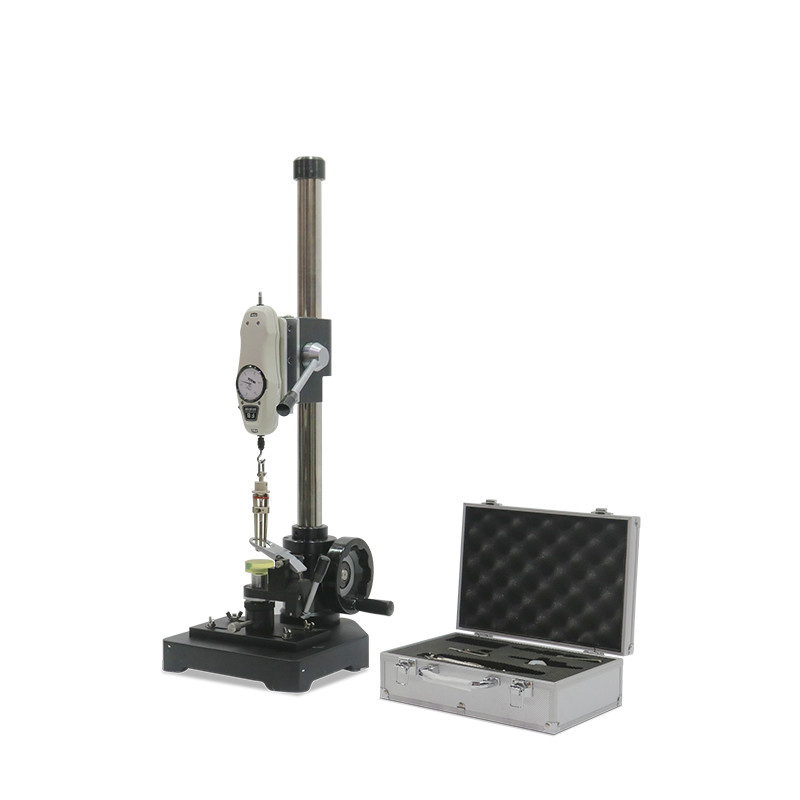

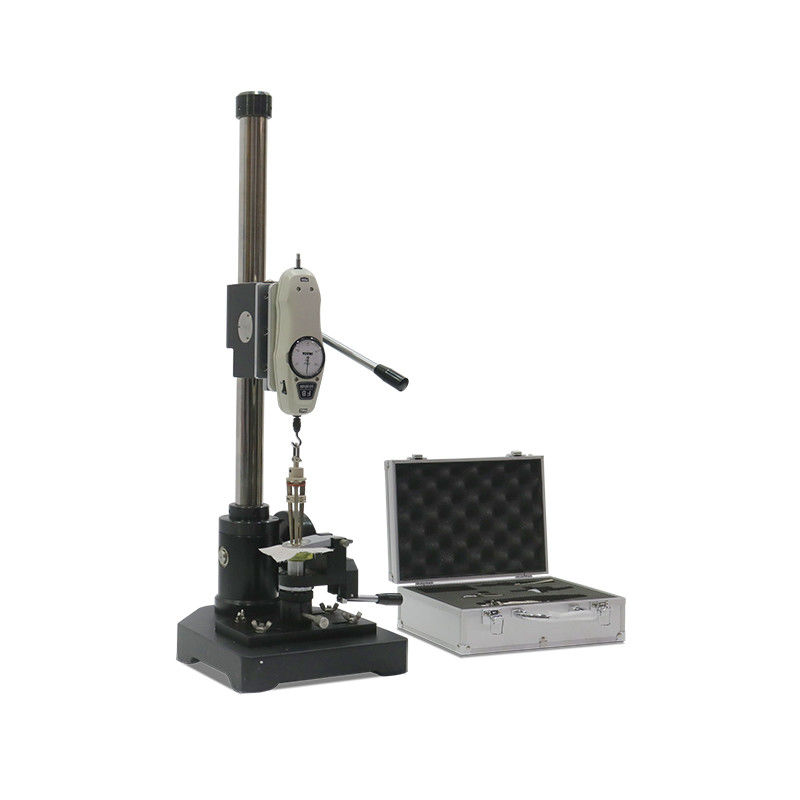

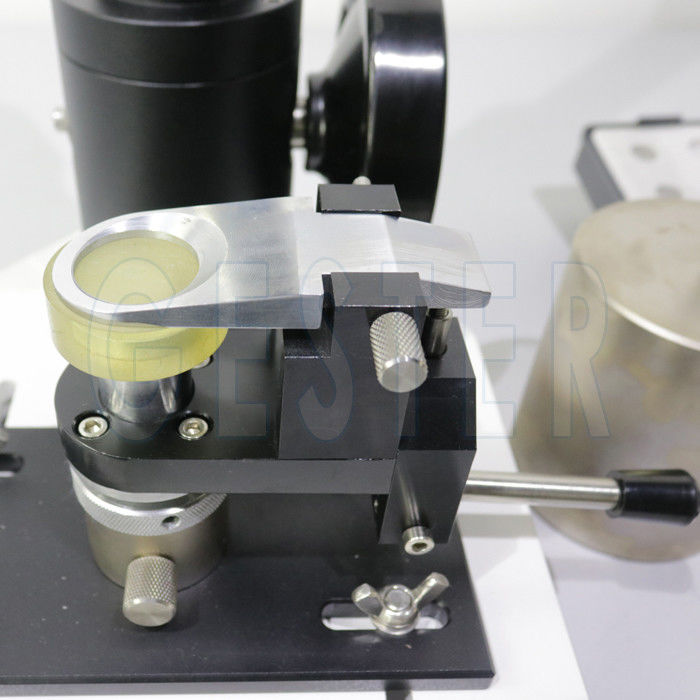

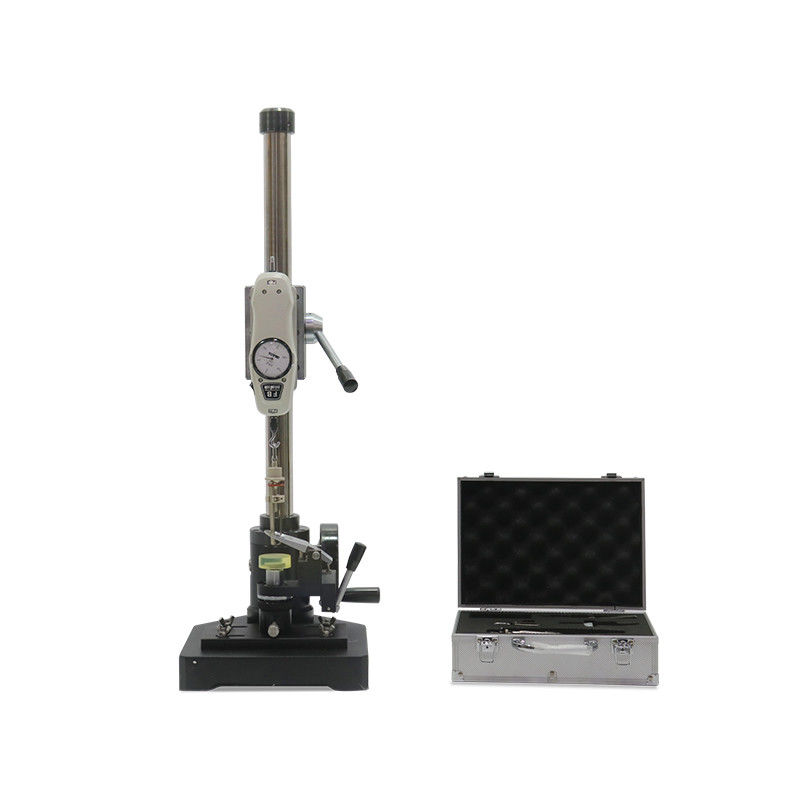

Button pull test machine is a simple but effective design mainly consisting of a high precision gauge, a sturdy required by standards & regulations is be fixed horizontally (constant force is applied to secure the sample) so that snap or other accessories attached in fabric can be clamped into.
Moreover, a standard weight is also offered so that it can be regularly checked if it meets the safety requirements.
| Dimensions: | 26 x 31 x 82 cm |
| Net Weight: | 32kg |
Accessories
| Standard accessories | 1pc | IMADA Force Gauge FB-30K |
| 1pc | GT-MC01 Upper Universal Grip | |
| 1pc | GT-MC02 Upper Stud Grip | |
| 1pc | GT-MC03 Lower Fabric Clamp & Level Arm Locking | |
| 1pc | GT-MC04 Lower Grasp Button Accessory Kit | |
| 1pc | GT-MC05 Calibration Weight 15LB | |
| 1pc | GT-M37 Three Pronged Grip | |
| 1pc | GT-M43 Upper Long Nose Vise Grip | |
|
Optional accessories
|
Optional | GT-M36 Two Pronged Clamp |
| Optional | GT-M39 Flat Clamp | |
| Optional | GT-M49 Short - Mouth Clamp | |
| Optional | GT-M50 Seam Clamp | |
| Optional | GT-M53 Wide - Mouth Clamp | |
| Optional | GT-MC06 Multifunction Vise Clamp | |
| Optional | GT-MC07 ASTM Zipper Test Kit | |
| Optional | GT-MC09 Clamps for ASTM D4846 |
