Place of Origin: | China |
---|---|
Brand Name: | GESTER |
Certification: | CE, ISO |
Model Number: | GT-LB04-1 |
Minimum Order Quantity: | 1 set |
Packaging Details: | wooden packaging |
Delivery Time: | 10-30 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets/month |
Power: | 220V | Usage: | Tests The Strength And Durability Of The Seats And Backrests |
---|---|---|---|
Warranty: | 12 Months | Product Name: | Chair Seating And Back Testing Machine |
Application: | Chair | Testing Before Delivery: | Yes |
Highlight: | BIFMA X5.1 Furniture Testing Machine,2000N Furniture Testing Machine,BIFMA X5.1 Chair Testing Equipment |
Application:

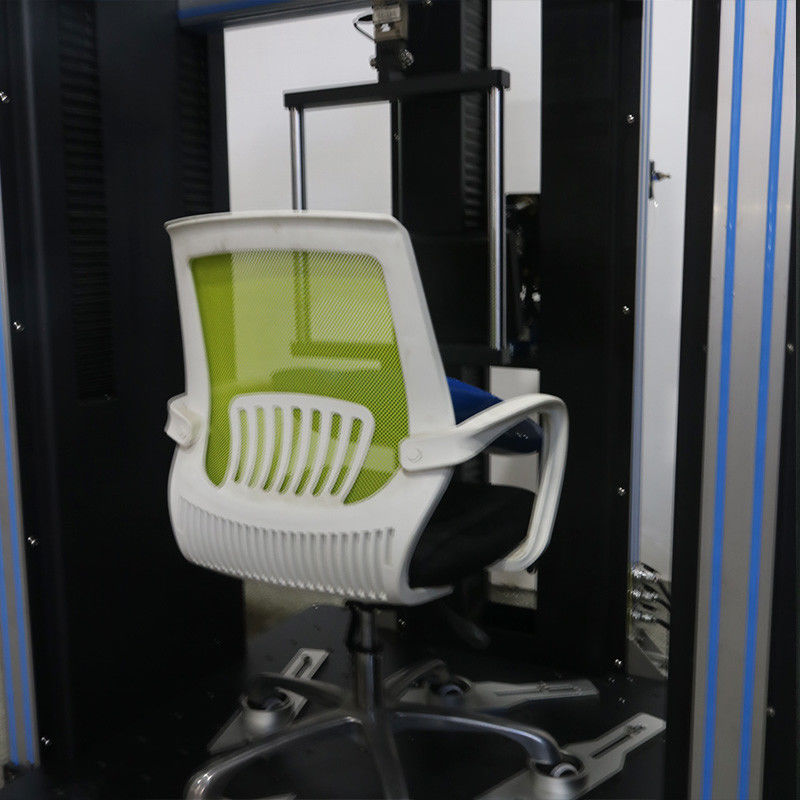

The Chair tester tests the strength and durability of the seats and backrests by simulating the routine use loading of the seat.

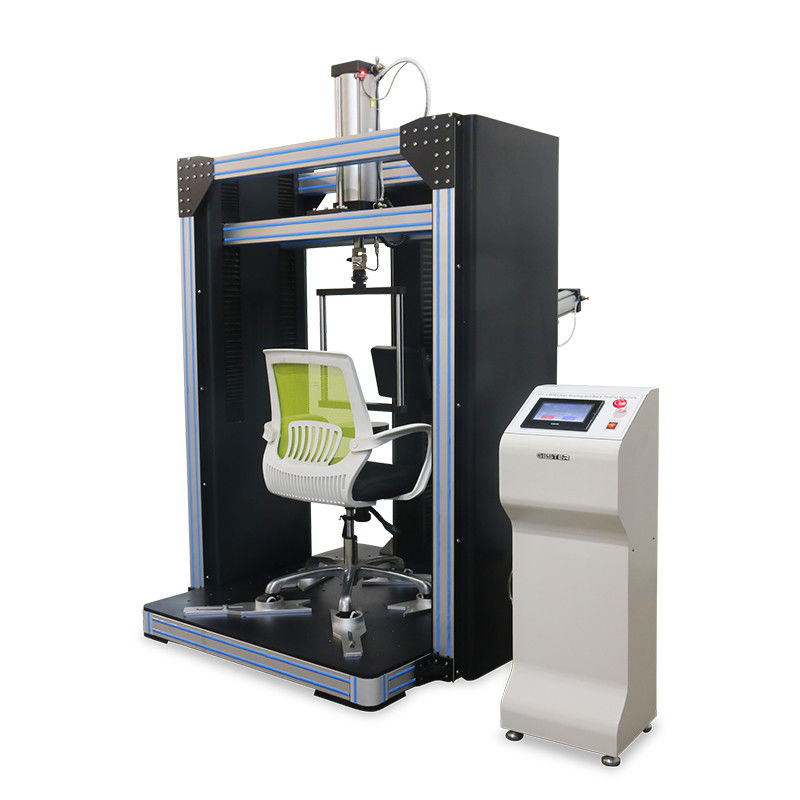

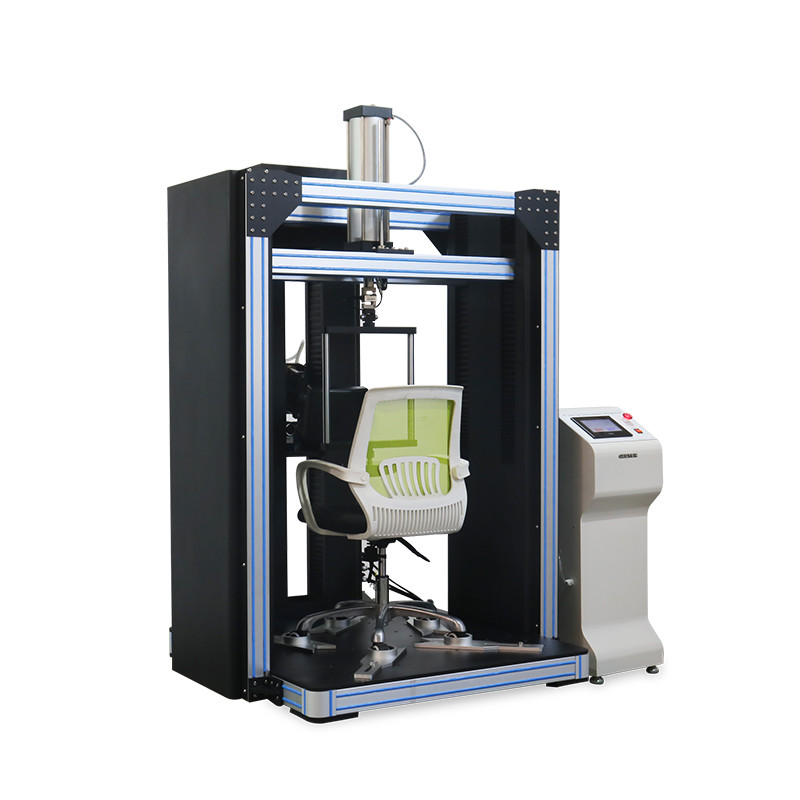

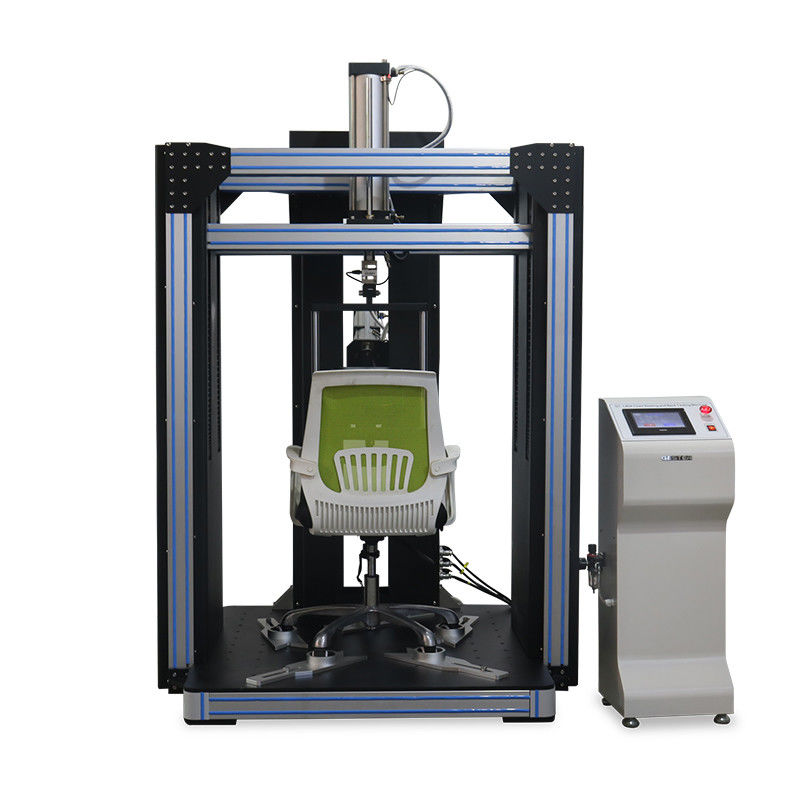

The Chair Seating and Back Testing Machine is equipped with two drive units, and can be individually controlled to repeatedly load the test points of the seat. Through different parameter settings, the machine can complete the following types of test functions on the seat:
Feature: 1. The main structure of the machine is made of aluminum, beautiful and easy to maintain. 2. Servo motor drive, test loading control is more accurate, and the noise is even smaller. 3. Chair Seating and Back Testing Machine: PLC touch screen control makes the operation more convenient. 4. In addition, the machine loading device using electric control movements, more extensive test space.
Standards: EN 1728-2012 Section 6.4, 6.5, 6.7, 6.12, 6.15, 6.16, 6.17, 7.3, 7.4,7.9, 8.2, 8.4.1,8.5 (6.25, 6.26 optional accessories)
|
Model |
GT-LB04-1 |
Working position |
1 |
Seat surface load capacity |
2000N |
backrest load capacity |
2000N |
Seat surface height |
15 - 70cm |
Testing time |
0-99999 ( can be adjustment) |
Control method |
PLC touch screen control |
Lifting method |
Automatic lifting |
Power |
1 phase AC 220V 50/60Hz |
Dimension (WxDxH) |
180x150x200cm |
Weight |
500kg |
Standard Accessories |
GT-LB01-1A Loading point template 1 pc |

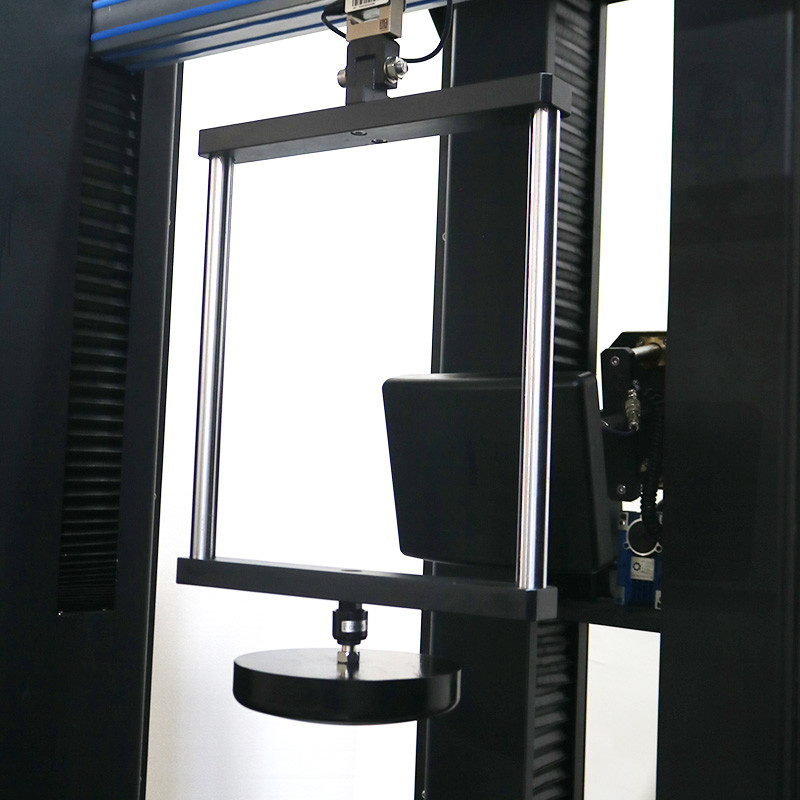

GT-LB01-2A Seat loading pad 1 pc |
|
GT-LB01-3 Smaller seat loading pad 1 pc |
|
GT-LB01-4 Back loading pad 1 pc |
|
GT-LB01-5 Local loading pad 1 pc |
|
Stationary fixture 1 pc |
|
Stops 1 pc |
|
Optional Accessories |
GT-LB01-7 Impact hammer |
GT-LB01-1B Loading point template |
|
GT-LB01-2B Seat loading pad |
|
GT-LB01-10 BIFMA cumulative Weight |
