Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-RC01 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200sets/month |
| Usage: | Protective Clothing Blood Penetration Resistance Test | Warranty: | 1 Year |
|---|---|---|---|
| Power Supply: | 220V 50Hz | Working Position: | 1 Or 4 |
| Advantage: | Factory Price | ||
| High Light: | ASTM F903 Penetration Test Apparatus,Blood Penetration Test Apparatus,ASTM F903 Penetration Testing Machine |
||
|

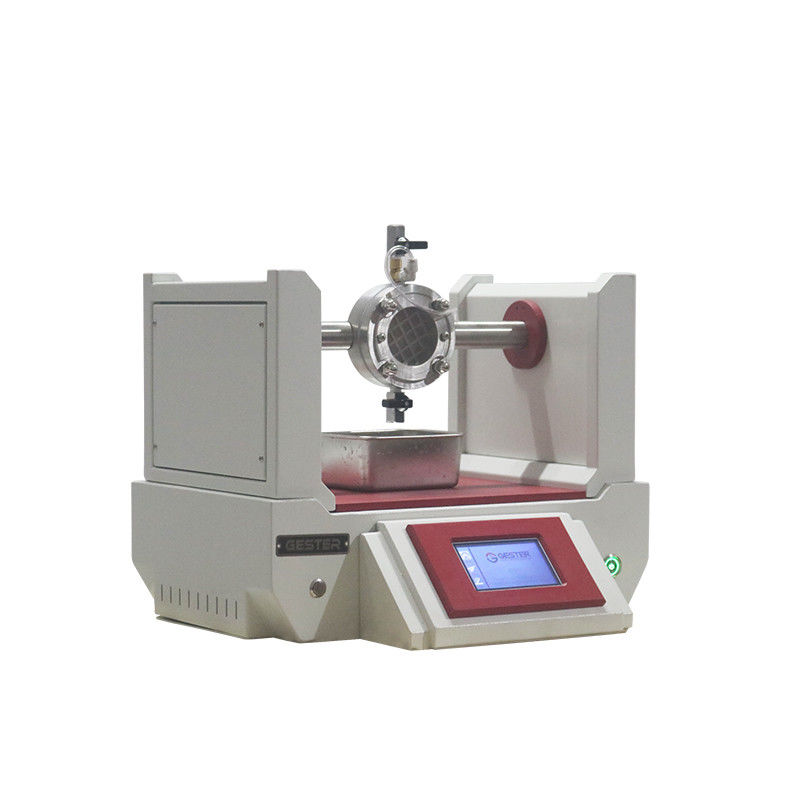

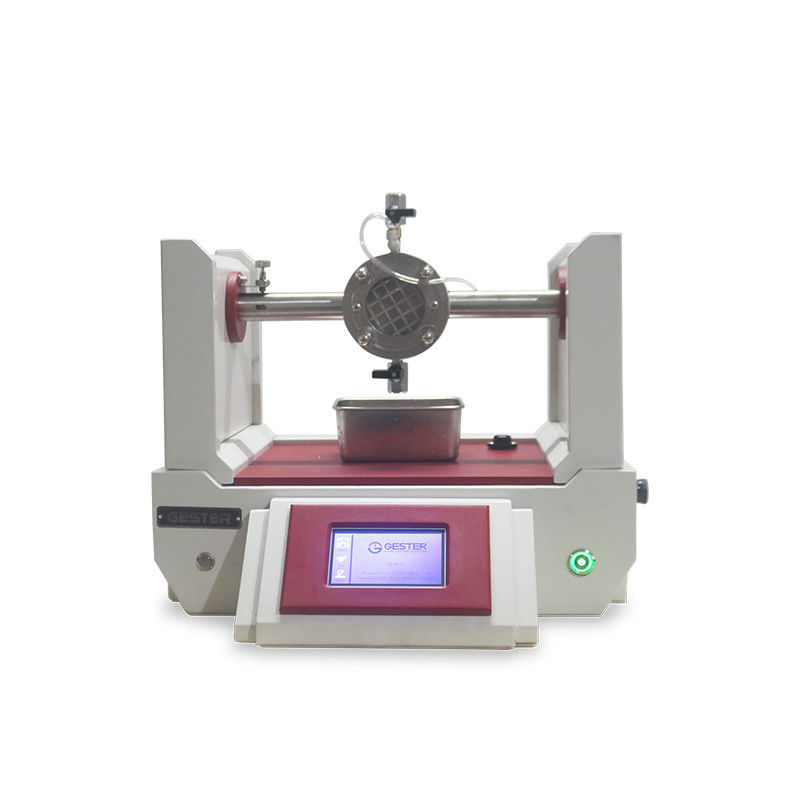

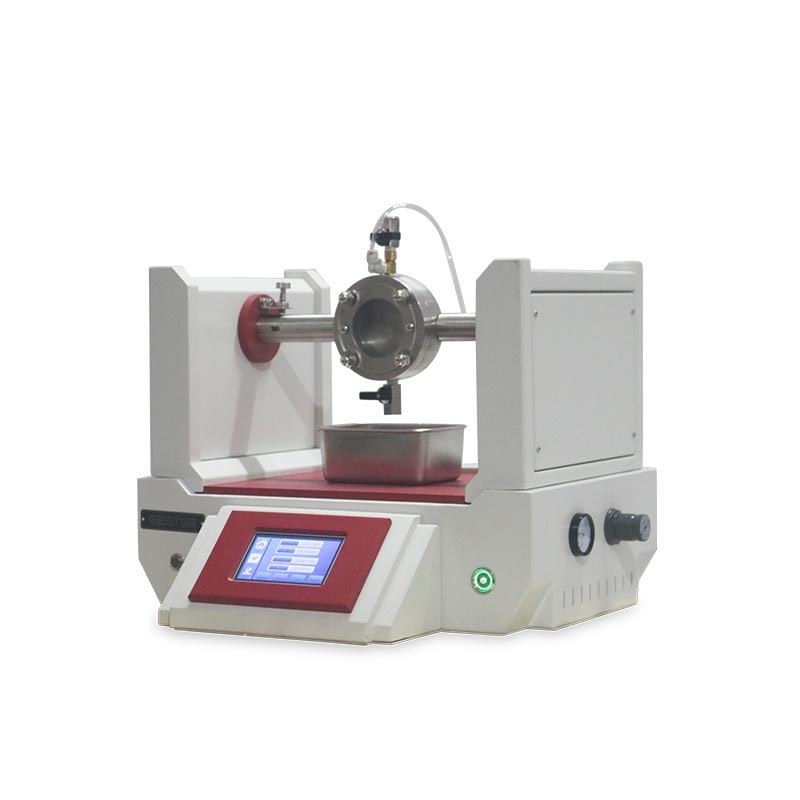

Application: This machine is used to determine the resistance of a protective clothing material to penetration by synthetic blood.
Standards: ASTM F903, ASTM F1670, ASTM F1671/F1671M , YY/T0700, GB19082, ISO16603, ISO 16604, IS 16545, IS 16546
|

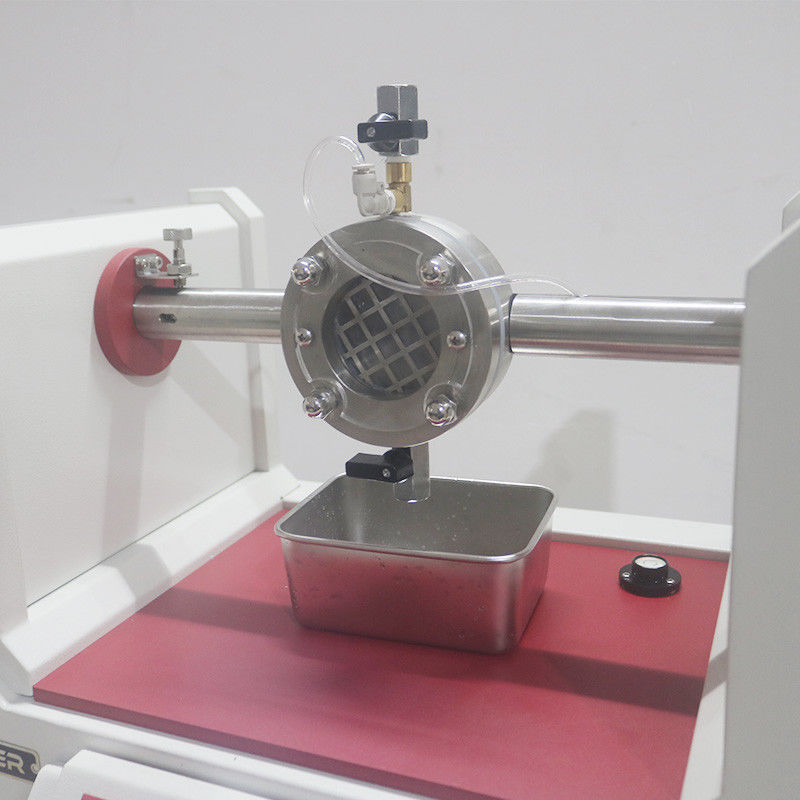

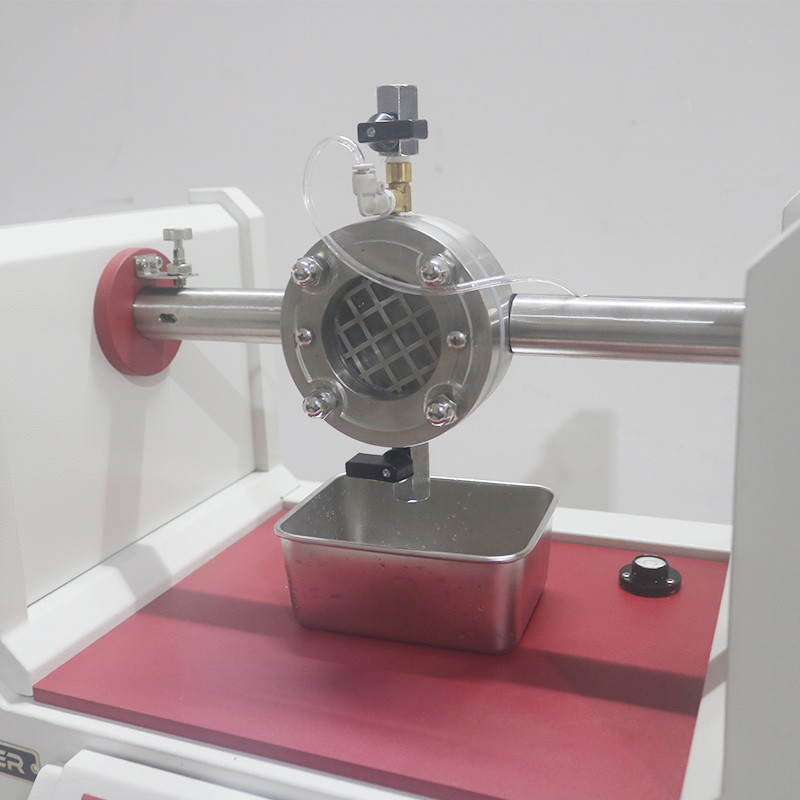

1.With one or four working position, can test one or four specimen simultaneously.
2.Single-chip microcomputer automatic control, automatic timing, automatic alarming once test finished.
3.Protective clothing blood penetration tester with mechanical pressure meter, easy for checking.

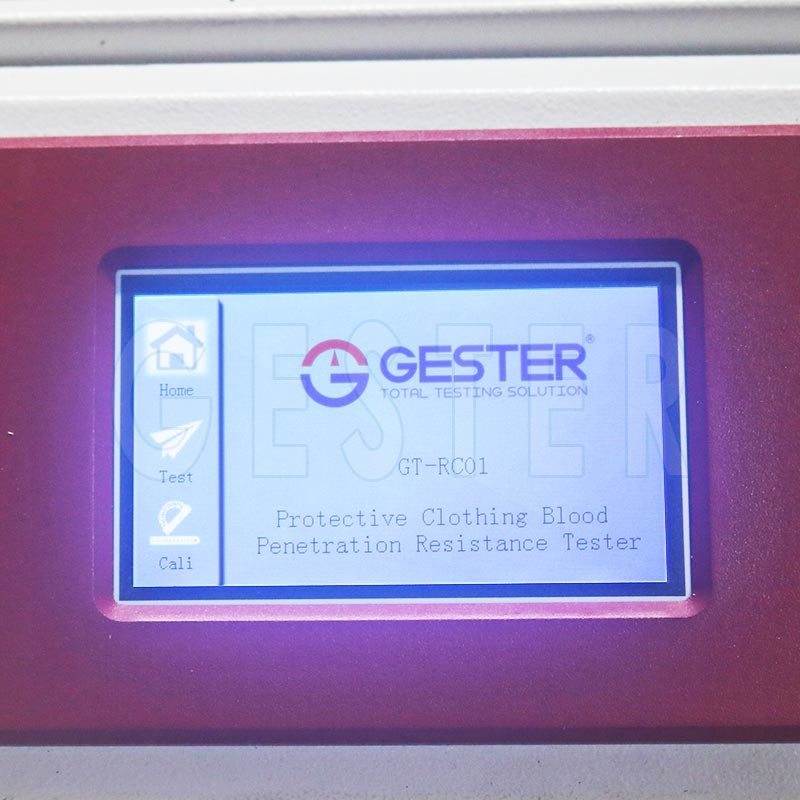

4.With HMI configuration, real-time display of pressurized pressure by touch screen.
5.Each working position is equipped with independent pressure monitored display.
6.Adopt with programmable throttle valve for pressure apply, to make sure the rate of pressurized is not excess 3.5kPa/s.
7.Medical protective clothing blood penetration testing machine using 13.6N.m ratchet wrench for specimen installation, torque force is controllable.
|
Model |
GT-RC01-1 |
GT-RC01-4 |
|
Working position |
1 |
4 |
|
Specimen dimension |
75mmx75mm Compressed cross-section diameter: Φ57mm |
|
|
Retardation mesh |
304 Stainless Steel Open space ≥50% Curve ≤5mm at 14kPa |
|
|
Air supply |
Compression air |
|
|
Fixture torque |
13.6N·m |
|
|
Air supply |
≥0.4kg/cm2 |
|
|
Standard accessory |
GT-SDH-20 Digital Torque Wrench 1set |
|
