Gester International Co., Ltd
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE,ISO |
| Model Number: | GT-C11B |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Product Name: | Digital Fabric Elmendorf Tearing Strength Tester | Warranty: | 1 Year |
|---|---|---|---|
| Standards: | ASTM D1424, APPITA P400, ASTM D1922, ASTM D5734 Etc | Application: | Textiles, Paper, Plastic, Non-woven |
| Power Supply: | Electronic | Incision Length: | 20+/-0.2mm |
| Key Words: | Elmendorf Tearing Strength Tester | Control Mode: | Touch Screen |
| Dimensions: | 490 X 430 X 680mm | Weight: | 50kg |
| High Light: | Digital elmendorf tearing strength tester,ASTM D1424 elmendorf tearing strength tester,ASTM D1424 elmendorf tear strength |
||

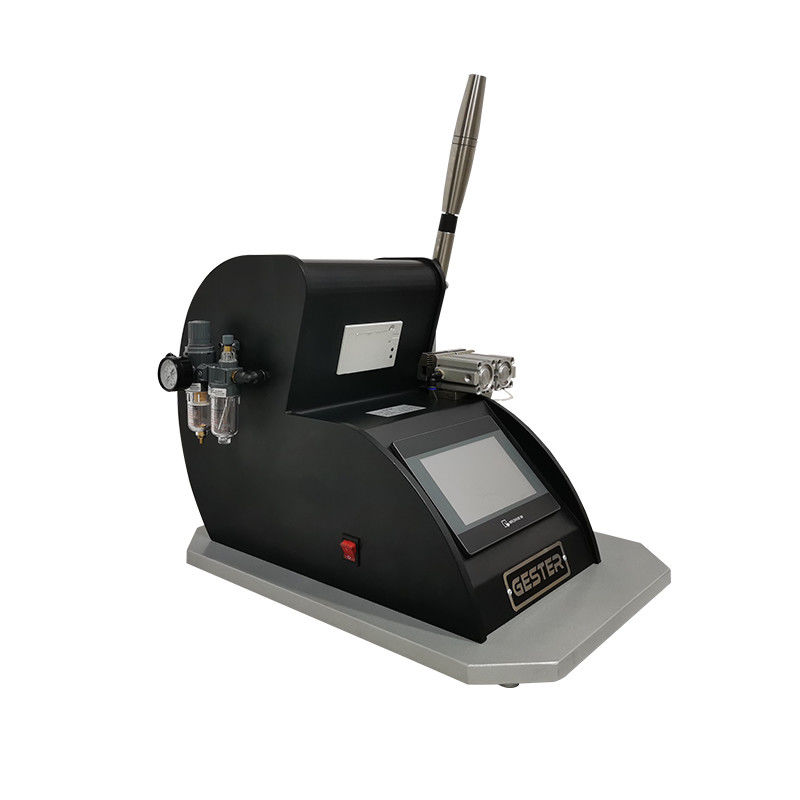

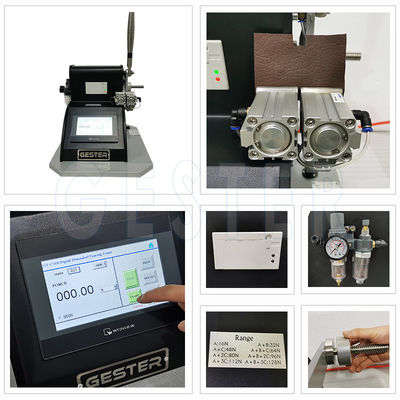

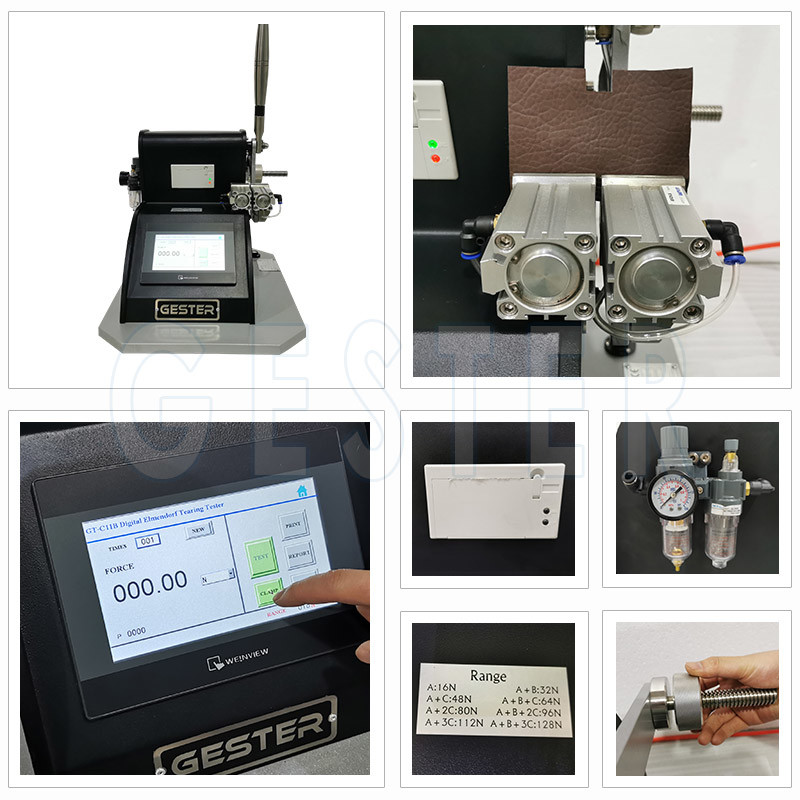

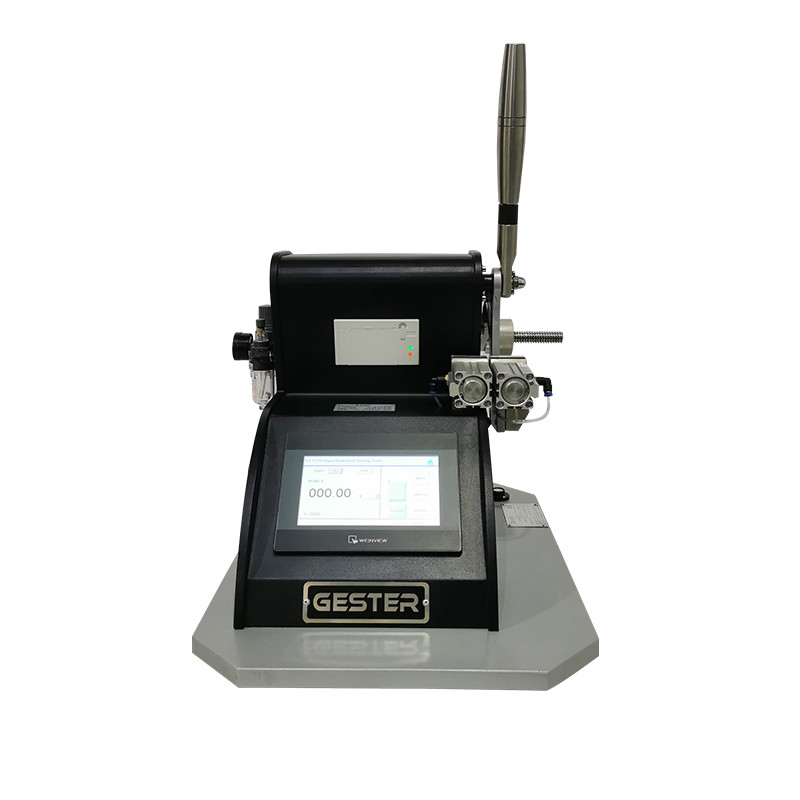

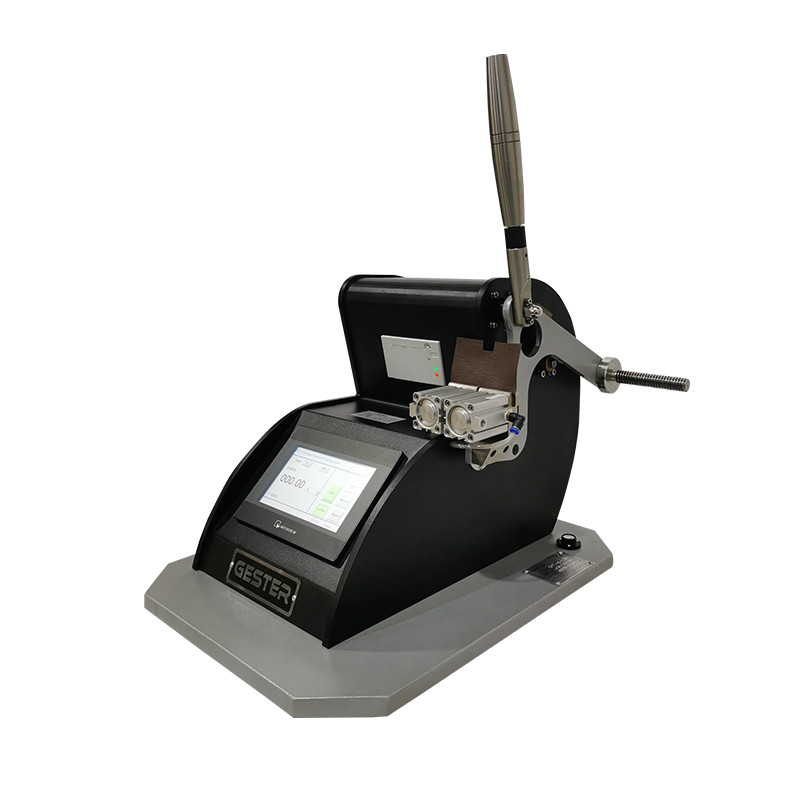

Professional ASTM D1424 Digital Fabric
Elmendorf Tearing Strength Tester
Application
Digital Fabric Textile Elmendorf Tearing Strength Testeris designed for tearing resistance of textile, non-woven fabrics, paper, paper board, thin film, ventilation tape, metal sheet materials and etc.
Feature
1. Advanced calculation methods make sure precision test & good repetition.
2. Microcomputer system, can do auto test, calculate, analysis result, print test report.
3. upload the test data.

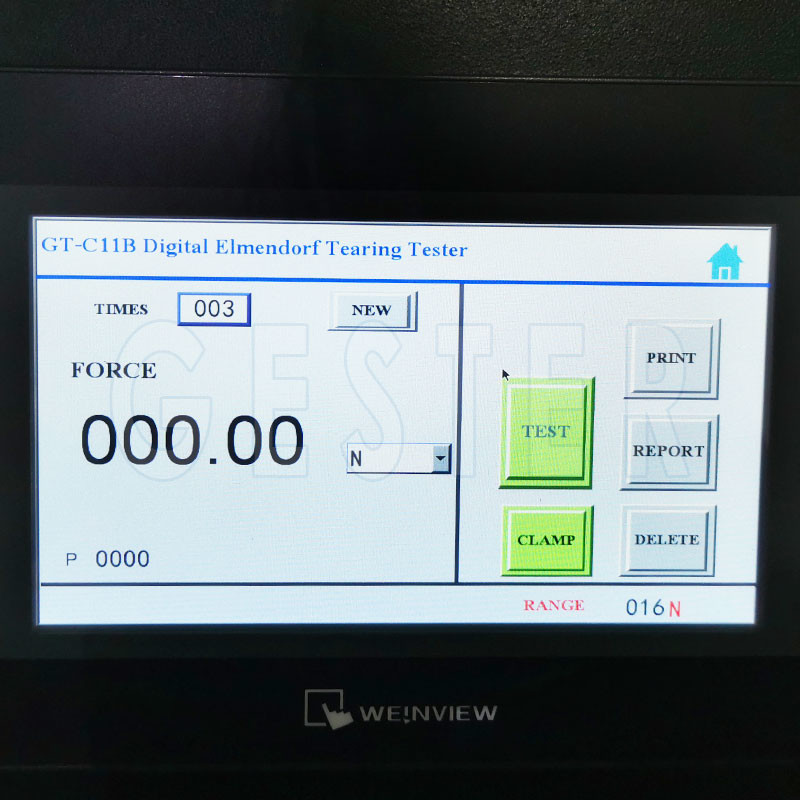

4. Humanity operation system, Chinese and English operation interface with easy & convenience methods.
5. Can look up all the datum & statistical result in mainframe freely.
6. Test unit can convention between N, gf, cN and ibs, suitable for differents standards requirements automatically.
7. lPneumatic sample grips and pendulum bob released to make sure equal clamping force.
8. Cut sample automatically, making sure same shape of notch, reducing operation strength.
Standards
Textile: GB/T3917.1, ASTM D1424, DIN 53862, ISO13937-1, ISO4674-2, ISO9290, M&S P29, NF G07-149
Paper: GB/T455, APPITA P400, ASTM D689, BS 4468, CSA D9,
DIN 53128, EN 21974,ISO 1974, JIS P8116, PAPTAC D9, SCAN P11,
SNV 198482, TAPPI T414, UNI 6444
Plastic: GB/T11999, ASTM D1922, ISO6383-2, JIS K7128-2
Non-woven: ASTMD5734
Key Specification for Desk and Bed
| Range of tearing force |
1600CN, 3200CN, 4800CN, 6400CN, 8000CN, 9600CN,11200CN, 12800CN |
| Accuracy | ≤±0.2%F·S |
| Incision length | 20+/-0.2mm |
| Rip length | 43mm |
| Sample clamping methods | Pneumatic clamp |
| Power supply | AC 220V 50/60HZ 100W |
| Dimensions | 490 x 430 x 680mm (L x W x H) |
| Weight | 50kg |
Accessories
|
Standard accessories
|
1pc | Load A |
| 1pc | Load B | |
| 3pcs | Load C | |
| 1pc | Sample template | |
| 1pc | English operation software | |
| 1pc | Cable connect with PC |
