Place of Origin: | CHINA |
---|---|
Brand Name: | GESTER |
Certification: | ISO 9001, UKAS, CE |
Model Number: | GT-KB05A |
Minimum Order Quantity: | 1 set |
Packaging Details: | wooden packaging |
Delivery Time: | 10-30 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets/month |
Testing Machine: | Ross Flexing Resistance Tester | Warranty: | 1 Year |
---|---|---|---|
Test Object: | Rubber, Shoe Sole, PVC, PU And Etc. | Test Positions: | 6 Sets, Can Test 12 Pcs In One Go |
Counter: | LCD, 0~99,999,999 | Standards: | ASTM D1052, SATRA TM60, BS5131 : 2.1 |
Calibration Certificate: | ISO 9001, UKAS, CE | Item: | Test The Damage Of Sample By Continuously Stretching, Bending |
Power: | Electronic | Weight: | 60kg |
High Light: | ASTM D1052 ross flex tester,ASTM D1052 ross flexing tester,footwear ross flex tester |

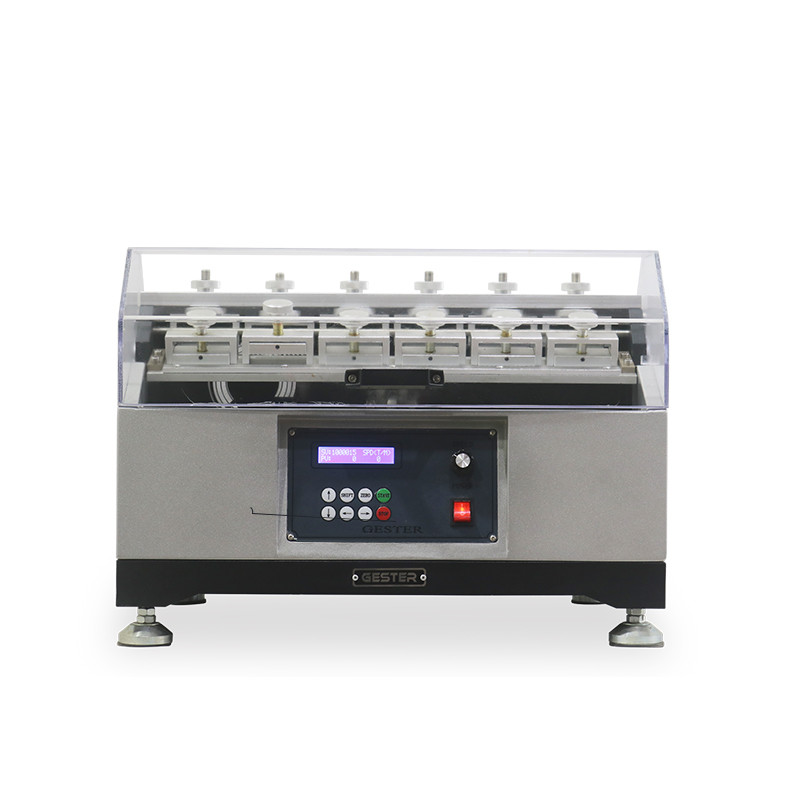

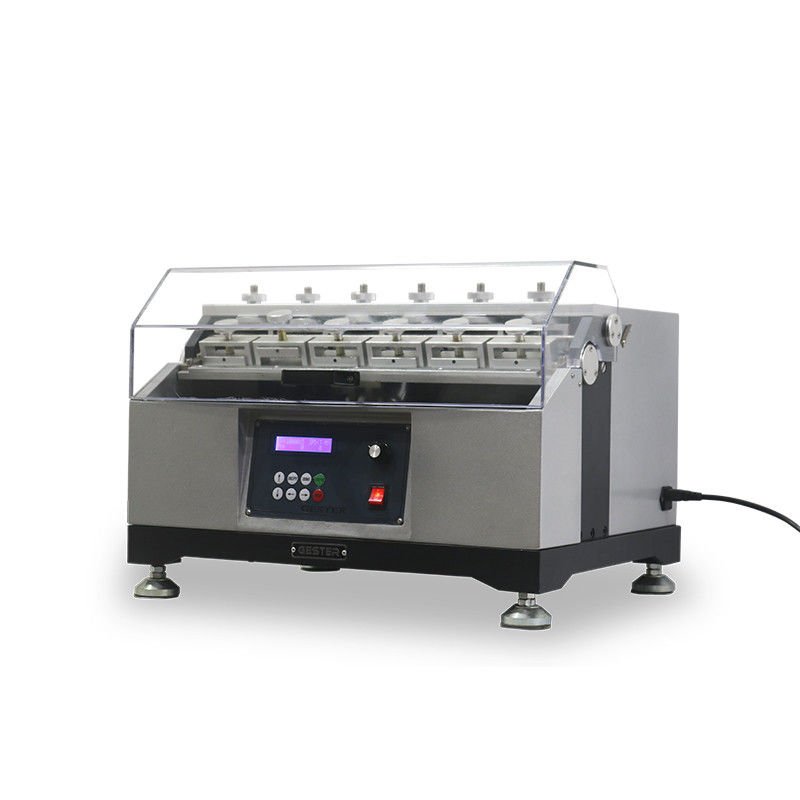

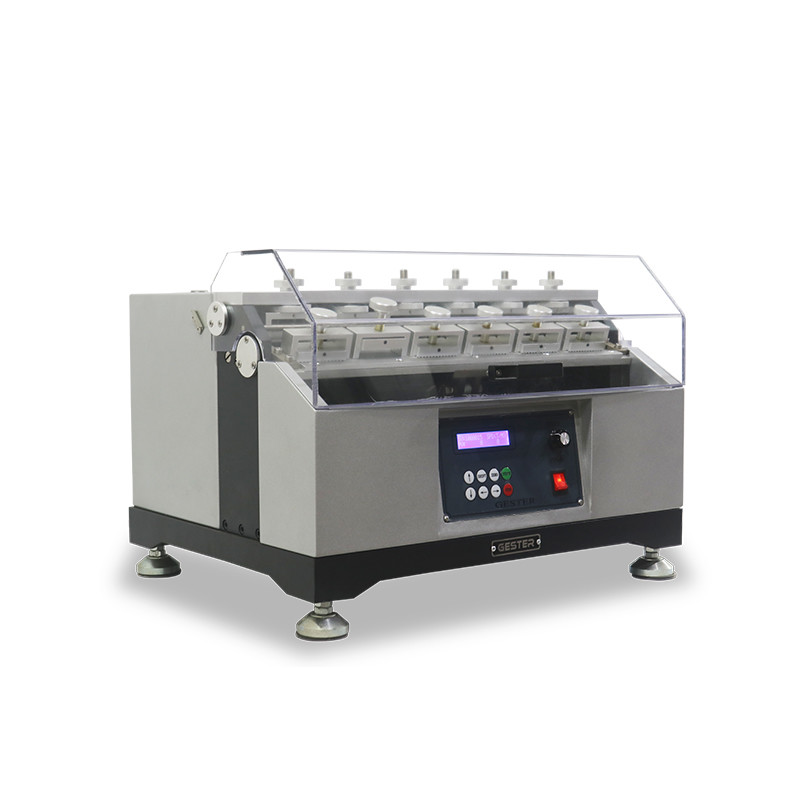

ASTM D1052 Automatic Footwear Ross Flexing Tester For Sole Test
Applications
To determine rectangular bending test of rubber products, shoe soles, PU, PVC, TPR foam and other materials. And inspect its degree of damage, cracking and reduced decline by continuously stretch and bending.
Features
1. Body paint baking processed, easy for maintenance.
2. Fixture in aluminum material and surface processed with oxidation.
3. Equip with digital counter, automatically stop after test finished.
Key Specifications
Model | GT-KB05A | |
Standards | ASTM D1052 |
SATRA TM60, BS5131 : 2.1, GB 20265, ISO 5423, ISO4643 HG/T2411, ISO 20344 Section 8.5 |
Bending speed | 100± 3 cpm | 60± 5 cpm |
Specimen dimension | 152 * 25mm | 150±5 * 25±2mm |
Fixture | 6 sets, can test 12pcs samples | |
Bending angle | 90±2° | |
Winding shaft radius | 5± 0.3mm | |
Counter | LCD, 0~99,999,999 | |
Dimension(W×D×H) | 80×42×45cm | |
Weight (about) | 60 kg | |
Power supply | 1∮AC 220V 50/60HZ 3A |
Accessories
Standard accessories | 1pc | Chisel cutter(2.5mm) for ASTM D1052 Test |
1pc | Chisel cutter(2mm) for other standard test above mentioned | |
1pc | Power line |
