Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-C31B |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Product Name: | Spray Rating Tester | Usage: | Test Resistance Of Fabric To Surface Wetting By Water |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 10kg |
| Power Supply: | 220V 50Hz | Service: | Installation And Training Service |
| High Light: | ISO 4920 Protective Clothing Testing Equipment,AATCC Spray Rating Tester,ISO 4920 Spray Rating Tester |
||
|

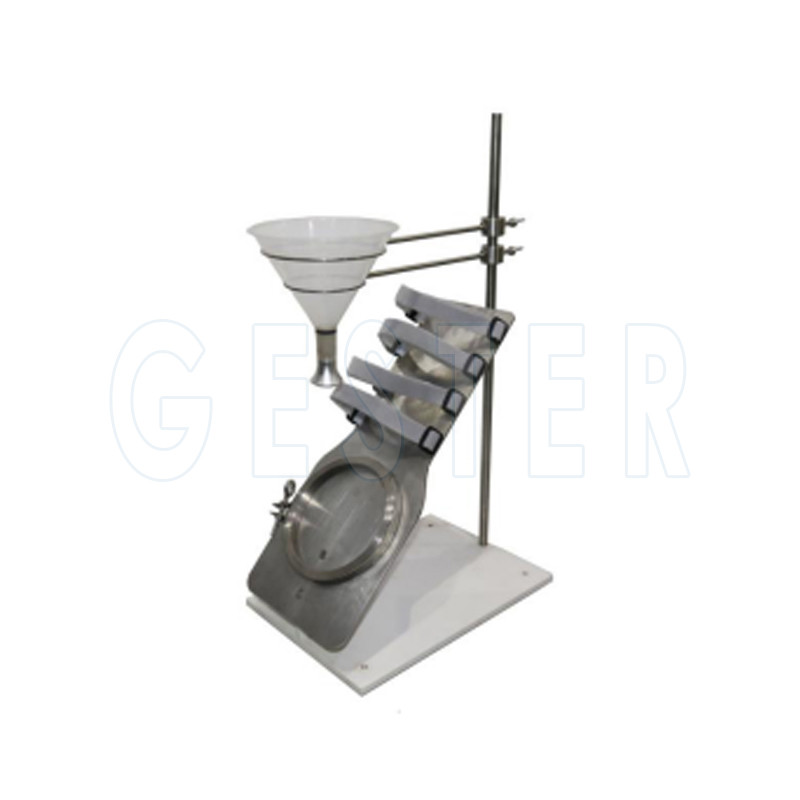

Application: Spray Rating Tester can performs a shower test to determine the resistance of fabric to surface wetting by water. Spraying quantitative distilled water on the specimen (at a 45 degree angle and 150 mm below) with standard nozzle. Then contrast and evaluate the specimen surface with the standard cards. Beside, this device can also used for whole shoes test.
Standards: AATCC 22 , ISO 4920 |
1.Made by stainless steel, the instrument is durable.
2.Special designed specimen ring clamp, operate easy and keep the result more objective.
3.The spray nozzle is a high precision machined component, ensuring the water flow complies exactly with the standards.
|
Funnel capacity |
500ml |
|
Specimen gradient |
45degree |
|
Distance between nozzle and specimen center |
150mm |
|
Spraying quantity |
250ml |
|
Dimensions |
340x220x580mm (L x M x H) |
|
Weight |
10kg |
|
Standard accessories
|
1pc |
Drip tray |
|
1pc |
Measuring glass |
|
|
1pc |
Nozzle |
|
|
1pc |
Specimen fixture |
|
|
Optional accessories |
Optional |
AATCC spray test rating cards |
