Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-C26A |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Power: | AC220V | Usage: | Fabric Testing Machine |
|---|---|---|---|
| Product Name: | Hydrostatic Head Tester For Textile | Color: | Black |
| Advantage: | Professional After-sales Team | Warranty Period: | 1 Year |
| High Light: | ISO 811 Hydrostatic Head Tester,200kpa Hydrostatic Head Tester,Hydrostatic Head Fabric Testing Machine |
||

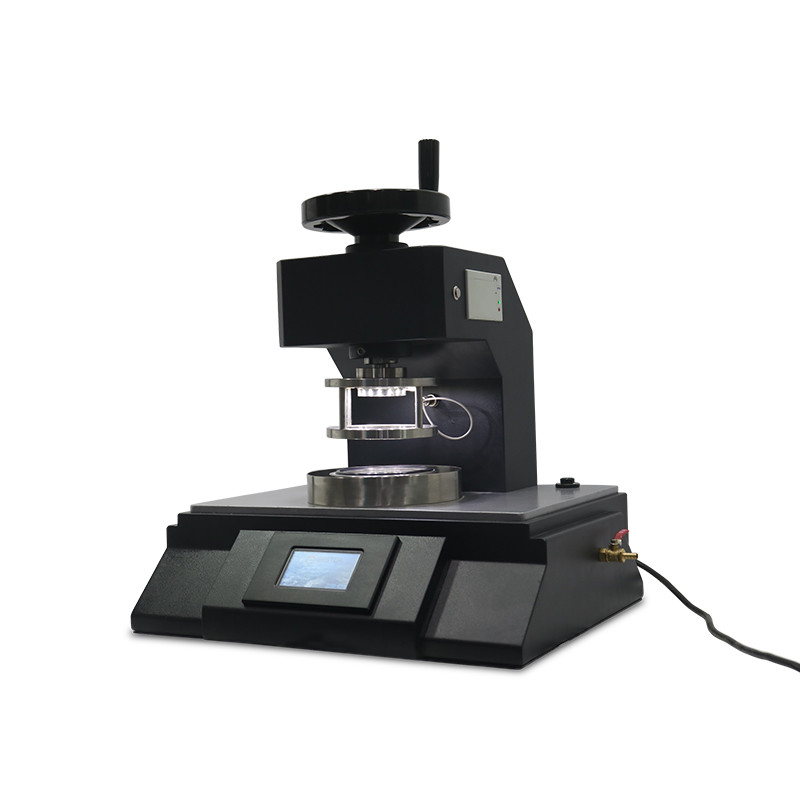

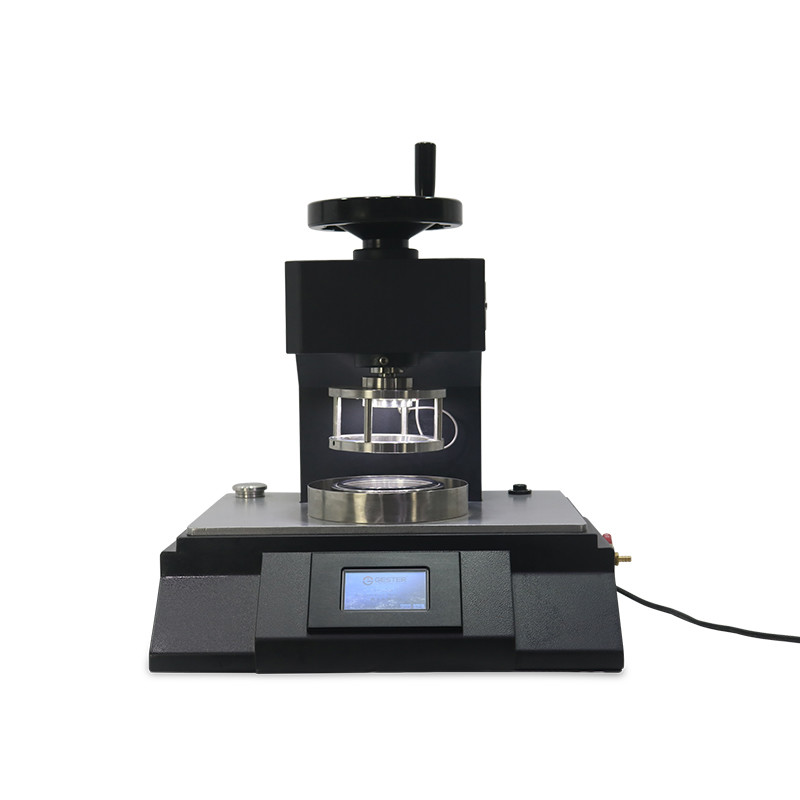

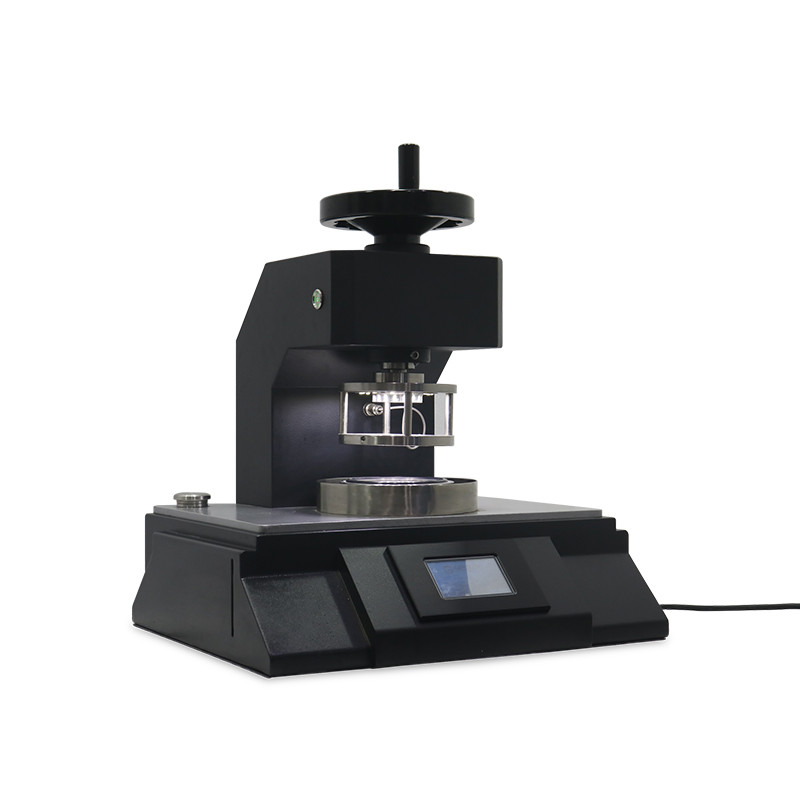

Hydrostatic Test for Textile GT-C26A
|
Application: Digital Hydrostatic Tester is used to testing the waterproof properties of fabrics through waterproofing work such as canvas, coated fabrics, hood fabric, tarpaulin, rain-proof fabrics and geotextile.Standards: AATCC 127 Option 2, ISO 811, ISO 1420, GB/T4744, FZT01004 , DIN53886 , JIS L1092, EN20811, EN 13726-3 |
| Model | GT-C26A |
| Testing range | 500pa-200kpa |
| Water pressure increase rate | 1kpa-30kpa |
| Accuracy | 0.2%F.S |

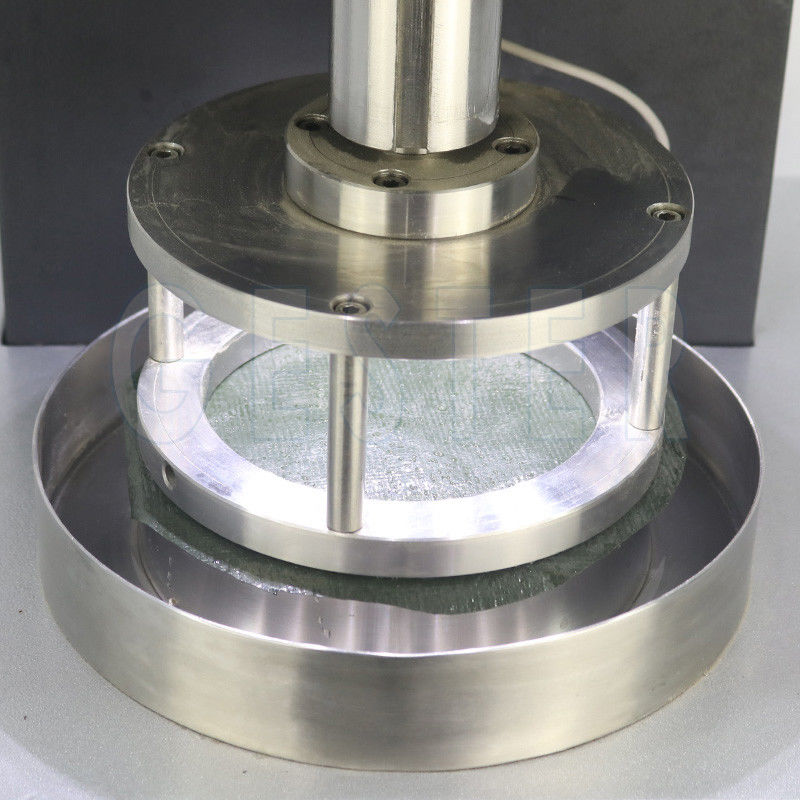

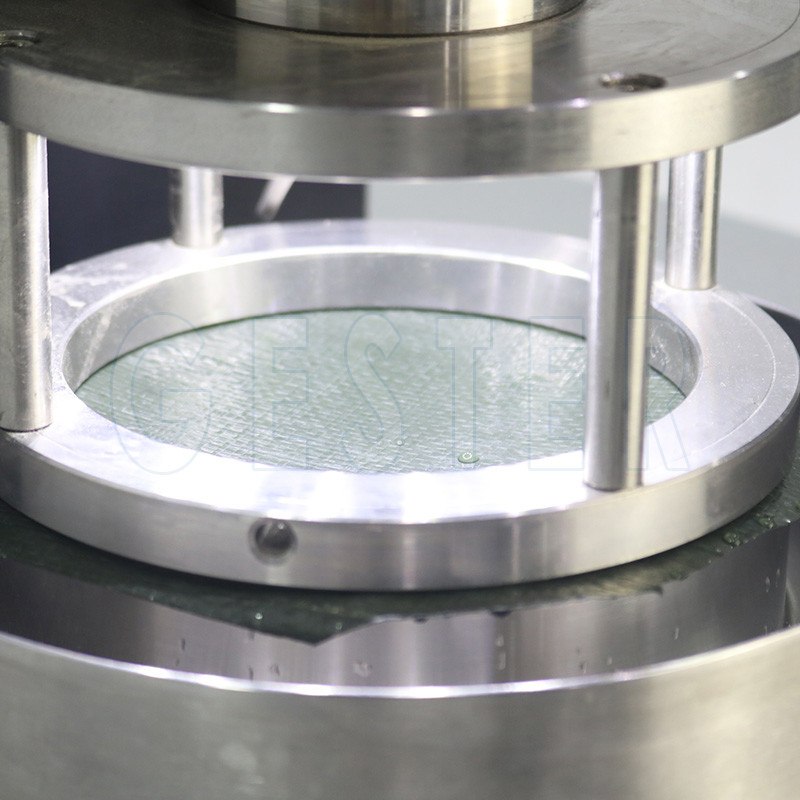

| Specimen test area | 100cm2, or 7.8cm2 (Option) |
| Testing mode | Supercharge method, leaking method (set the pressure and time) |
| Testing unit | pa , mmHg , cmH2O |
| Power supply | AC 220V 50/60HZ |
| Dimension | 600 x 450 x 640mm (L x W x H) |
| Weight | 60 kg |
Accessories
| Standard accessories | 1Set | 100cm2 testing sets |
| 1Set | Calibration plate | |
| 2pcs | Rubber ring | |
| 1pc | Power line | |
| Optional accessories | Optional | Fixtures of other testing range |
