Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-C31 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Power: | AC220V | Usage: | Resistance Of Fabric To Surface Wetting By Water |
|---|---|---|---|
| Product Name: | Spray Rating Tester | Warranty: | 12 Months |
| Service: | Online Support, Installation And Training | Advantage: | Factory Direct Sale |
| High Light: | 45 Degree Spray Rating Tester,ISO 4920 Spray Rating Tester,Spray ISO 4920 Textile Testing Machine |
||

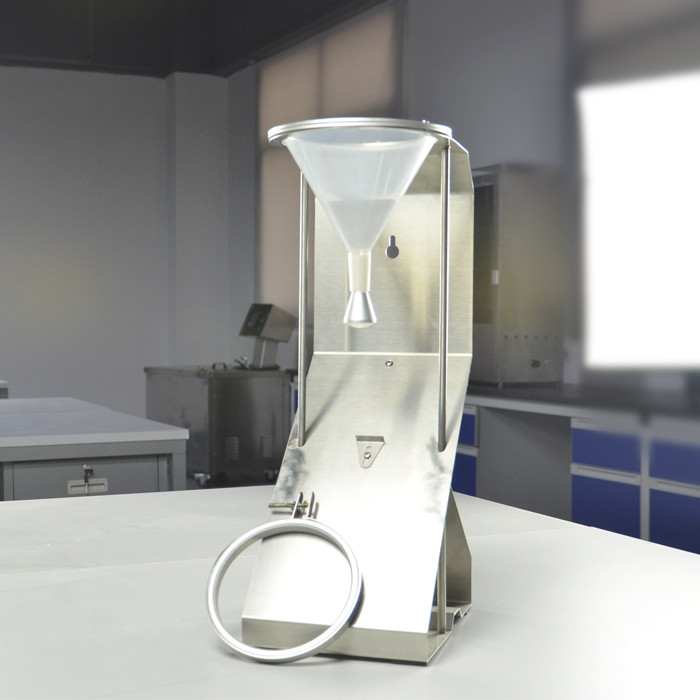

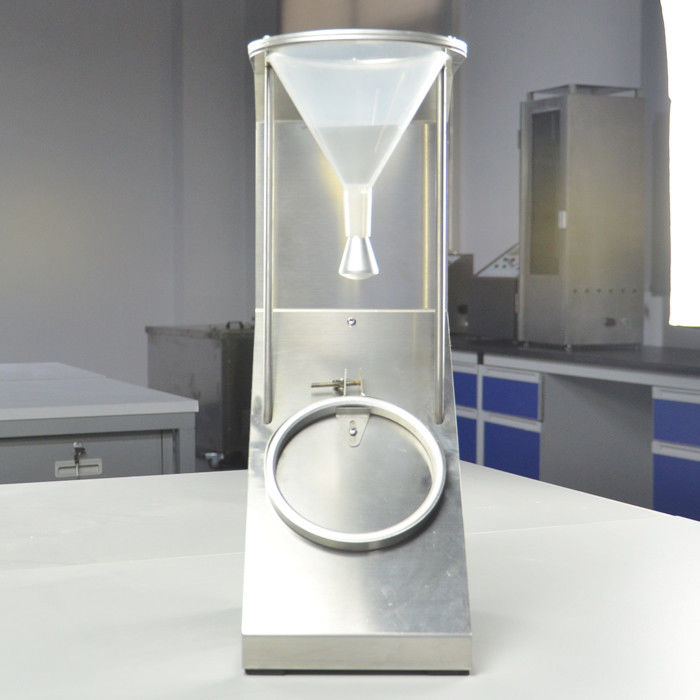

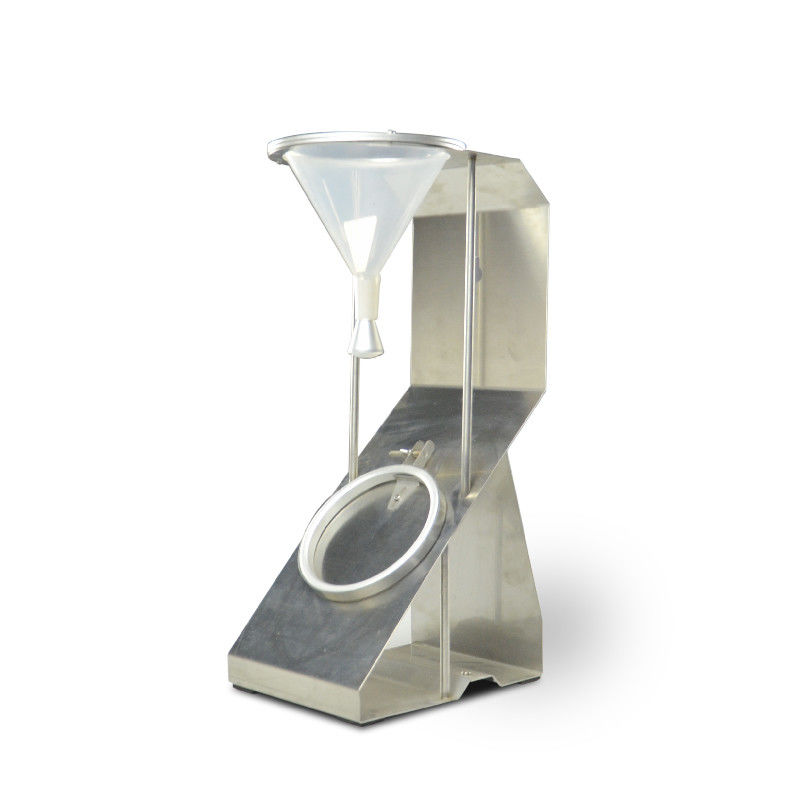

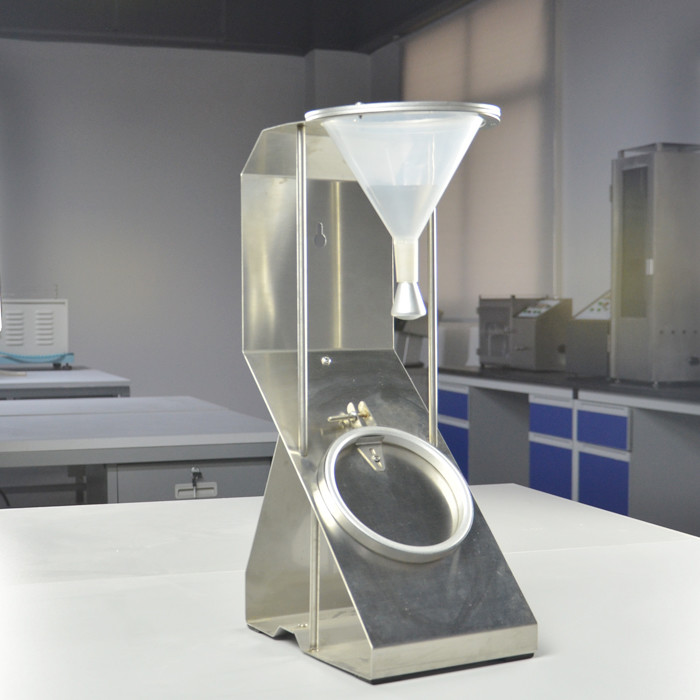

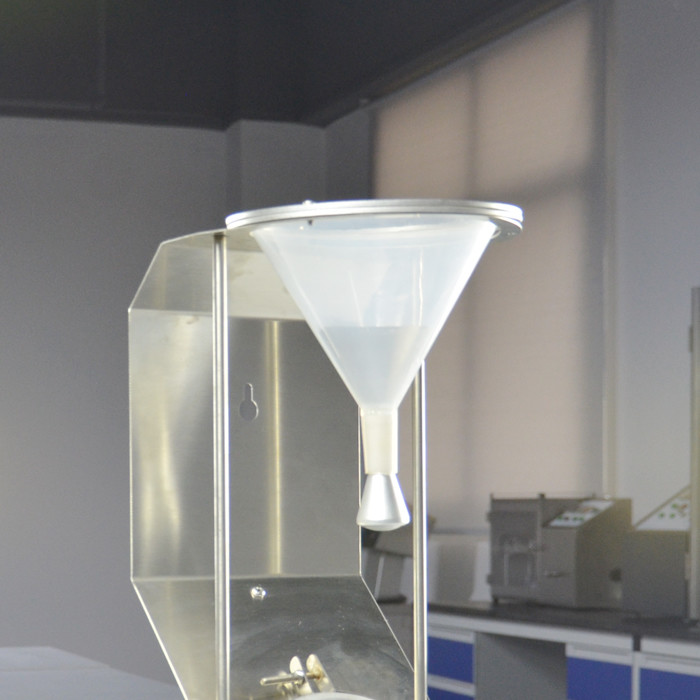

AATCC 22 Spray Rating Tester for Textile
|
Application: Spray Rating Tester can performs a shower test to determine the resistance of fabric to surface wetting by water. Spraying quantitative distilled water on the specimen (at a 45 degree angle and 150 mm below) with standard nozzle. Then contrast and evaluate the specimen surface with the standard cards.Standards: AATCC 22 ISO 4920 |
1. Made by stainless steel, the instrument is durable.
2. Special designed specimen ring clamp, operate easy and keep the result more objective.
3. The spray nozzle is a high precision machined component, ensuring the water flow complies exactly with the standards.
| Funnel capacity | 500ml |
| Specimen gradient | 45degree |
| Distance between nozzle and specimen center | 150mm |
| Spraying quantity | 250ml |
| Dimensions | 200x250x500mm (L x M x H) |
| Weight | 6kg |
Accessories:
| Standard accessories | 1pc |
Drip tray |
| 1pc |
Measuring glass |
|
| 1pc |
Nozzle |
|
| 1pc | Specimen fixture | |
| Optional accessories | Optional | Spray test rating cards |
