Place of Origin: | China |
---|---|
Brand Name: | GESTER |
Certification: | CE, ISO |
Model Number: | GT-C35 |
Minimum Order Quantity: | 1 set |
Packaging Details: | wooden packaging |
Delivery Time: | 10-30 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 set/month |
Power: | AC220V | Usage: | Measuring The Vertical Flame Spread For Textile |
---|---|---|---|
Product Name: | Vertical Flammability Chamber | Warranty: | 12 Months |
Service: | Online Support, Installation And Training | Advantage: | Factory Direct Sale |
High Light: | ASTM D6413 Vertical Flammability Tester,Height 885mm Vertical Flammability Tester,ASTM D6413 Vertical Flammability Chamber |

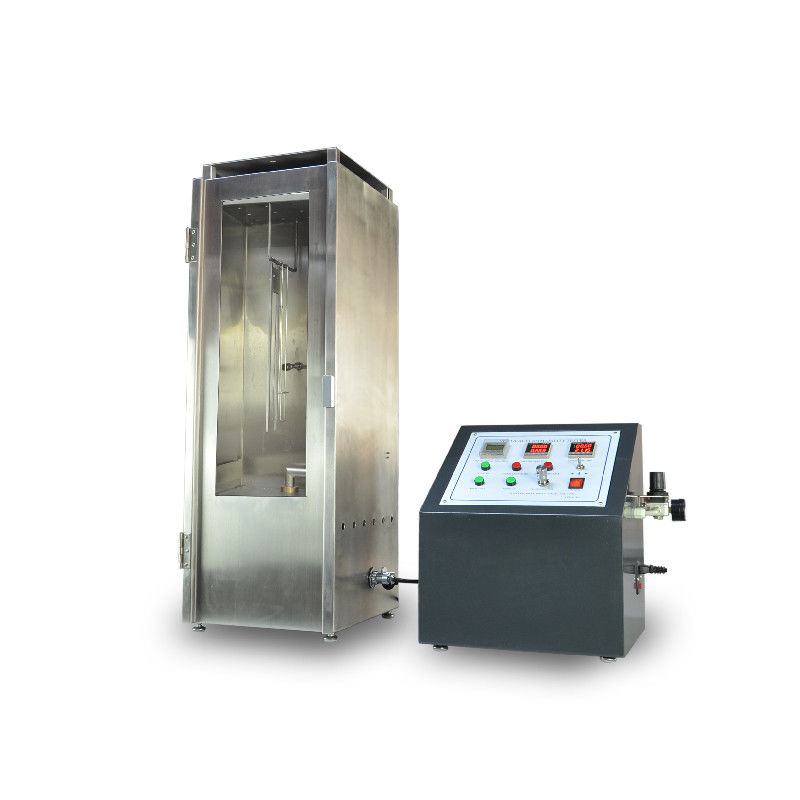

ASTM D6413 Vertical Flammability Test Chamberabi
lity ChamVertical Flammability Chamber
Application: Flammability Chamber is used to measuring the vertical flame spread for children’s sleepwear, fabrics, other textile materials or resilient filling materials used in upholstered furniture of textiles.Different accessories, burners and configurations are required for different standards. Please specify standards(s) required.
Feature:
|
Model | GT-C35A-1 | GT-C35A-2 | GT-C35A-3 | ||
After flame time | 0-999.9s resolution 0.01s | ||||
After glow time | 0-999.9s resolution 0.01s | ||||
Burning time | 12s(adjustable) | ||||
Nozzle | Inner diameter | 11mm | 10 -0.5 mm | ||
Angle | 65 degree | 90 degree | |||
Dimension of specimen holder |
Out frame | 422*89 *2mm | 442*76*12.5 mm | Flexible Foam holder | |
Inner frame | 356 × 51 mm | ||||
Testing flame height | 40±2mm | 38mm | |||
Distance between nozzle top and specimen | 17mm | 19mm | |||
Tearing weights |
54.4g, 113.4g, 226.8g, 340.2g |
100g, 200g, 300g, 475g |
no | ||
Power supply | AC 220V 50/60HZ | ||||
Dimensions | 600 x 450 x 885mm (L x W x H) | ||||
Weight | 44 kg | ||||
Standards |
CFR1615 CFR1616 GB/T 5455 |
ASTM D6413 | CALIF TB-117 |
Accessories:
Standard accessories | 4pcs | Tearing weights |
1pc | Sample holder | |
1pc | Flame measuring scale | |
1pc | Power line | |
Optional accessories
|
Optional | Φ 11mm Nozzle |
Optional |
Φ10mm Nozzle |
|
Optional | CFR1615,1616 holder and tear weights | |
Optional | ASTM D6413 holder and tearing weights | |
Optional | CALIF TB-117 holder |
