Place of Origin: | China |
---|---|
Brand Name: | GESTER |
Certification: | CE, ISO |
Model Number: | GT-MB01 |
Minimum Order Quantity: | 1 set |
Packaging Details: | wooden packaging |
Delivery Time: | 10-30 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200sets/month |
Power: | 220 /110 V 50/60 Hz 2 A | Usage: | Toy Sharp Edge Testing/ Toy Testing Machine |
---|---|---|---|
Warranty: | 1 Year | Application: | Toys,toys And Toy Materials |
Technology: | Professional | Gester: | SGS Audited Supplier,TUV |
High Light: | ASTM F963 Toys Testing Equipment,12V 50HZ Toys Testing Equipment,ASTM F963 Sharp Edge Tester |

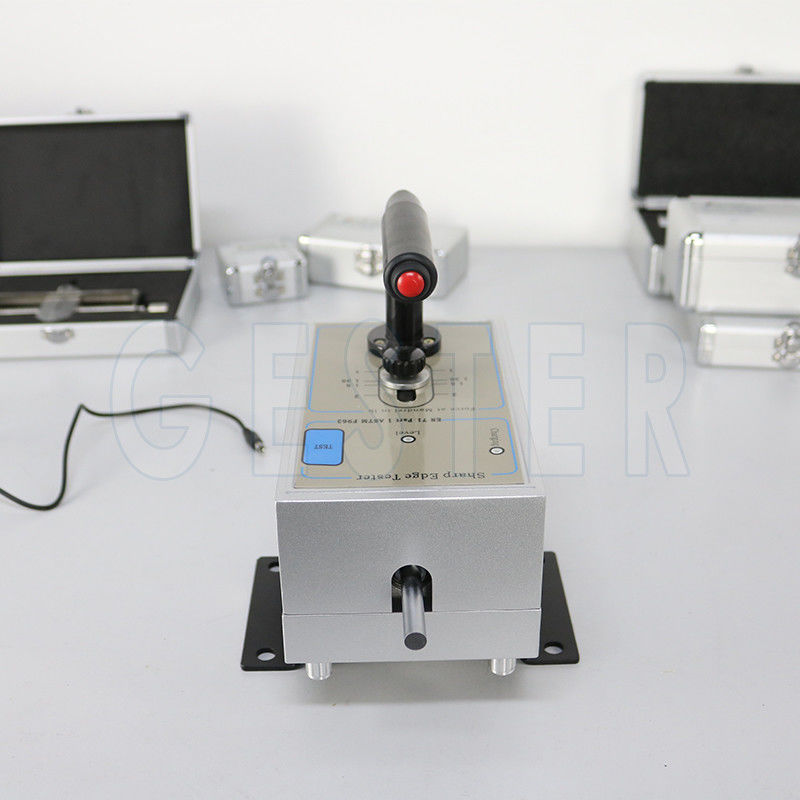

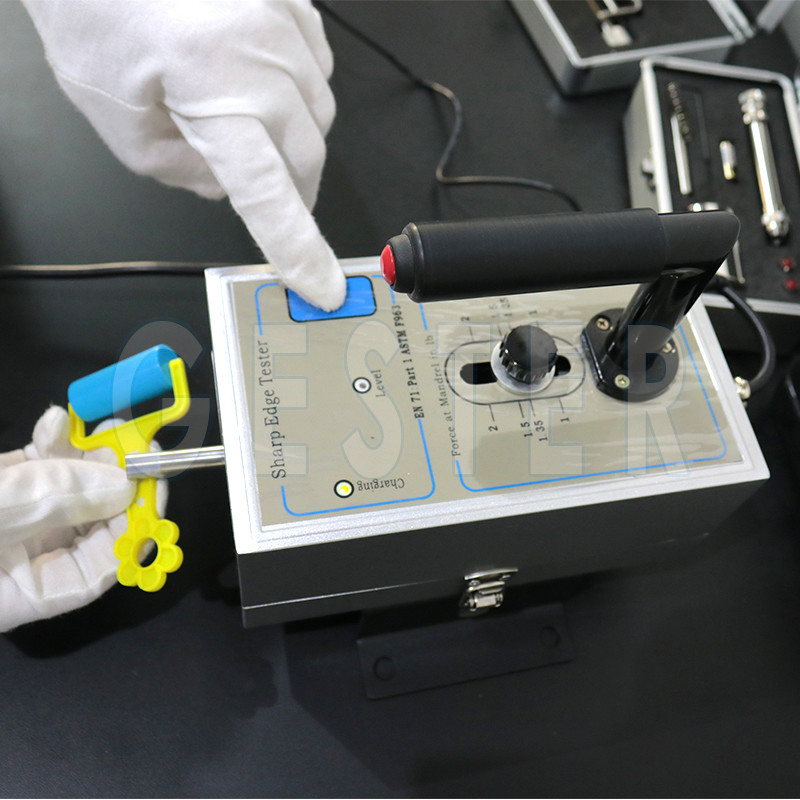

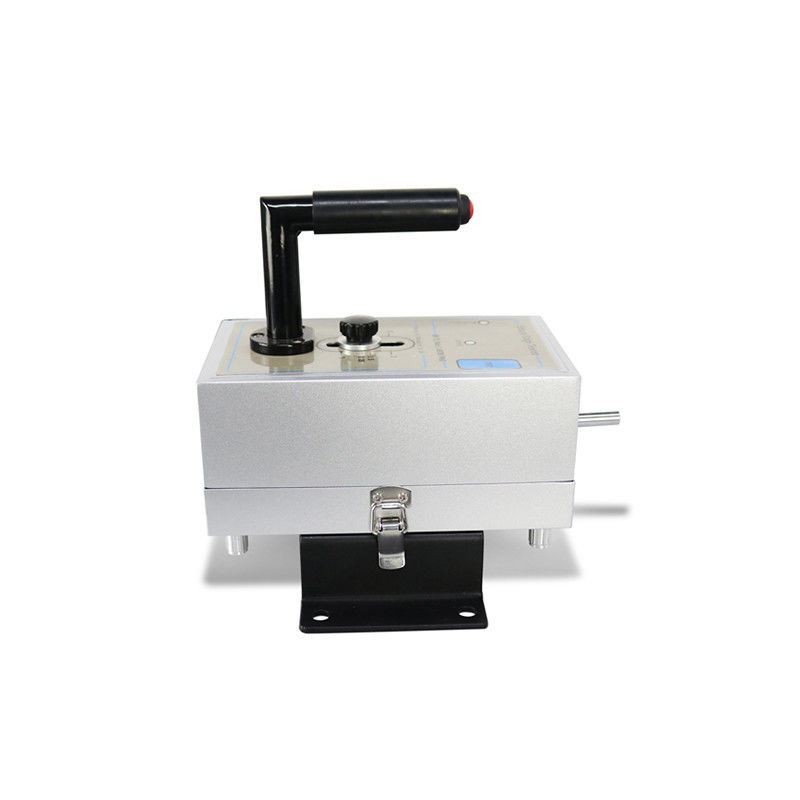

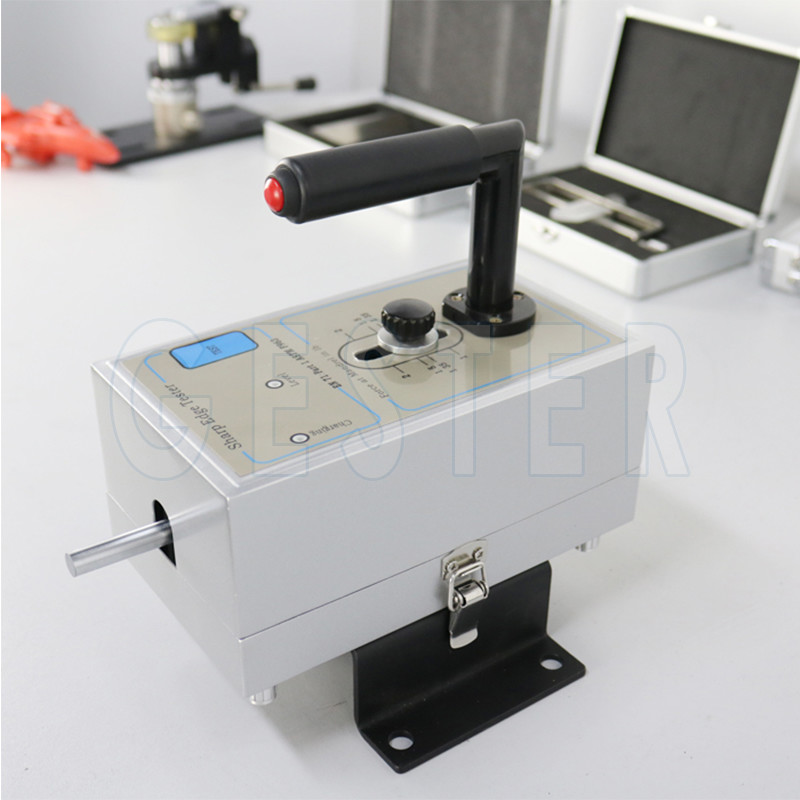

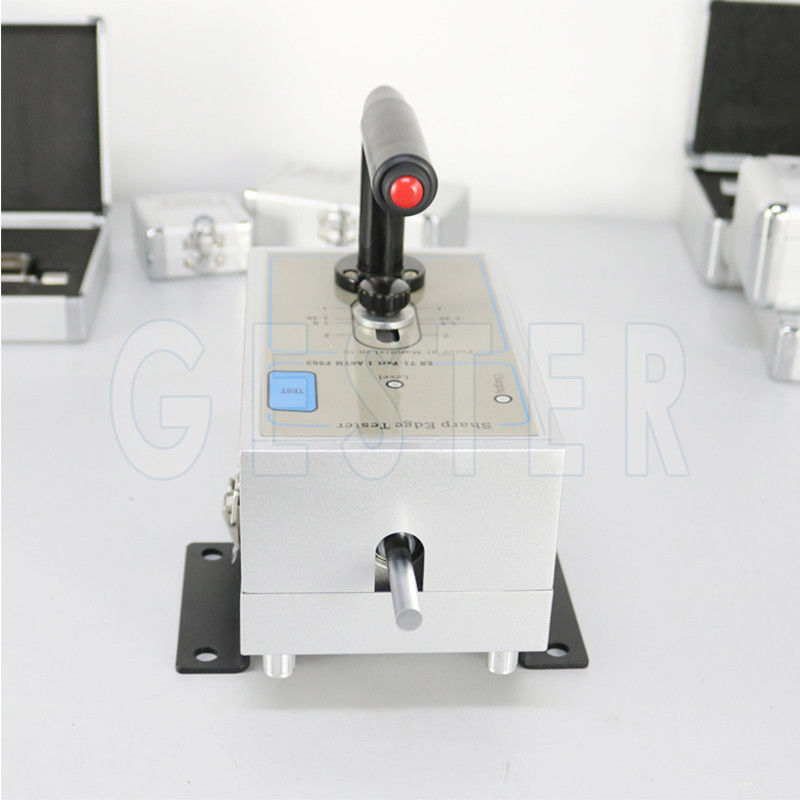

Sharp Edge Tester GT-MB01
Application:
Sharp Edge Tester used to determine that metal or glass edges on toys and other articles intended for use by children under 8 years of age, and such edges exposed in normal use or as a result of reasonably forseeable damage or abuse of such toys and articles, present a potential risk of injury by laceration or avulsion. Sharp Edge Tester Standards:
EN 71-1 ASTM F963 16CFR 1500 ISO 8124-1 GB 6675-2
|
1. The especially powerful value photoelectricity induction instruction function guarantees the test strength value fixed in 1. 35 pounds all long, and avoid the errors caused by different angle observation. 2. The especially powerful value external adjustment function, may extremely conveniently adjust the actual strength value to be consistent with the demonstration value, guarantee strength value calibration accuracy. 3. With 1.35 pounds calibration device, it can calibrate and adjust test force value at any time. 4. Test shaft is made of steel to and hardened processing The surface should be smooth The max force vertically applied to the axis when testing shoud be 1.35 LB. 5. Test shaft in its 75% turn routine, the tangent speed is 1.00±0.08 inches per second. 6. The test tape is pressure-sensitive PTFE (TFE) high temperature electrical insulation tape. |
Model | GT-MB01 |
Mandrel Diameter | (9.53 ± 0.12) mm |
Mandrel Hardness | ≥40HR |
Rotate Speed | 1.00±0.08 inches per second |
Power Supply | 12V 50HZ |
Dimensions | 290x190x100 mm (LxWxH) |
Weight | 4 kg |
Standards |
EN-71-1 section 8.11 ASTM F963 section 4.7 16CFR 1500 section 49 ISO 8124-1 section 5.8 GB 6675-2 section 5.8 |
