Touch Screen EN 12770 DIN Abrasion Tester For Shoe Testing

small.img.alt
small.img.alt Touch Screen EN 12770 DIN Abrasion Tester For Shoe Testing Touch Screen EN 12770 DIN Abrasion Tester For Shoe Testing small.img.alt Touch Screen EN 12770 DIN Abrasion Tester For Shoe Testing Touch Screen EN 12770 DIN Abrasion Tester For Shoe Testing small.img.alt Touch Screen EN 12770 DIN Abrasion Tester For Shoe Testing Touch Screen EN 12770 DIN Abrasion Tester For Shoe Testing small.img.alt Touch Screen EN 12770 DIN Abrasion Tester For Shoe Testing Touch Screen EN 12770 DIN Abrasion Tester For Shoe Testing
Basic Information
Place of Origin: CHINA
Brand Name: GESTER
Certification: CE,ISO
Model Number: GT-KB03B
Minimum Order Quantity: 1 set
Packaging Details: wooden packaging
Delivery Time: 10-30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets/month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Diameter Of Wear Wheel: 150mm Specimen Moving Speed: 4.2 Mm/r
Wear Wheel Speed: 40±1rpm Warranty: 1 Year
Standards: ASTM D5963, ISO20871, QB/T2884, SATRA TM 193 Application: Elastic Material, Rubber, Tires, Conveyor Belts Etc
Price: Factory Price
High Light:

EN 12770 Shoe Testing Machine

,

Touch Screen DIN Abrasion Tester

,

EN 12770 DIN Abrasion Tester

Touch Screen Controlled EN 12770 Shoe Testing Machine DIN Abrasion Tester





Application

DIN Abrasion Tester is used to determine wear performance test of materials like elastic material, rubber, tires, conveyor belts, conveyor belts, shoe soles.



Feature

1. Body paint baking processed, easy for maintenance;
2. Color touch-screen control, digital counting, automatically stop after test finished;
3. Equipped with vacuum suction port device,automatically clean dust during test.



Principle

Under certain touching pressure and contact area, sample becomes a certain angle with sandpaper and determine its abrasion performance caused by a certain level of sandpaper. Pack sandpaper outside the surface of roller. The sample is pressed against the roller with sandpaper, which makes sample lateral moving along roller. Abrasion is caused under the other side of cylindrical specimens measuring the mass loss of sample value and count the wear amount by sample density.



Standards
DIN-53516, JIS-K6369, JIS K6264-2,GB/T 20991 section 8.3,GB/T 20265, GB20266-2006, GB/T 9867,
EN ISO 20344 section 8.3, AS/NZS 2210.2 section 8.3, ISO 4649, SATRA TM174, BS903-A9 Method A,
ASTM D5963, ISO20871, QB/T2884, SATRA TM 193, EN 12770


Key Specification
Model GT-KB03B-1 GT-KB03B-3
Test positions 1 3
Control Mode Touch screen controlled
Diameter of wear wheel 150mm
Specimen dimension ø16.2 mm x thickness 6-10 mm
Specimen moving speed 4.2 mm/r
Weights Holder 2.5N, can be used arbitrarily with optional accessory 2.5N, 5N (each for one)
Wear wheel speed 40±1rpm
Inclination angle 3°, Test piece support shaft of test piece becomes vertical angle with roller.
Grit size of sandpaper #60
Roller length 460mm
Wear stroke 40m
Power supply 1∮AC 220V 50/60HZ 3A





Accessories

Standard accessories 1Set 2.5N weights
  1Set 5N weights
  1pc P60# standard abrasive paper
  1pc Standard cutting die
  1pc Metal blob(Grinding head)
  1pc Power line
  1Set

Vacuum cleaner

(*Not supply, would suggest to purchase in your local.)

Option accessories Optional

GT-G203H Electronic balance (210g,accuracy 1mg)



  Optional Standard rubber





Product Picture

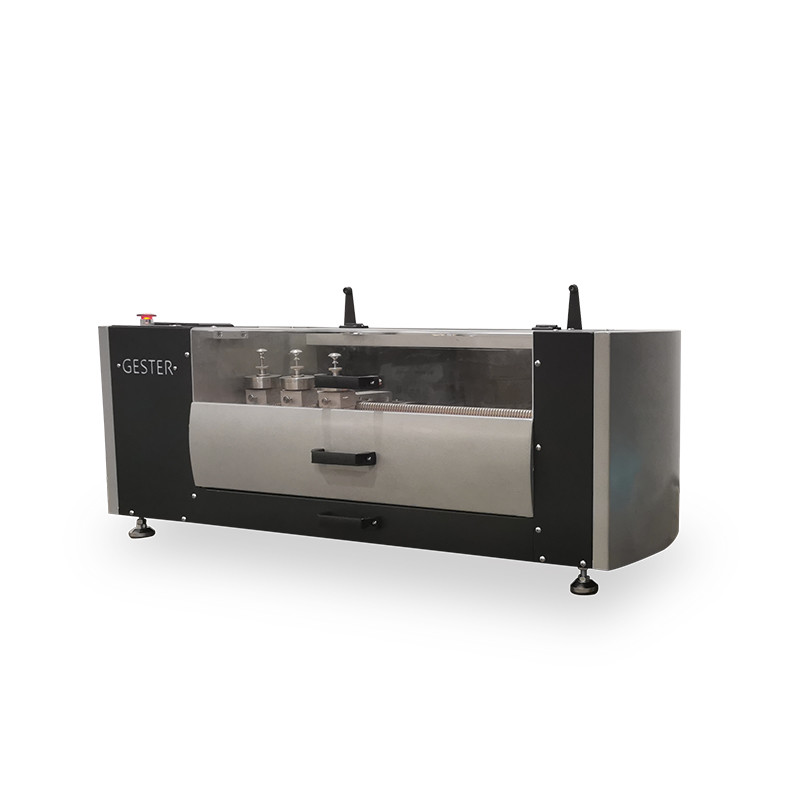

Touch Screen EN 12770 DIN Abrasion Tester For Shoe Testing 0
