Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-C15 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 set/month |
| Power: | AC220V | Usage: | Wear And Abrasion Resistance Of Fabric |
|---|---|---|---|
| Product Name: | Universal Wear Tester | Warranty: | 12 Months |
| Motor: | Servo Motor | Service: | Online Support, Installation And Training |
| High Light: | ASTM D3885 Universal Wear Tester,Stroke Length 25mm Universal Wear Tester,ASTM D3885 Abrasion Resistance Tester |
||

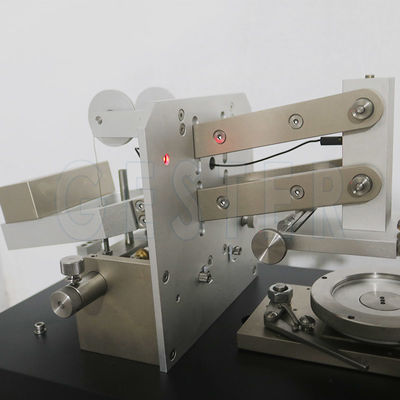

Universal Wear Tester Stoll Quartermaster GT-C15
|
Application: Universal Wear Tester (UWT) is used to determines the wear and abrasion resistance of fabric used in clothing, footwear and industrials. Supplied with surface abrasion head (inflated diaphragm method, flex abrasion head, depth abrasion test device, flat abrasion (frosting) and pilling test device as well as necessary weights and initial supply of abrasive. Fitted with built-in timer and mechanical cycle counter. |
1. This quartermaster universal wear tester equipped with accurate loop counter and timer. Digital counter can record the cycle index when the sample ruptured. And testers can preset the counter to stop before sample rupturing. Count down model can also be used in count the cycle index.

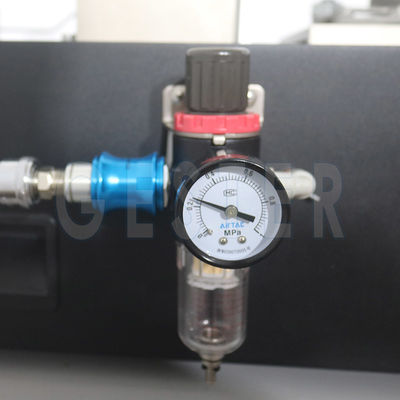

2. To ensure accuracy of the rubber membrane when doing the surface abrasion test, this machine equipped with accurate pneumatic pressure control system.
3. Stoll Quartermaster Universal Wear Tester: test can be done automatically which can ensure not only the accuracy of repeat test result but also save operator’s time.
| Model | GT-C15-1 | GT-C15-2 | |
| Speed | 115±10 double stokes/ min | ||
| Stroke Length | 25mm | ||
| Counter Display | LCD | ||
| Power Supply | AC 220V 50/60HZ | ||
| Dimensions | 480 x 360 x 715mm ( L x W x H ) | ||
| Weight | 50kg | ||
| Standards |
ASTM D3885, D3886
|
ASTM D3514, D3885, D3886 AATCC 119, 120 |
|
| Standard Accessories |
Tension weights 5pcs Press weights 5pcs Micrometer calipers Flex Abrasion Testing fixture 1 set Flex Abrasion Blade Device 1set Surface Abrasion Testing fixture 1 set Power Line 1pc |
Tension weights 5pcs Press weights 5pcs Micrometer calipers Flex Abrasion Testing fixture 1 set Flex Abrasion Blade Device 1set Surface Abrasion Testing fixture 1 set Edge & Fold Abrasion Test 1set Flat abrasion (frosting) and pilling test fixture 1set Power Line 1pc |
|
| Option Accessories |
Rubber membrane ASTMD3514 Photograph ASTM D3514 Elastomeric Base Pad and Elastomeric Friction Pad |
||
