Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | HEY03 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Condition: | New | Warranty: | 1 Year |
|---|---|---|---|
| After-sales Service Provided: | Video Technical Support,Online Support,commissioning And Training | Name: | Thermoforming Equipment |
| Service: | Perfect After-sales Service | Advantage: | Factory Direct Sale |
| High Light: | Single Station Plastic Thermoforming Machine,PP Lid Plastic Thermoforming Machine,Single Station Desktop Thermoforming Machine |
||

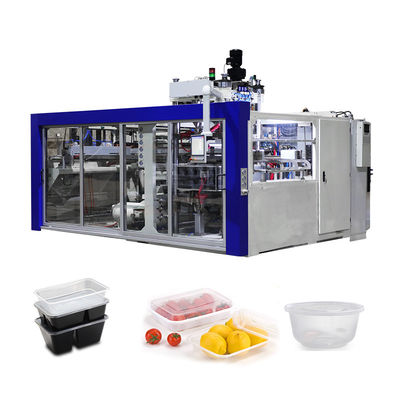

Product Introduction:
Single Station Thermoforming machine, using precision processed parts, supporting self-made molds, mirror polishing, integrated operating system, easy to understand.
Feature:
● More efficient energy use and material utilization.
● The heating station uses high-efficiency ceramic heating elements.
● The upper and lower tables of the forming station are equipped with independent servo drives.
● Single Station Automatic Thermoforming machine has a pre-blowing function to make the product molding more in place.
Key Specification:
| Model | HEY03-6040 | HEY03-6850 | HEY03-7561 |
| Max.Forming Area (mm2) | 600x400 | 680x500 | 750x610 |
| Sheet Width (mm) | 350-720 | ||
| Sheet Thickness (mm) | 0.2-1.5 | ||
| Max. Dia. Of Sheet Roll (mm) | 800 | ||
| Forming Mould Stroke(mm) | Upper Mould 150, Down Mould 150 | ||
| Power Consumption | 60-70KW/H | ||
| Forming Mould Width (mm) | 350-680 | ||
| Max. Formed Depth (mm) | 100 | ||
| Dry Speed (cycle/min) | Max 30 | ||
| Product Cooling Method | By Water Cooling | ||
| Vacuum Pump | UniverstarXD100 | ||
| Power Supply | 3 phase 4 line 380V50Hz | ||
| Max. Heating Power | 121.6 | ||
