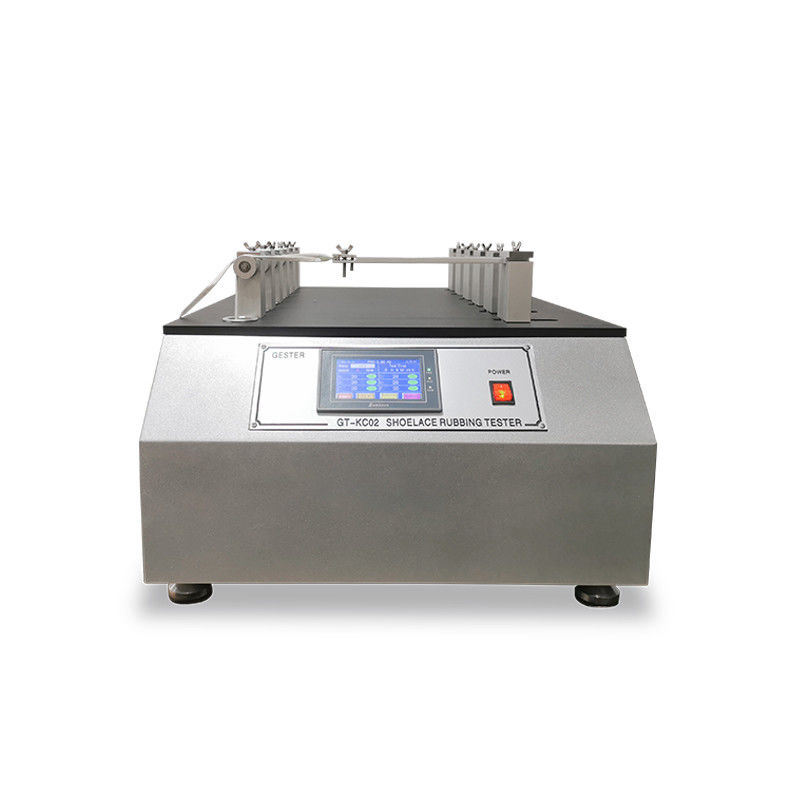

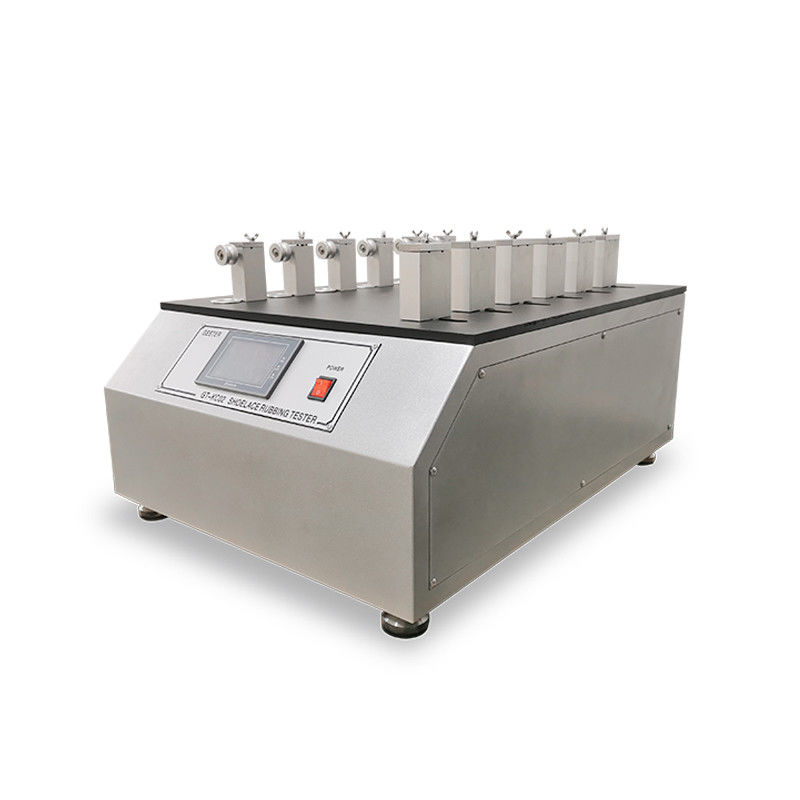

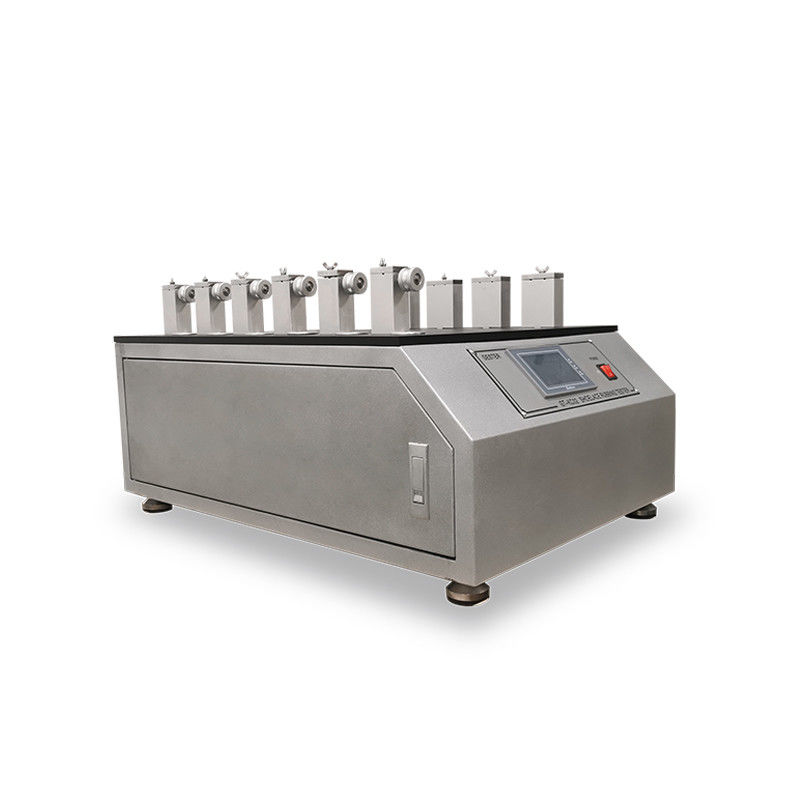

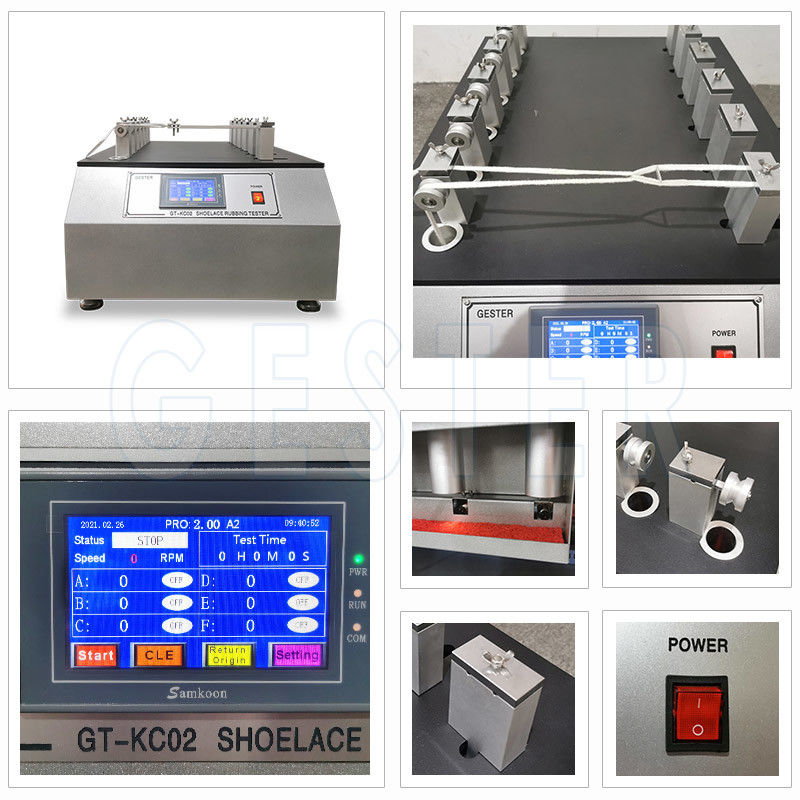

Satra Tm 154 Shoelace And Shoe Eyelets Rub Test Machine

small.img.alt
small.img.alt Satra Tm 154 Shoelace And Shoe Eyelets Rub Test Machine Satra Tm 154 Shoelace And Shoe Eyelets Rub Test Machine small.img.alt Satra Tm 154 Shoelace And Shoe Eyelets Rub Test Machine Satra Tm 154 Shoelace And Shoe Eyelets Rub Test Machine small.img.alt Satra Tm 154 Shoelace And Shoe Eyelets Rub Test Machine Satra Tm 154 Shoelace And Shoe Eyelets Rub Test Machine small.img.alt Satra Tm 154 Shoelace And Shoe Eyelets Rub Test Machine Satra Tm 154 Shoelace And Shoe Eyelets Rub Test Machine small.img.alt Satra Tm 154 Shoelace And Shoe Eyelets Rub Test Machine Satra Tm 154 Shoelace And Shoe Eyelets Rub Test Machine
Basic Information
Place of Origin: CHINA
Brand Name: GESTER
Certification: ISO CE
Model Number: GT-KC02
Minimum Order Quantity: 1 set
Packaging Details: wooden packaging
Delivery Time: 10-30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets/month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Warranty: 1 Year Standard: DIN 4843; SATRA TM 154
Display: Touch-screen Control Test Position: 6 Test Groups
Specification: 66*58*42cm Weight: 50kg
Power Supply: AC220V Key Words: Shoelace Rubbing Resistant Tester
High Light:

satra tm 154

,

satra tm 154 rub test machine

,

AC220V rub test machine

SATRA TM 154 Shoelace And Shoe Eyelets Rubbing Resistant Tester

Application

This machine is used to test the abrasion resistance for shoelace of cotton, hemp, chemical fiber or other materials.





Principle

Take two shoelace, mutually hook in the middle. Clamp the both ends of the shoelace at the movable fixture of shoelace rubbing tester, which can make reciprocating linear motion; clamp one end of the other shoelace on the corresponding fied fixture and another end of the shoelace round by a fixed pulley and hanging the a weight. Make the two shoelace abrasion each other by reciprocating linear motion. Then check the wear resistance, when the machine run up to pre-set times, the machine stop.





Key Specification

 Model  GT-KC02A  GT-KC02B
 Test position  4 groups  6 groups

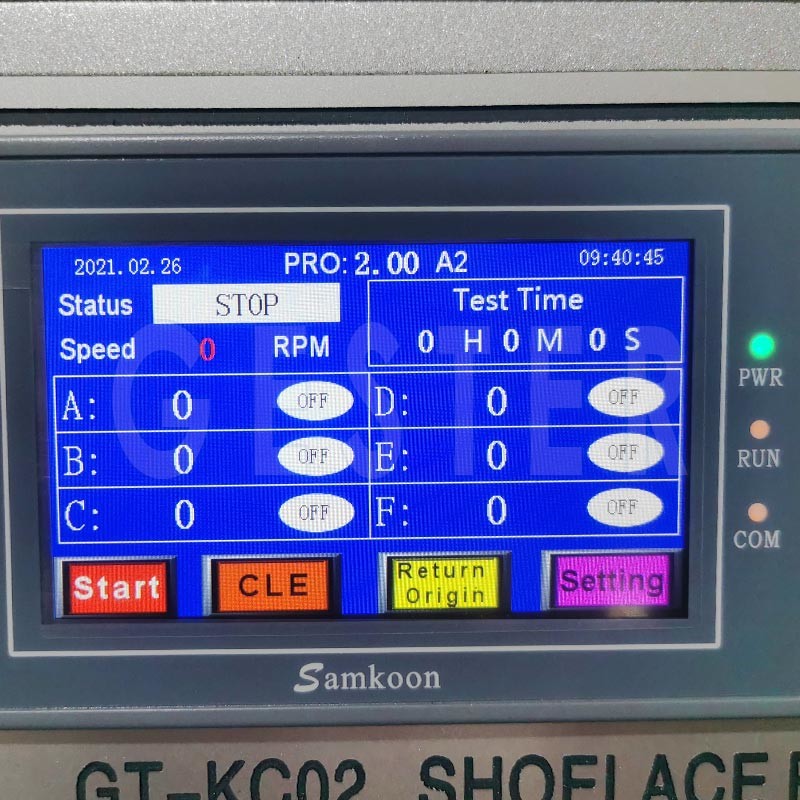

 Control  Touch-screen control, 0~999,999
 Min. Separation between movable   and fixed fixtures  280 ±50 mm
 Movable fixture stroke  35± 2 mm
 Test speed  60 ± 6 cycles/min
 Sample loading gauge  Angle 52.5degree; Length120 mm
 Stainless metal strip  W: 25mm, L: 250mm
 Weight  250 ± 3g
 Power supply  1∮AC 220V 50/60HZ
 Dimensions ( L x W x H )  66 x 58 x 42cm
 Weight  50 kg
 Standards

 DIN 4843

 SATRA TM 154

 ISO 22774

 QB/T 2226

 GB/T 3903.36

 ISO 2023 Annex B

 Standard accessories

 250g Weights --------------- 4pcs

 Stainless metal strip ------- 4pcs

 Clip -------------------------- 4pcs

 Sample loading gauge------1pc

 Power line -------------------1pc

 250g Weights ---------------  6pcs

 Stainless metal strip -------- 6pcs

 Clip --------------------------- 6pcs

 Sample loading gauge -----  1pc

 Power line ---------------- --- 1pc





Optional Accessories

 Optional accessories  Optional  Standard eyelet

Satra Tm 154 Shoelace And Shoe Eyelets Rub Test Machine 0
