Gester International Co., Ltd
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE,ISO |
| Model Number: | GT-KC03 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Product Name: | Brass 4.5mm Inner Diameter SATRA TM93 Shoelace Against Eyelets Abrasion Testing Machine | Warranty: | 1 Year |
|---|---|---|---|
| Price: | Factory Price | Weight(approx.): | 60 Kg(excluding Weight) |
| Control Method: | Touch-screen Control, 0~999,999 | Power Supply: | 1∮AC 220V 50/60HZ |
| High Light: | SATRA TM93 Abrasion Testing Machine,4.5mm ID Eyelets Abrasion Testing Machine,SATRA TM93 Abrasion Tester |
||
Brass 4.5mm Inner Diameter SATRA TM93 Shoelace Against Eyelets Abrasion Testing Machine
Application
This tester is used for shoelace against standard eyelet abrasion testing, or eyelet against standard shoelace abrasion testing. This tester is suitable for all kinds of shoelace and eyelet.
Principle
Let shoelace cross the eyelet clamped on the fiber board, make the shoelace and eyelet form into 90 degree, make the fiber board and shoelace form into 45 degree. Then straining reciprocated the shoelace under the standard tension by eyelet. While the shoelace is damaged, stop the testing.
Key Specification
| Model |
GT-KC03 |
| Position | 6 positions |
| Weights | 455g ± 5g , 6pcs |
| Control method | Touch-screen control, 0~999,999 |
| Standard eyelet | Brass, Inner diameter: 4.5mm |
| Fiberboard | 25×25mm, Inner diameter 5.0 ± 0.2mm |
| Movable stroke | 76 ±2 mm |
| Test speed | 100±5cpm |
| Power supply | 1∮AC 220V 50/60HZ |
| Dimensions(W×D×H) | 57x58x41cm |
| Weight(approx.) | 60 kg(excluding weight) |
| Standards | SATRA TM93 |
Standard accessories
| Power line | 1pc |
| Standard eyelet | 6pcs |
| 455g Weights | 6pcs |

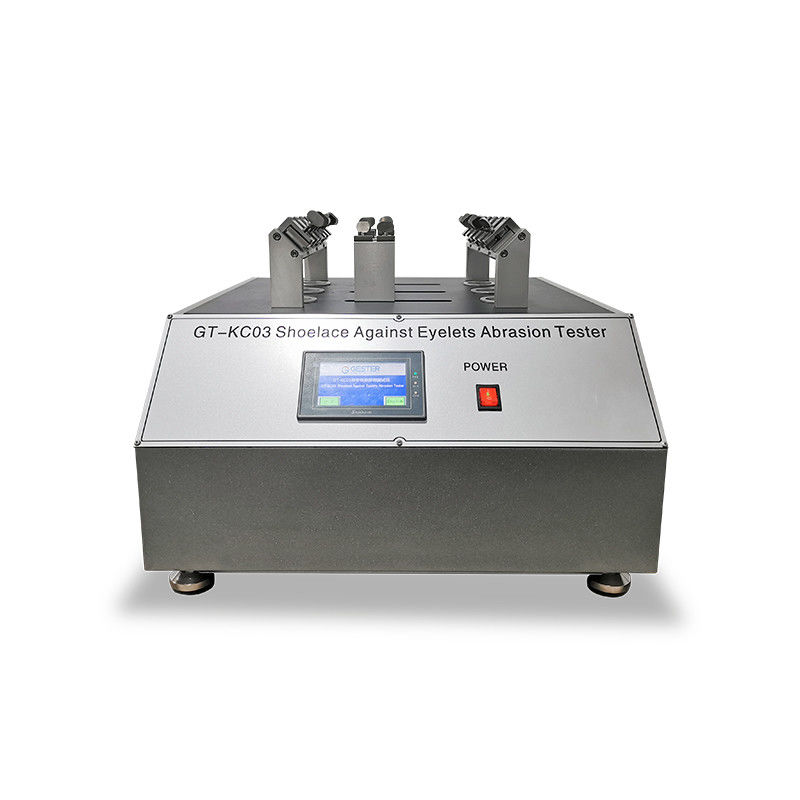

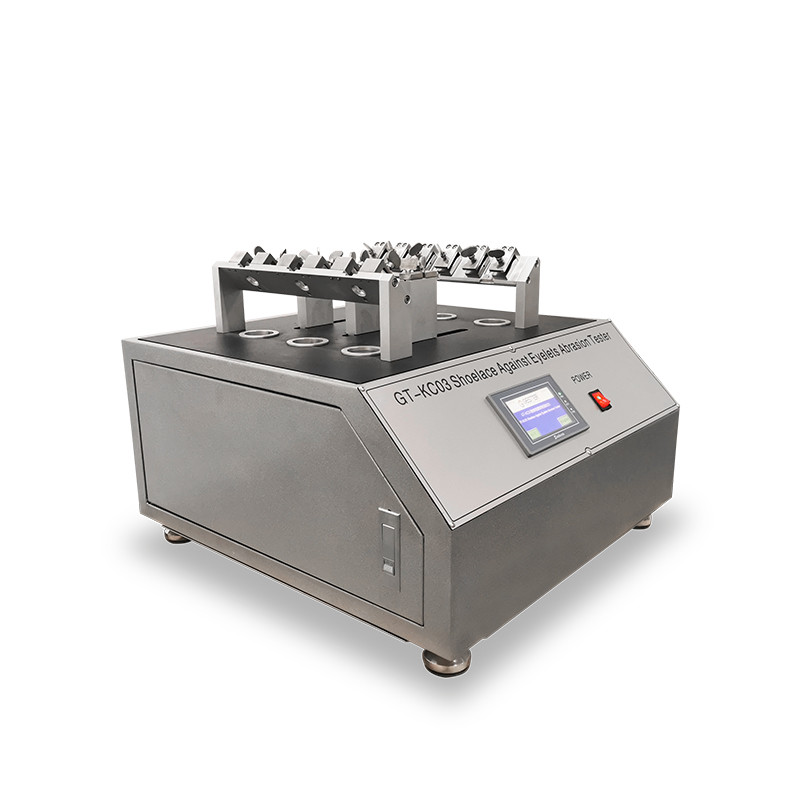

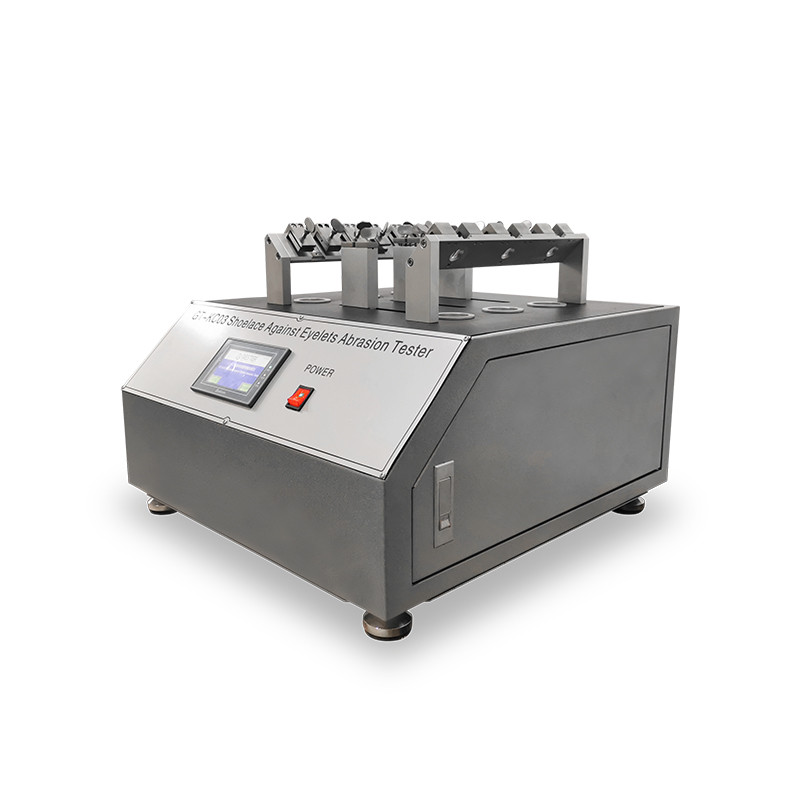

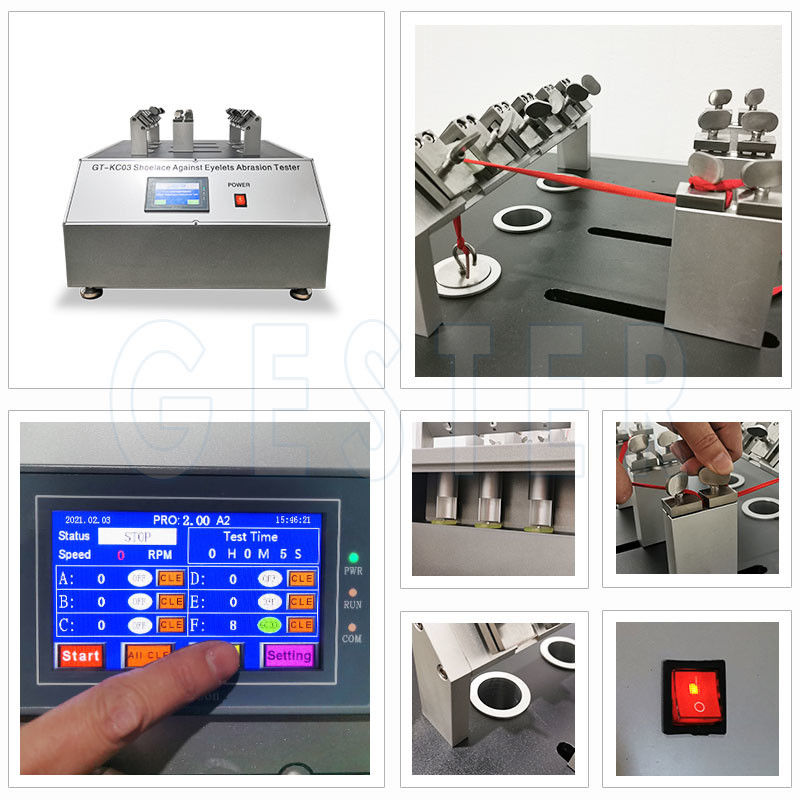

Product Picture
