SATRA TM161 Footwear En Shoe Sole Bending Flexing Resistance Tester

small.img.alt
small.img.alt SATRA TM161 Footwear En Shoe Sole Bending Flexing Resistance Tester SATRA TM161 Footwear En Shoe Sole Bending Flexing Resistance Tester small.img.alt SATRA TM161 Footwear En Shoe Sole Bending Flexing Resistance Tester SATRA TM161 Footwear En Shoe Sole Bending Flexing Resistance Tester small.img.alt SATRA TM161 Footwear En Shoe Sole Bending Flexing Resistance Tester SATRA TM161 Footwear En Shoe Sole Bending Flexing Resistance Tester small.img.alt SATRA TM161 Footwear En Shoe Sole Bending Flexing Resistance Tester SATRA TM161 Footwear En Shoe Sole Bending Flexing Resistance Tester small.img.alt SATRA TM161 Footwear En Shoe Sole Bending Flexing Resistance Tester SATRA TM161 Footwear En Shoe Sole Bending Flexing Resistance Tester
Basic Information
Place of Origin: CHINA
Brand Name: GESTER
Certification: CE,ISO
Model Number: GT-KB06
Minimum Order Quantity: 1 set
Packaging Details: wooden packaging
Delivery Time: 10-30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets/month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Warranty: 1 Year Weight: 80kg/100kg
Test Equipment: Test Equipment Bending Angle: 90degree
Items: Measure The Flexing Resistant Of Shoe Soles Under Continuous Movement Mandrel Diameter: LCD ,0-9999999
Power Supply: AC 220V 50/60HZ
High Light:

SATRA TM161

,

SATRA TM161 bending resistance tester

,

bending resistance tester LCD

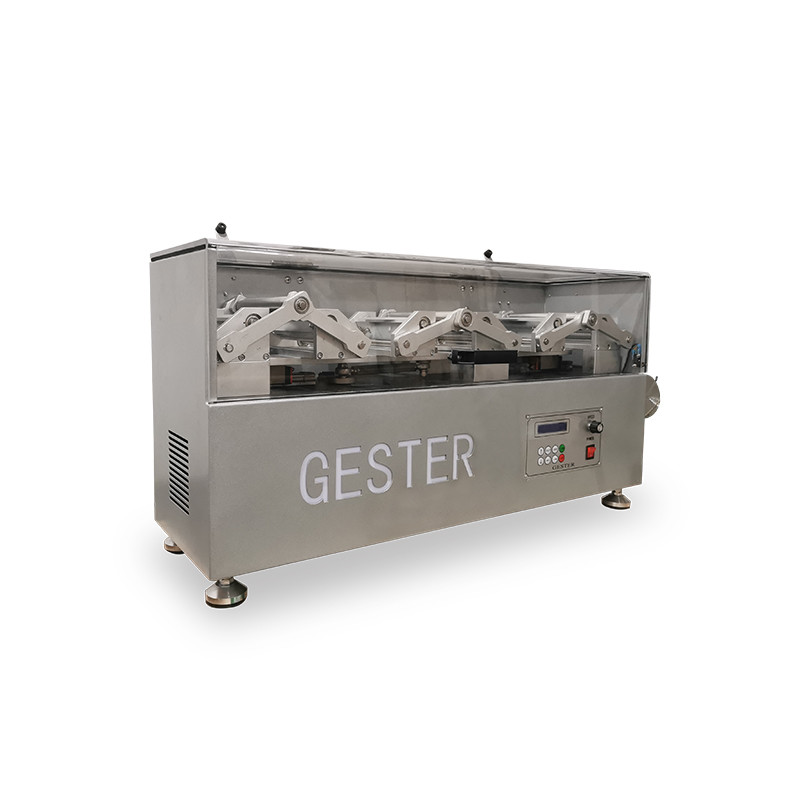

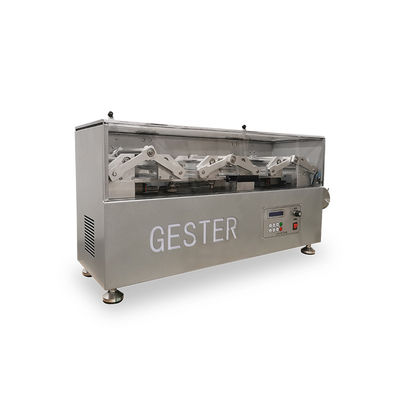

SATRA TM161 Footwear En Shoe Sole Bending Flexing Resistance Tester

Application

This tester is used to measure the flexing resistance of shoe soles under continuous movement. Before test, plunge some holes at the maximum bending position, and mount specimen at both grips, one fixed, one movable. Specimen runs flexing owing to the movement of machine. After a certain test cycles, remove the specimen and check its difference of incision length.



Standards

SATRA TM161, ISO 17707, ISO20344 section8.4.2 ,

ISO20347 section 5.8.4, AS/NZS 2210.2 section8.4.2

GB/T 20991section8.4.2, QB/T 2885, DIN 53543



Key Specification

 Model  GT-KB06A  GT-KB06B
 Test position  3  6
 Bending angle  90±2 °
 Bending speed  125-150cpm
 Mandrel diameter  30 mm
 Clamps apart  110±1mm
 Movable fixture stroke  41.5 ± 0.5 mm
 Counting  LCD, 0-9999999
 Power supply  1∮AC 220V 50/60HZ
 Dimensions  105x42x55cm  105x70x55cm
 Weight  80kg  100kg



Accessories

 Standard accessories  1set  Spanner
   1pcs  Chisel cutter(2mm)
   1pcs  Power line

SATRA TM161 Footwear En Shoe Sole Bending Flexing Resistance Tester 0
