Gester International Co., Ltd
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE,ISO |
| Model Number: | GT-I05 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Power Battery Safety Evaluation Extrusion Crush Testing Machine: | Power Battery Safety Evaluation Extrusion Crush Te | Standards: | IEC62133-2-2017 |
|---|---|---|---|
| Maximum Pressure Range: | 0~20kn | Pressure Display Accuracy: | 0.01n |
| Displacement Resolution: | 0.05 Mm | Use Power: | 220V, 50 / 60Hz, |
| Machine Crush Stroke: | 200mm | Unit Conversion: | Kg, N, Lb |
| Compression Space: | 300*300*300mm (W*H*D) | Warranty: | 1 Year |
| High Light: | IEC62133-2-2017,safety evaluation extrusion crush battery tester,IEC62133-2-2017 battery testing equipment |
||

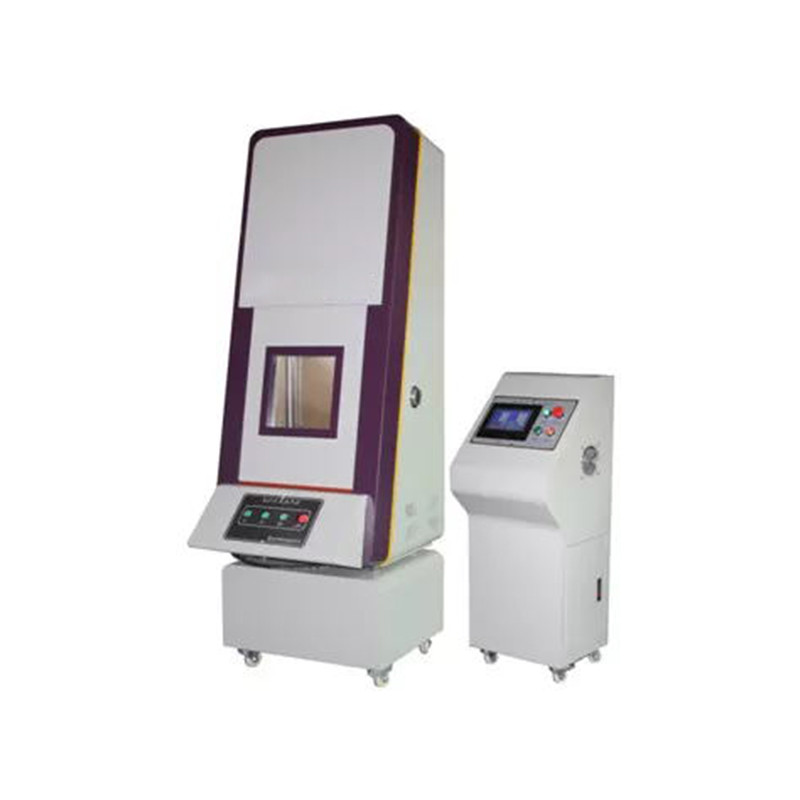

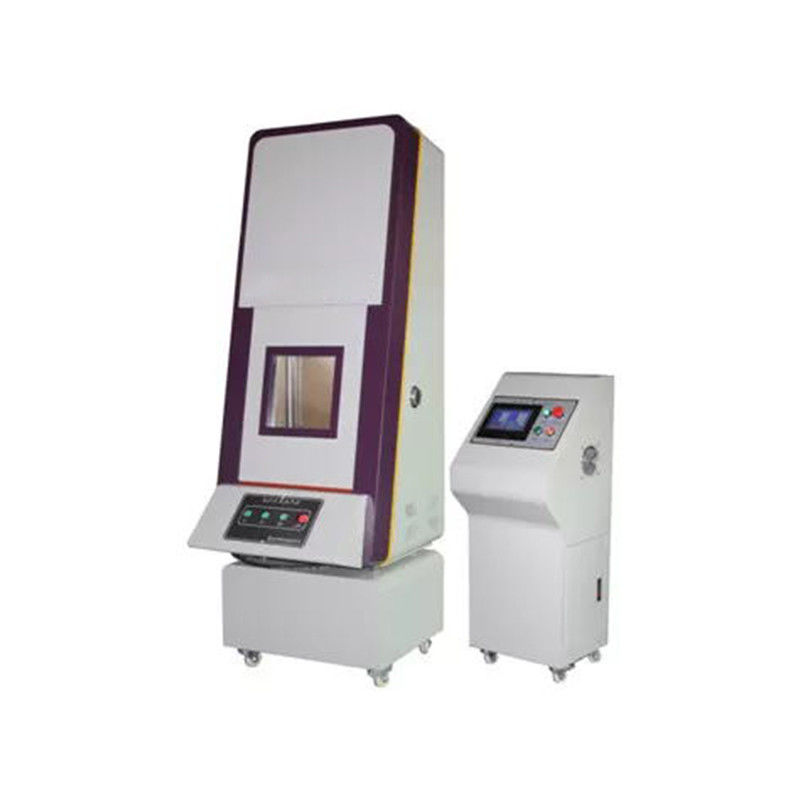

The battery squeeze tester is suitable for simulating all kinds of lithium battery storage batteries in the transportation, use, storage and disposal of household waste, the battery is squeezed by external force, and the sharp object penetrates the situation. The battery is qualified as non-explosion and no fire.
IEC62133-2-2017; UN38.3; GB 31241-2014; UL 1642; UL 2054
| Model | GT-I05 |
| Maximum pressure range | 0~20kN |
| Pressure display accuracy | 0.01N |
| Sensor resolution | 1/100,000 |
| Control mode | PLC automatic control mode |
| Unit Conversion | kg, N, lb |
| Displacement resolution | 0.05 mm |
| Testing Speed | 0.01~20mm/s Adjustable |
| Compression space | 300×300×300mm (W×H×D) |
| Machine crush stroke | 200mm |
| Crush Plate | Dia. 20cm or 15cm Round squeezing board |
| Delay function | 0~9999s (test time can be set and adjusted arbitrarily) |
