Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-F50B |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 set/month |
| Power: | AC220V | Product Name: | Salt Spray Test Chamber |
|---|---|---|---|
| Warranty: | 12 Months | Service: | Online Support, Installation And Training |
| Advantage: | Factory Direct Sale | Type: | Salt Spray Cabinet |
|

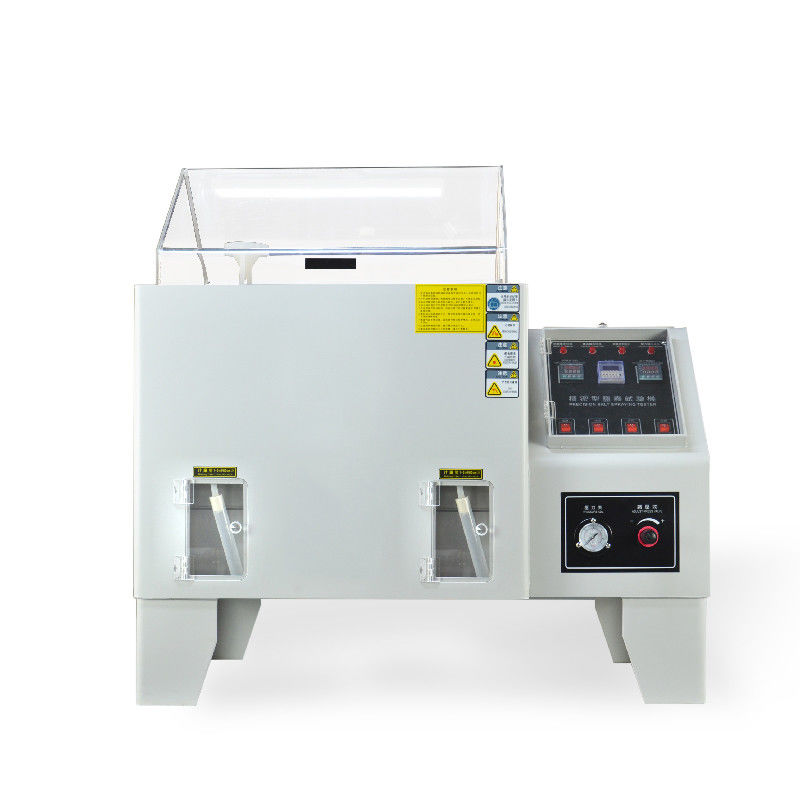

Application: Salt Spray Corrosion Test Chamber is also called Salt spray tester. The salt spray corrosion test of Salt Spray Tester aims at determining the product corrosion resistance after various kinds of materials surface suffering electroplating, anodizing, painting, rust-proof oil corrosion resistance treatment.The machine is suitable for neutral salt spray test (NSS) and acidic corrosion experiment (AASS, CASS).
Standards: CNS3627,3885,4159,7669,8886,JIS D-0201,H-8502,H-8610,K-5400,Z-2371,ISO3768,3769,3770,ASTM B-117,B-268,GB-T2423SS DIN 50021
|
| Model | GT-F50B-1 | GT-F50B-2 | GT-F50B-3 | |||
| Inside chamber dimension | 60x45x40cm | 90x60x50 | 120x100x50 | |||
| Outside chamber dimension | 107x60x118cm | 141x88x128cm | 190x130x140 | |||
| Test chamber volume | 108L | 270L | 480L | |||
| Brine tank | 15L | 25L | 40L | |||
| Temperature of test chamber | Brine test method(NSS ACSS)35℃±1℃ | |||||
| Corrosion resistance test method (CASS)50℃±1℃ | ||||||
| Temperature of pressure barrel | Brine test method(NSS ACSS)47℃±1℃ | |||||
| Corrosion resistance test method (CASS)63℃±1℃ | ||||||
| Brine temperature | 35℃±1℃ 50℃±1℃ | |||||
| Power | AC220V 50Hz | |||||
| Brine concentration | 5% sodium chloride solution concentration or add copper chloride 0.26 grams per liter in the 5% sodium chloride solution concentration. (CuCl2 2H2O) | |||||
| Compressed Air Pressure | 1.00±0.01kgf/cm2 | |||||
| Spray volume | 1.0~2.0ml/80cm2/h(gather at least 16 hours, take its average) | |||||
| Relative temperature of test chamber | Above 85% | |||||
| PH-value | 6.5~7.2 3.0~3.2 | |||||
| Spray method | continuous spray or intermittent spray | |||||
| Power supply | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A | |||
| Temperature range | Laboratory temperature | 35℃- 50℃( can be arbitrarily set) | ||||
| Pressure barrel temperature | 47℃- 63℃( can be arbitrarily set) | |||||
| Speed of temperature rising | Laboratory | Room temperature →35℃ about 35 minutes | ||||
| Pressure barrel | Room temperature →47℃ about 15 minutes | |||||
| Temperature accuracy | ±1℃ | |||||
|
Standards |
CNS3627,3885,4159,7669,8886, JIS D-0201,H-8502,H-8610,K-5400,Z-2371, ISO 3768,3769,3770,ASTM B-117,B-268,GB-T2423 SS DIN 50021 |
|||||
