| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-LB05 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Power: | 220V | Usage: | Chair Seating Impact And Durability Test |
|---|---|---|---|
| Warranty: | 12 Months | Product Name: | Chair Seating Impact And Durability Tester |
| Type: | Chair Testing Machine | Testing Before Delivery: | Yes |
| Service: | Installation And Training Service | ||
| High Light: | 30r/Min Furniture Testing Machine,PLC Control ISO Furniture Testing Machine,30r/Min Chair Testing Machine |
||
|

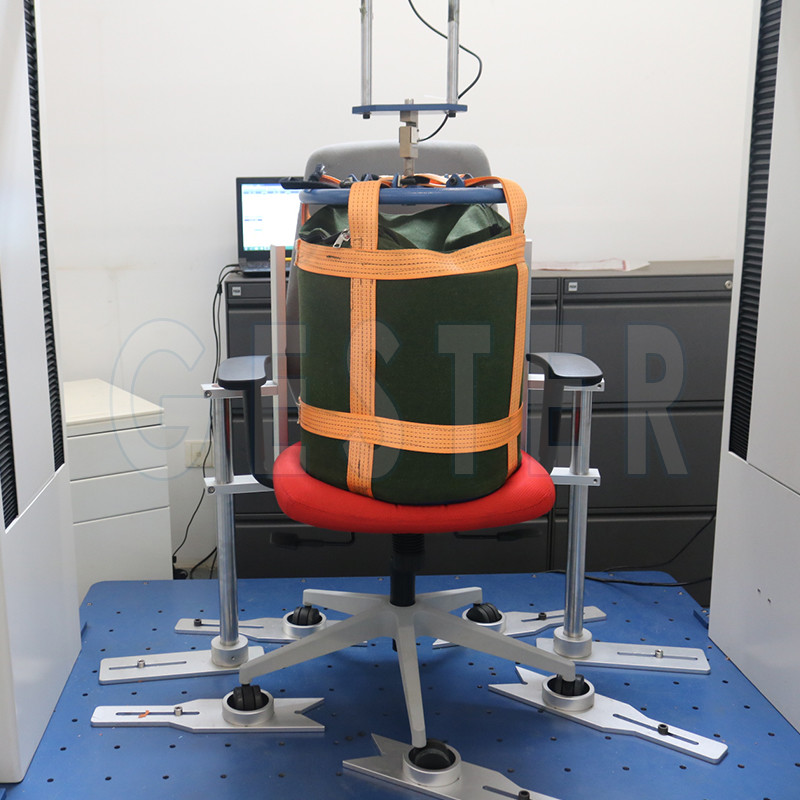

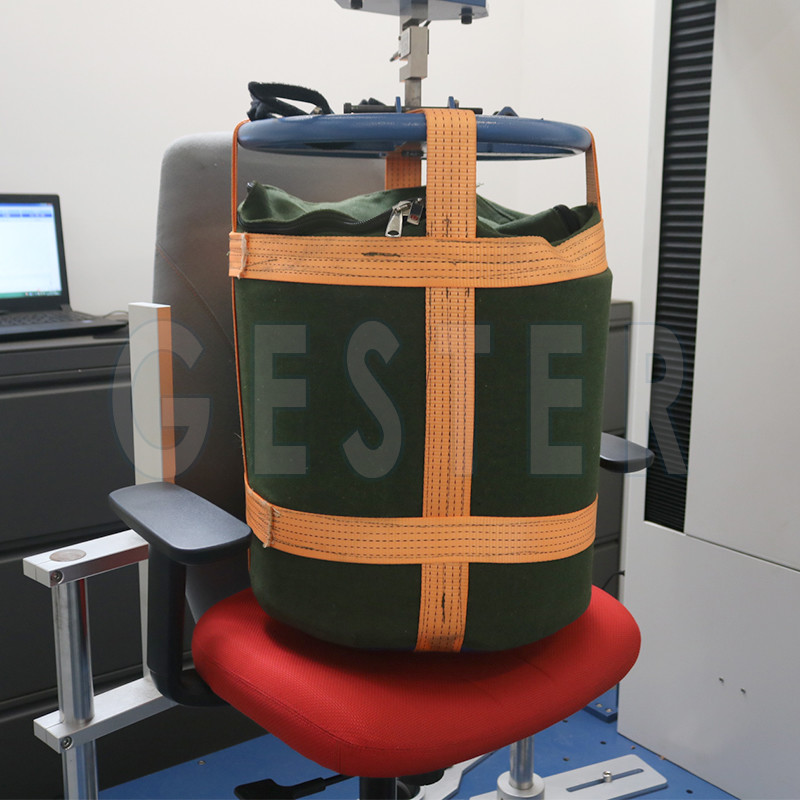

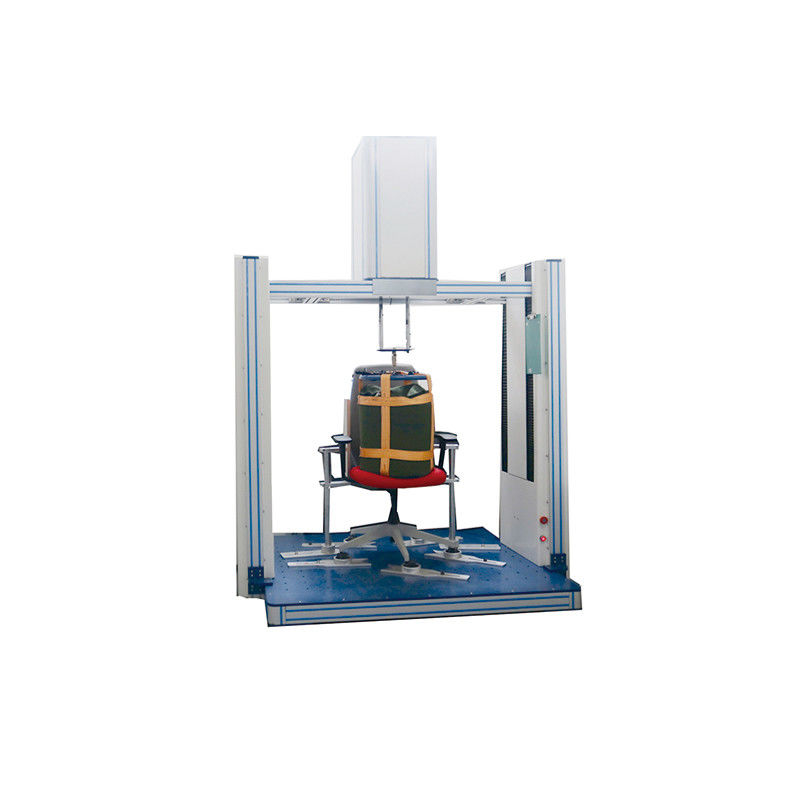

Application: This Chair Seating Impact and Durability Testing Machine applies to all types of chairs, with 2 functions of chair seating impact and seating durability test. The purpose of this test is to evaluate the ability of the chair to withstand heavy and abusive impact forces on the seat and evaluate the ability of chairs to withstand fatigue stresses and wear caused by downward vertical force(s) on the seat.
Standards:
|
|
Model |
GT-LB05A |
GT-LB05B |
GT-LB05C |
|
Impactor diameter |
200mm |
406mm |
A+B Impactors |
|
Impactor weight |
25kg |
Max.350Lbs (accumulated) |
|
|
Cylinder stroke |
0~300mm |
||
|
Beam stroke |
900~1350mm |
||
|
Test Speed |
10~30r/min |
||
|
Test Times |
0~999999times, settable |
||
|
Control |
PLC touch screen control |
||
|
Dimensions(WxDxH) |
150x150x200cm |
||
|
Weight(about) |
350Kg |
500kg |
530kg |
|
Air Source |
≧7kgf/cm^2 stable air source |
||
|
Power |
1∮ AC 220V 50Hz 5A |
||
|
Standard Accessories |
GT-LB05A |
GT-LB01-6 Seat Impactor Device 1set Stationary fixture 1set |
|
GT-LB05B |
GT-LB01-11 BIFMA Bag Type Impactor Device 1set |
|
|
GT-LB05C |
GT-LB01-6 Seat Impactor Device 1set GT-LB01-11 BIFMA Bag Type Impactor Device 1set Stationary fixture 1set |
