Gester International Co., Ltd
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE,ISO |
| Model Number: | GT-D22 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Product Name: | Fabric Infrared Yarn Laboratory Dyeing Machine | Warranty: | 1 Year |
|---|---|---|---|
| Staining Cup Volume: | 300cc OR 425cc | Heat Method: | Infrared Heat |
| Temperature Range: | RT - 140 ℃ | Rotation Speed: | 0 - 60 Rpm |
| Temperature Control Accuracy: | ±0.2 ℃ | Price: | Factory Price |
| High Light: | Microprocessor Control IR Dyeing Machine,380V Fabric IR Dyeing Machine,Microprocessor Control IR Lab Dyeing Machine |
||
Fabric Ir Sample Infrared Dyeing Machine for Lab
Application
Fabric Ir Sample Infrared Dyeing Machine for Lab is oil bath type infrared laboratory dyeing machine, it combine the advantages of traditional glycerol dyeing machine with common infrared dyeing machine together. It’s apply to dyeing and testing the color fastness of the knitted fabric, woven fabric, yarn, cotton, loose fiber, zipper etc. It was special design for dyeing industry, chemical industry, raw material, cloth which can simulate the production conditions exactly and reach the process effect.
Feature
1. Easy to operate, dye pot can be individually Turn plate removed to save waiting time.
2. The ability to conduct the tests of various dyes and chemicals on dispersing, leveling,liquor ratio exhausting etc.
3. Special recommendation for “STEP DYEING”to select the best dyestuff and combinations for the most suitable dyeing curve to achieve the highest efficiency and quality.
4. Different sizes of dye pots for various weight of samples with yarn or fabric holders to ensure the good leveling result .There will be no crease mark.
5. Suitable for low liquor ratio dyeing. Sample weight from 4g to 20g.
6. Special design for humanity, durability and easy-maintenance.Safe, high efficiency, environment friendly, energy saving, optimum for new dyeing small sample machines.
Key Specification
| Model | GT-D22 A | GT-D22 B |
| Staining cup number | 12 | 24 |
| Staining cup volume | 300cc OR 425cc | |
| Control mode | LCD Microprocessor type, programmable process number: 100(0—99), 100 programmable steps per process | |
| Heat method | Infrared heat | |
| Temperature range | RT - 140 ℃ | |
| Temperature control accuracy | ±0.2 ℃ | |
| Heating rate | 0 - 3.5 ℃ / min | |
| Cooling rate | 0.2 - 5 ℃ / min | |
| Cooling method | Air-cooled | |
| Rotation speed | 0 - 60 rpm | |
| Liquor ratio | 1:5 -1:100 | |
| Power supply | 1 AC 220V 50/60HZ | 3 AC 380V 50/60HZ |
| Dimensions( L x W x H) | 670×670×780mm | 860×680×780mm |
| Weight | 100kg | 120kg |
Accessories
| Cups | 1set | Put the test sample. |
| Cups stand | 1set | Place where to put cups. |
| Protective glove | 1set | To avoid to be hurt by HT cups. |

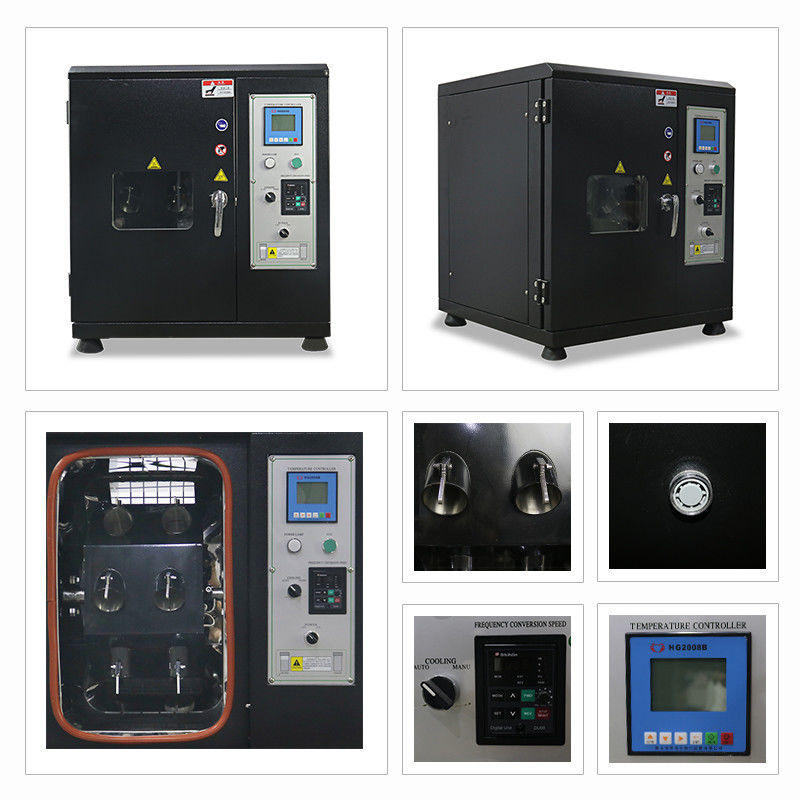

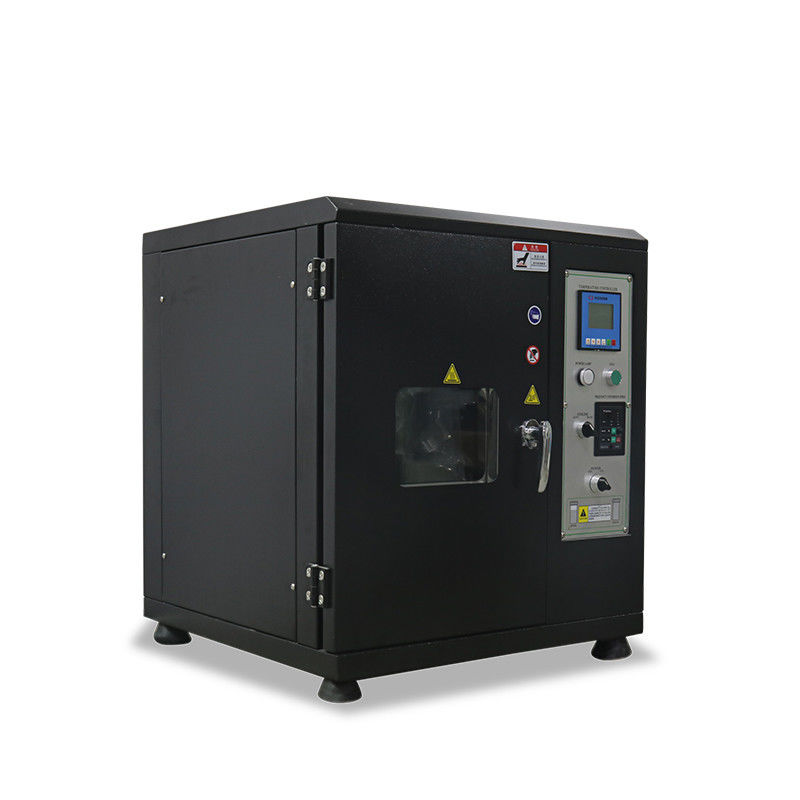

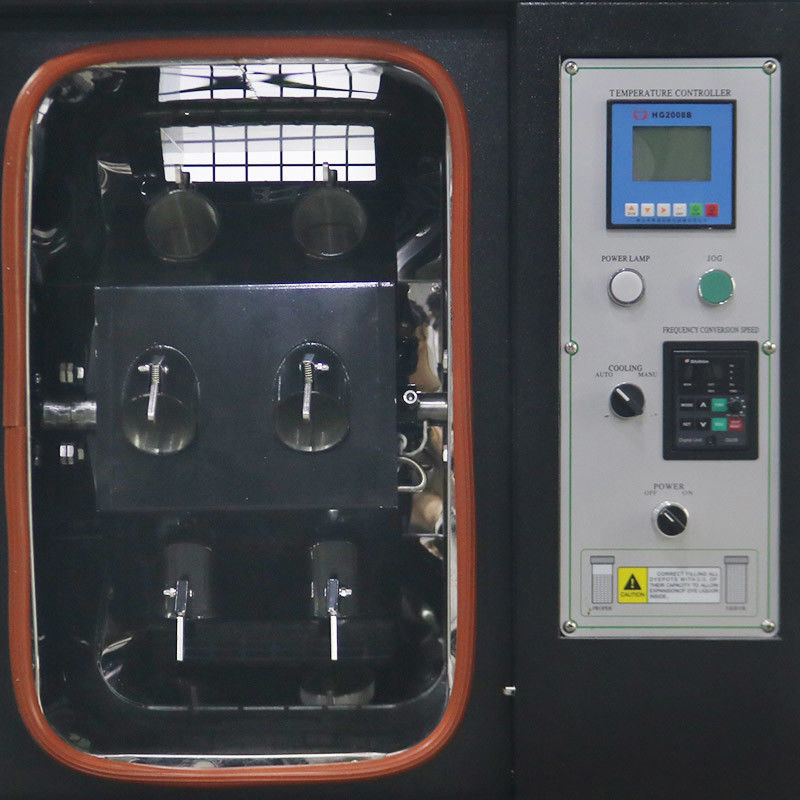

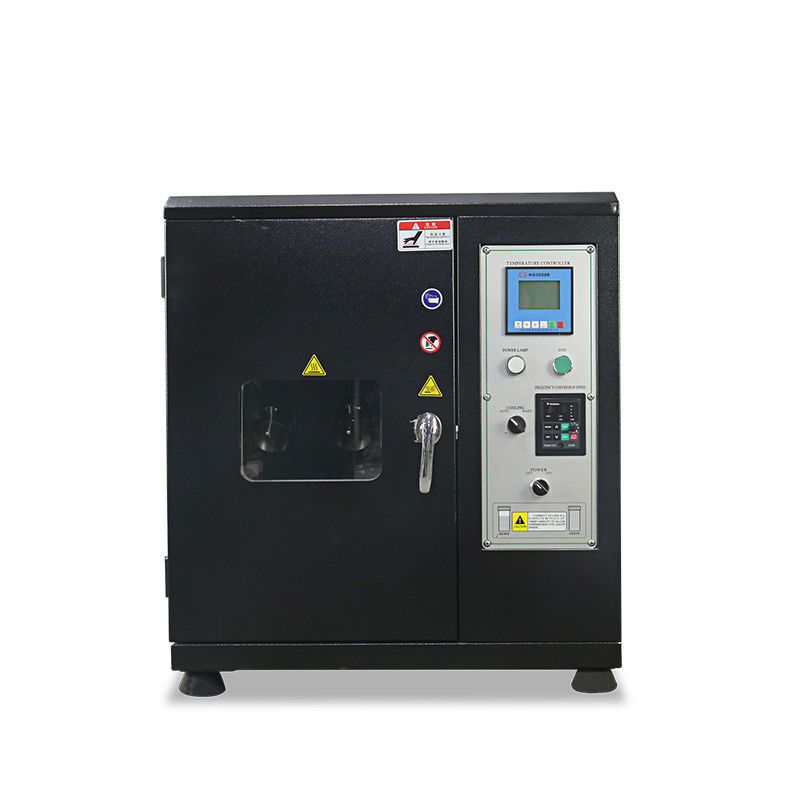

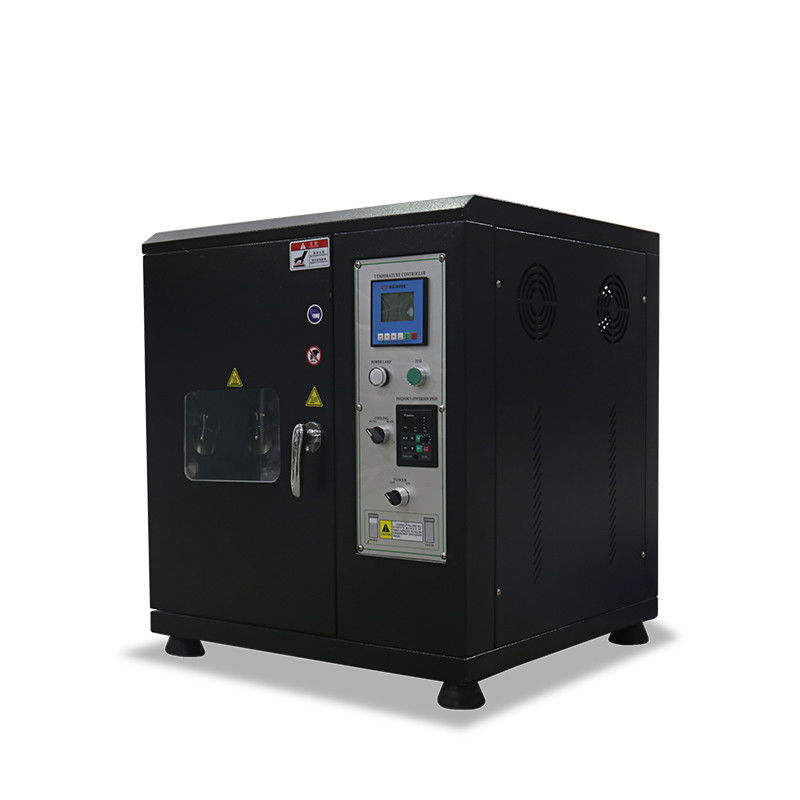

Product Image
