Gester International Co., Ltd
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE,ISO |
| Model Number: | GT-N09 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Warranty: | 1 Year | Measuring Range: | 0-200kg |
|---|---|---|---|
| Power: | Electronic | Dimensions: | 810×400×860mm |
| Feature: | Display Crush Graph Real Time | Price: | Factory Price |
| High Light: | ECT Edge Crush Tester,RCT Edge Crush Tester,ECT Edge Crush Test Machine |
||

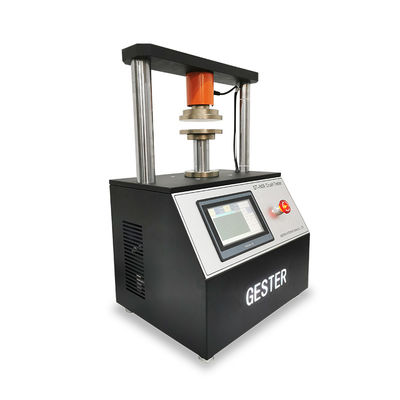

ISO RCT ECT Paper Tube Ring Edge Crush Tester For Corrugated Boxes
Application
Crush Tester is well-designed using modern mechanical design theory and human engineering design criteria and micro-process.
It is upper pressure plate fixed type, which has high precision and applies to the test of Ring Crush Test (RCT), Edge Crush Test (ECT), Flat Crush Test (FCT), Pin Adhesion Test(PAT) and Concora Medium Test(CMT) Option Testing methods.
Feature
1. High speed return after finishing test.
2. Imported step motor with servo control adopted.
3. The test result can be measured, statistical and printed automatically and the data can be saved.
4. Blue color LCD display, which can be display the crush time and loading force real time ,GT-N09 type can display crush graph real time.
5. Thermal printer, high speed and no noise .
6. Use the modern design idea of mechanical and electrical integration, which has compact configuration, pleasing appearance and convenient maintenance.
Standards
ISO 3035, ISO 3037, ISO 7263, TAPPI-T472, TAPPI T811, TAPPI T822, TAPPI T838, JIS-P8126, GB/T 2679.8,
GB/T 6546, GB/T 6548 ,GB/T 2679.6
Key Specification
| Model | GT-N09 |
| Measuring Range | 0-200kg |
| Compression Speed | 12.7mm/min |
| Resolution | 1/10,000 |
| Accuracy | ±1% |
| Dimensions | 810×400×860mm |
| Weight | 60kg |
