Resistance Of Leather On Footwear Upper Material To Water Penetration On Flexing

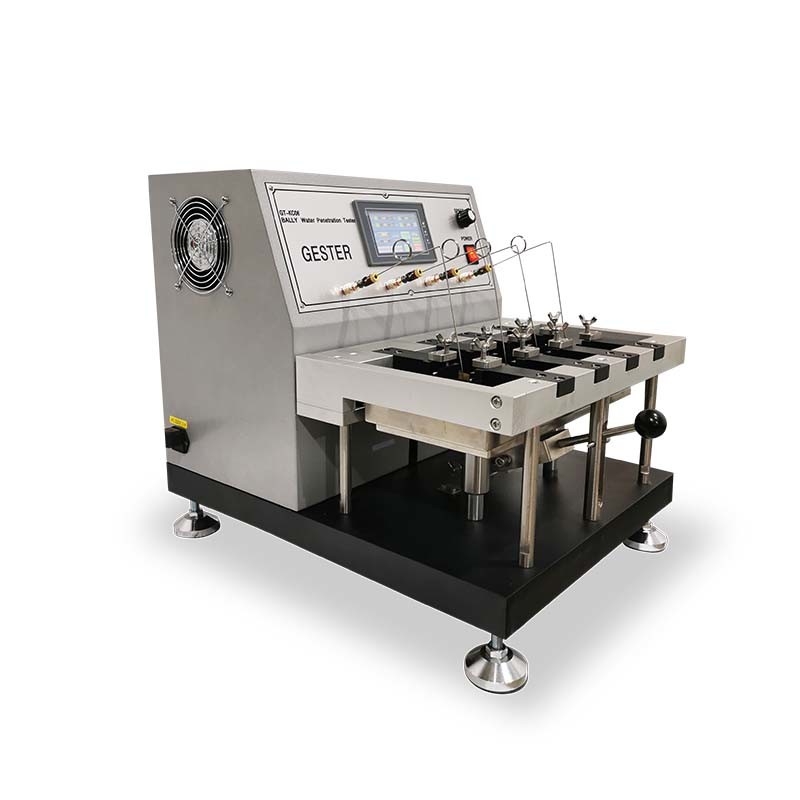

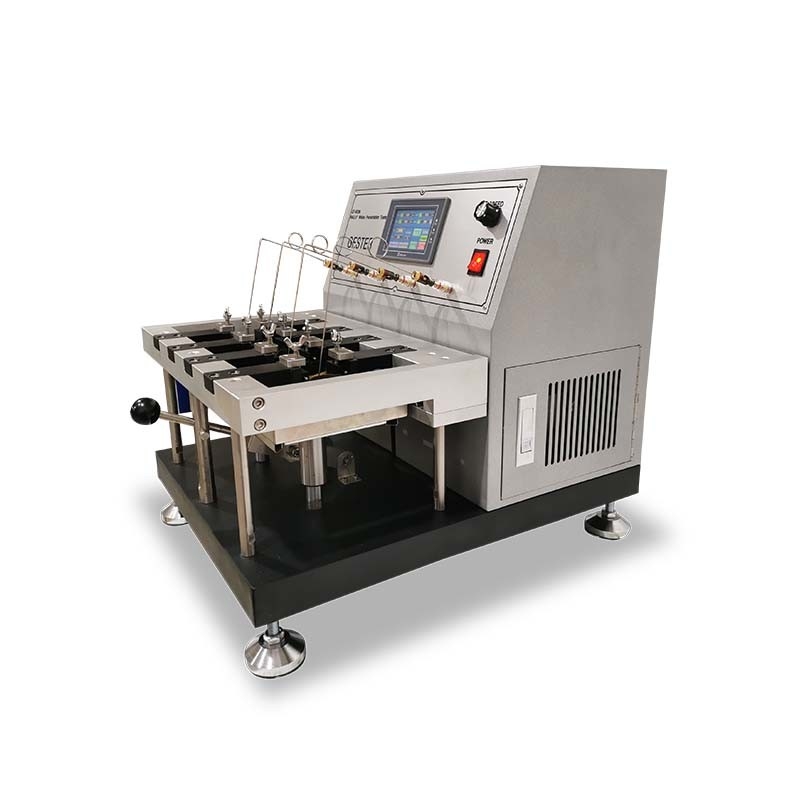

BALLY Water Penetration Tester
ISO 5403-1 Waterproof Testing Machine
Bally Waterproof Testing Machine
Bally Dynamic Water Penetration Tester
Bally Water Penetration Leather Dynamic Waterproof Testing Machine
Application of bally water penetaometer:
This BALLY Water Penetration Tester is used for determining the resistance of leather, artificial leather, fabric and so on footwear upper material to water penetration on flexing, in order to assess the suitability for the end use.
Standards of Bally Waterproofness Tester:
DIN53338, ISO 5403-1, ISO 17702, EN ISO 20344 section 6.13, EN 344-1 section 5.12, EN ISO20347 section 6.3.1, AS/NZS 2210.2 section 6.13, QB/T 3903.17, GB/T20991section 6.13
A rectangular test specimen is bent partly round, and secured between, two cylindrical clamps so as to form a trough. The trough is then immersed in water and the clamps oscillate at a constant speed so that the specimen is repeatedly flexed. The time taken for water penetration through the test specimen to occur is recorded. The mass of water absorbed by, and transmitted through, the test specimen can also be measured.
