Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | HEY15B-2 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 set/month |
| Certificate: | CE, ISO | Suitable Material: | PS, PET, PP |
|---|---|---|---|
| Warranty: | 1 Year | Controller: | PLC System |
| Price: | Factory Price | Color: | Black |
| Highlight: | PET Plastic Flower Pot Thermoforming Machine,Hydraulic Thermoforming Machine,Hydraulic Plastic Thermoforming Equipment |
||
Application

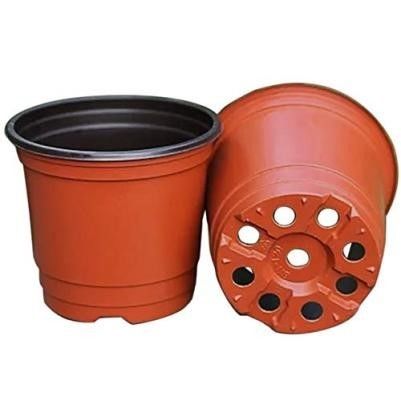

Plastic Flower Pot Thermoforming Machine is mainly for the production of variety plastic containers with holes ( flower pots, fruit containers, lids with hole, package containers, etc) with thermoplastic sheets, such as PP, PET, PS,etc.
Features
Technical Parameter
| Machine Station | Forming, cutting |
| Mechanical Arm | Punching and stacking |
| Max Formed Area | 1200*1000 (mm2) |
| Max Formed Depth | 280-340mm (adjustable) |
| Sheet Width | 800-1200mm |
| Roll Diameter | 800mm |
| Sheet Thickness | 0.2-2.0mm |
| Cycle Per Minute | 8-12 molds/min |
| Air Pressure | 0.6-0.8wpa(3m³/min) |
| Suitable Material | PP/PVC/PS/PET/HIPS |
| Power Consumption | 48KW/Hr |
| Engine Power | ≤210KW |
| Cutting Mode | automatic cutting inside mold |
| Stretching Mode | Servo ( 11KW VAXtron servo motor) |
| Ball crew | TBI Taiwan |
| Total Weight | 6000kg |
| Rack | Square steel(100*100) |
| Dimensions | L5500*W1800*H2800 |
| Power Supply | 380v/50Hz 3 phase 4 lines GB copper wire 90 ㎡ |
Hydraulic and Pneumatic System
| Part | Specification | Place of Origin |
| Oil Pump Motor | 18.5KW | CHINA |
| Flood Valve | SBSG-06G | YUKEN, Japan |
| Reversing Valve | DG-01-3C4-DC24V | YUKEN, Japan |
| Stacked Throttle Valve | VICV-02W | YUKEN, Japan |
| Cooler | XCL-526 | Japan |
Heating Part
| Heating tile arrangement | Vertical and horizontal (Length of cold roll box:3 meters) |
| Heating tile material | Infrared ceramic heating tile(Made in Orchy) |
| Heating tile size | 240*80 220v 650W |
| Heating area | The temperature is divided into 14 sections and the transverse temperature is 1 section |
| Oven Structure | Pneumatic drawer |
Gas Circuit Part
| Part | Specification | Place of Origin |
| Forming solenoid valve |
Two-position Three-way (1.5 inches) |
SMC, Japan |
| Blowing solenoid valve | Two-position Three-way | SMC, Japan |
Electrical Part
| Part | Specification | Place of Origin |
| Feeding Motor | 4KW | Spindle servo |
| Touch Screen/ PLC control | MT6070i/ FX3GA-60MT |
Weinview, Taiwan |
Transmission Part
| Chains | Taiwan |
| Feeding reducer | RV110 |
| Winding device | 0.75KW |
| Winding reducer | NMRV063 I=30 |
| Feeding way | Motor direct transmission |

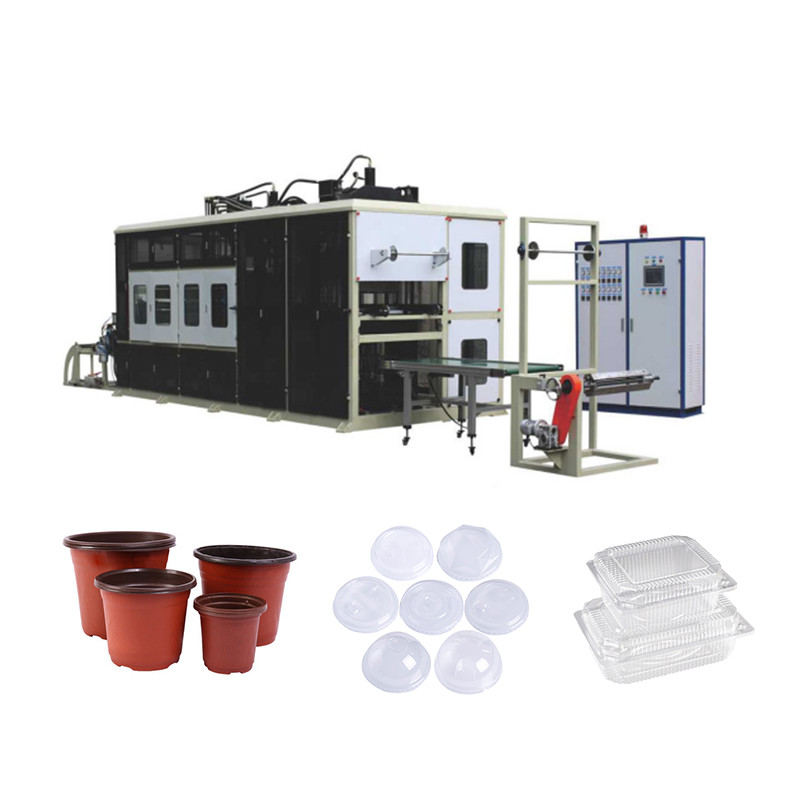

Product Image
