Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-RA13 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Keyword: | Masks Clogging Tester | Service: | Installation And Training Service |
|---|---|---|---|

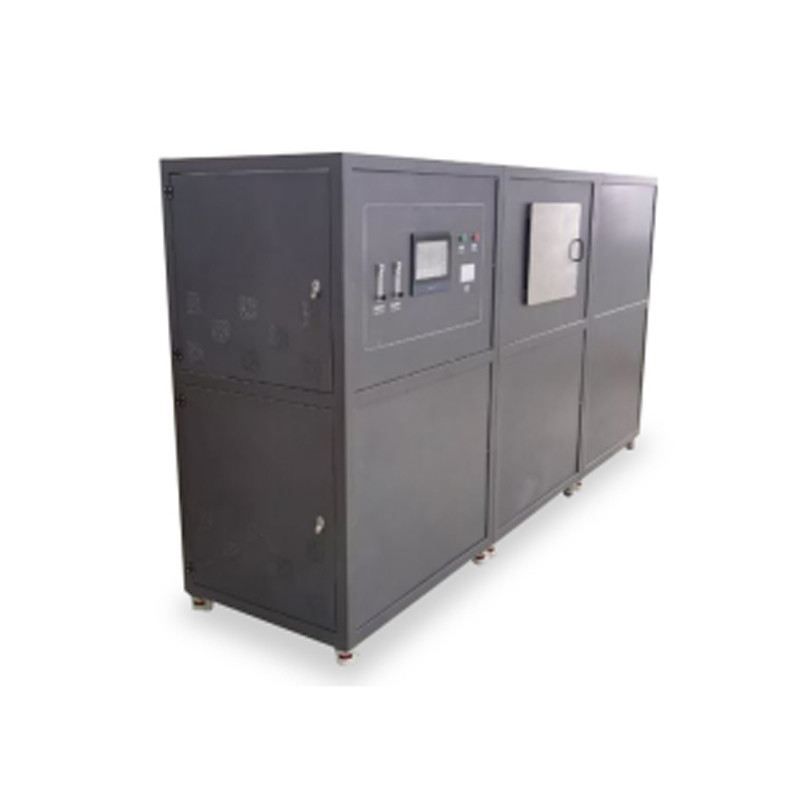

| Name: | EN 149 Masks Clogging Tester | Advantage: | In Stock, Fast Delivery |
| Type: | Mask Testing Equipment | Warranty Period: | 1 Year |
| High Light: | 1KW Mask Test Machine,GT-RA13 Mask Test Machine,1KW Masks Clogging Tester |
||
|
Application: The sample is surrounded by a known concentration of dolomite dust in air. Following the exposure, the breathing resistance and the filter penetration of the sample particle filtering half mask are measured.
Standards:
EN 149 section 8.10
|
|
Model
|
GT-RA13 |
|
Dust
|
DRB 4/5 dolomite |
|
Dust Distributor
|
Particle size range: 0.1μm~10μm Mass Flow Range: 40mg/h---400mg/h |
|
Breathing Machine
|
Displacement:2.0L/stroke Frequency: 10times/min |
|
Exhaled Air Temperature
|
(37±2)°C |
|
Exhaled Air Humidity
|
95％ R.H minimum |
|
Continuous Flow Through the dust chamber
|
60 m3/ h, linear velocity: 4cm/s |
|
Concentration of the Dust
|
(400±100)mg / m3 |
|
Test Chamber |
Inner Dimension: 650 mm×650 mm×700 mm |
|
Airflow: 60 m3/ h,linear velocity: 4cm/s |
|
|
Air Temperature: (23±2)°C |
|
|
Air Humidity: (45±15)％ |
|
|
Respiratory Resistance Measurement Range
|
0～2000Pa, accuracy: 0.1Pa |
|
Power Supply
|
220V, 50Hz, 1KW |
|
External Dimension
|
800mm×600mm×1650mm |
Accessories:
|
Automatic dolomite dust generator |
1pc |
|
Automatic powder feeding center system(Continuous feeding device) |
1set |
|
TSI laser dust particle counter |
1pc |
|
Sinusoidal wave simulates ventilator |
1set |
|
Saturated steam generator |
1set |
