EN1022-17 BIFMA X5.1 Stability Tester For Lounger

small.img.alt
small.img.alt EN1022-17 BIFMA X5.1 Stability Tester For Lounger EN1022-17 BIFMA X5.1 Stability Tester For Lounger small.img.alt EN1022-17 BIFMA X5.1 Stability Tester For Lounger EN1022-17 BIFMA X5.1 Stability Tester For Lounger small.img.alt EN1022-17 BIFMA X5.1 Stability Tester For Lounger EN1022-17 BIFMA X5.1 Stability Tester For Lounger small.img.alt EN1022-17 BIFMA X5.1 Stability Tester For Lounger EN1022-17 BIFMA X5.1 Stability Tester For Lounger small.img.alt EN1022-17 BIFMA X5.1 Stability Tester For Lounger EN1022-17 BIFMA X5.1 Stability Tester For Lounger
Basic Information
Brand Name: GESTER
Model Number: LB06B
Minimum Order Quantity: 1 set
Packaging Details: wooden packaging
Delivery Time: 10-30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets/month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Product Name: BIFMA X5.1 Lounger Stability Testing Machine GT-LB06B BIFMA X5.1 Lounger Stability Testing Machine GT-LB06B: 12 Months
Certificate: ISO 9001, UKAS, CE Standard: ANSI/BIFMA X5.1
Benefit: Installation Training Weights: ≈400Kg
Dimensions: 180x180x90cm Weights Basket: Manual Controlled Lifting
Loading Point Number: 3 Points Price: Factory Price
High Light:

BIFMA X5.1 Stability Tester

,

EN1022-17 Stability Tester

,

Lounger Stability Test Machine

BIFMA X5.1 Lounger Stability Testing Machine GT-LB06B



Application
This machine is suitable for testing seat, office chair, and lounger stability test.





Principle
The sample is placed on the test table, the front foot is blocked with the block. Apply a certain load on the seat surface, apply 20 N of force to the loading point. Check whether the specimen is tilted forward to assess the forward stability of the specimen; also can test the sideways stability and rearward stability.





Standards
ANSI/BIFMA X5.1 - 2017 Section 11.4, EN 1335-3-2009 Section 7.1.2, 7.1.3,
EN1022-17 Section6.3.1,6.3.3, 6.3.4, 6.3.5, 6.3.6, 7.3.1, 7.3.2, EN 16139 Section 4.3.2





Key Specification

Model GT-LB06B
Test load 600N (135 lbf.) (Accumulated weight)
Loading point number 3 points
Loading point Seat surface center, 60mm from front edge
Weights basket Manual controlled lifting
Seat surface load pad Diameter:200mm, camber surface: R300mm
Loading rod Diameter 19mm
  End A type: Spherical SR19mm
    B type: 45°Taper
Dimensions 180x180x90cm
Weights ≈400Kg
Standard Accessories

Weights basket 3 pcs

Seat surface load pad 3 pcs

600N Load weights 3 set

Weights holding device 3 pcs

Optional Accessories

FB-200N IMADA push pull scale

500N Load weights for EN 1335-3-2009 Section 7.1.3





Product Image

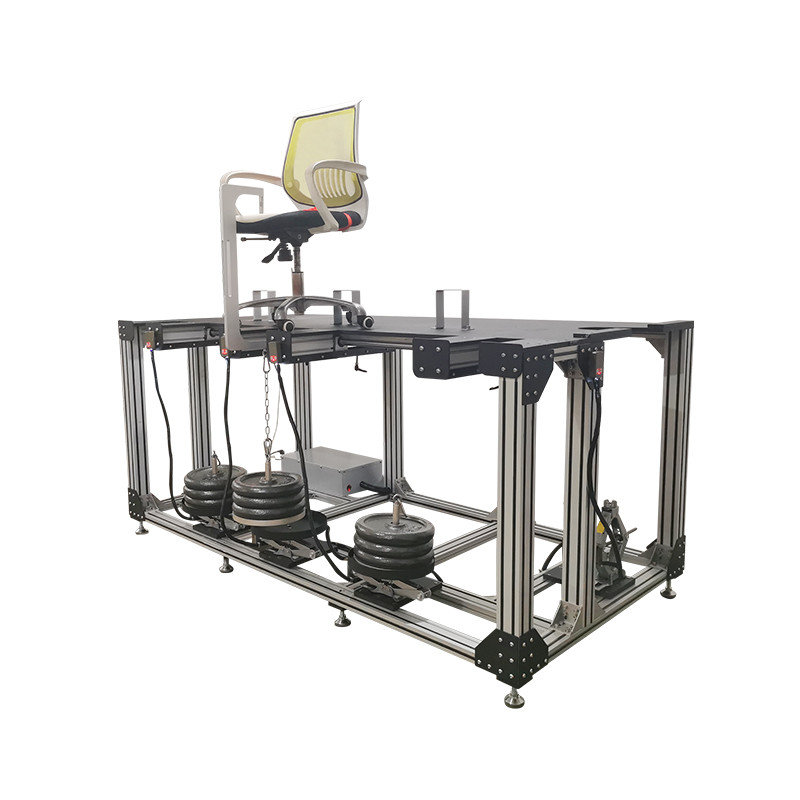

EN1022-17 BIFMA X5.1 Stability Tester For Lounger 0
