Gester International Co., Ltd
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE,ISO |
| Model Number: | GT-KB03 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Product Name: | Rotary Drum Din Abrasion Resistance Tester | Model: | KB03B |
|---|---|---|---|
| Certificate: | CE,ISO | Warranty: | 1 Year |
| Standards: | DIN-53516, SATRA TM174 | Application: | Elastic Material, Rubber, Tires, Conveyor Belts Etc |
| Type: | Rubber DIN Abrasion Tester | Color: | Black And Gray |
| Key Words: | Din Abrasion Resistance Tester | Price: | Factory Price |
| Highlight: | din abrasion resistance tester,rotary drum abrasion resistance tester,abrasion resistance tester din |
||

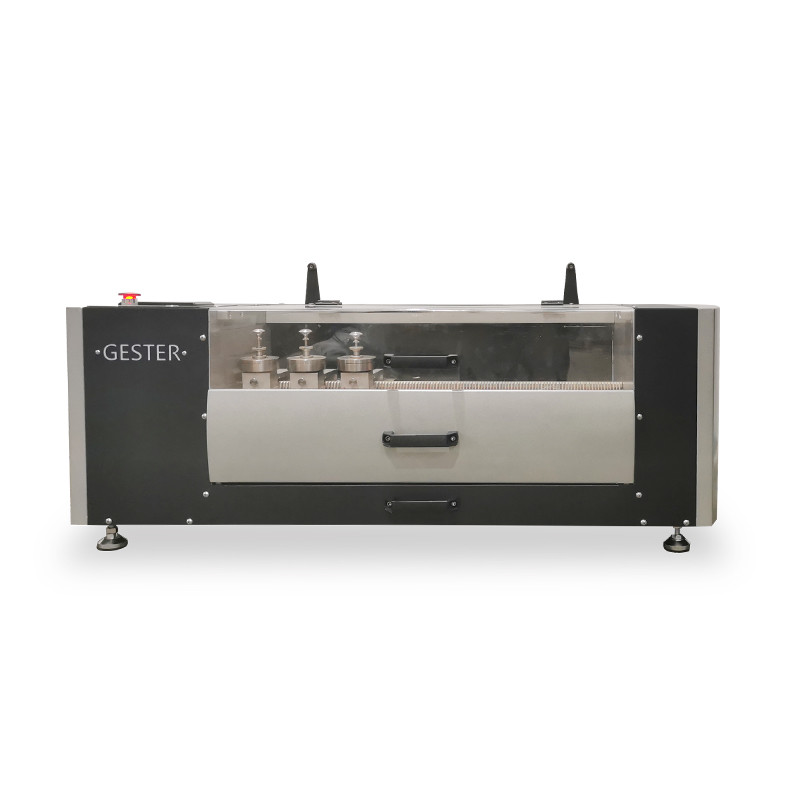

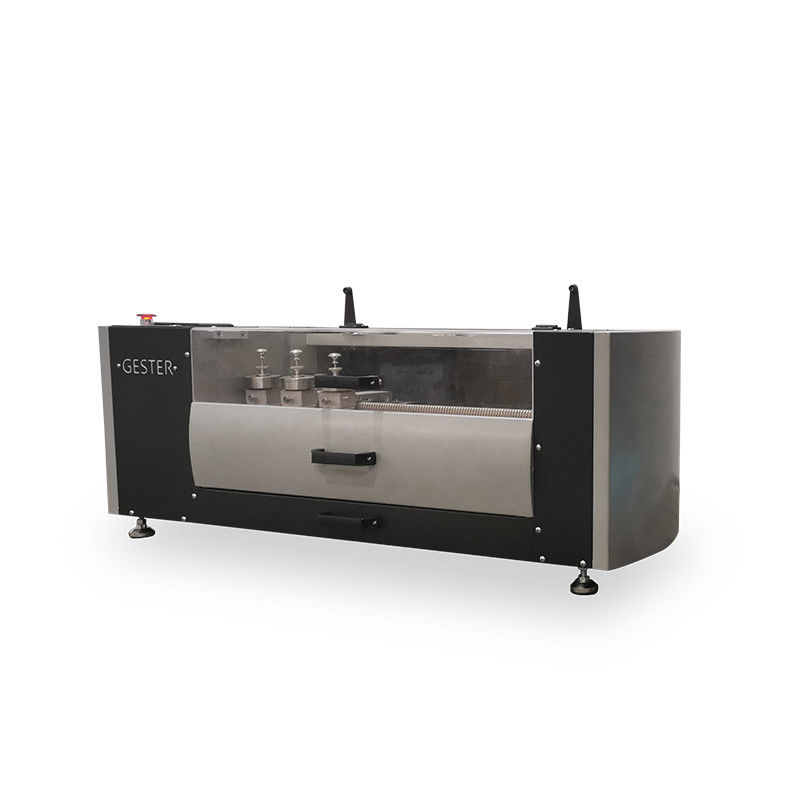

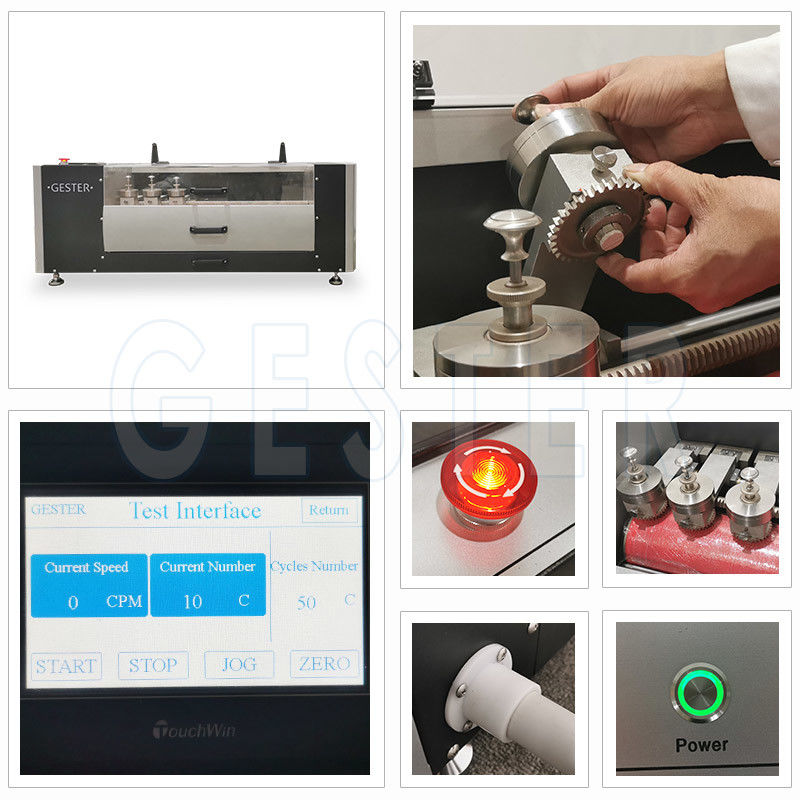

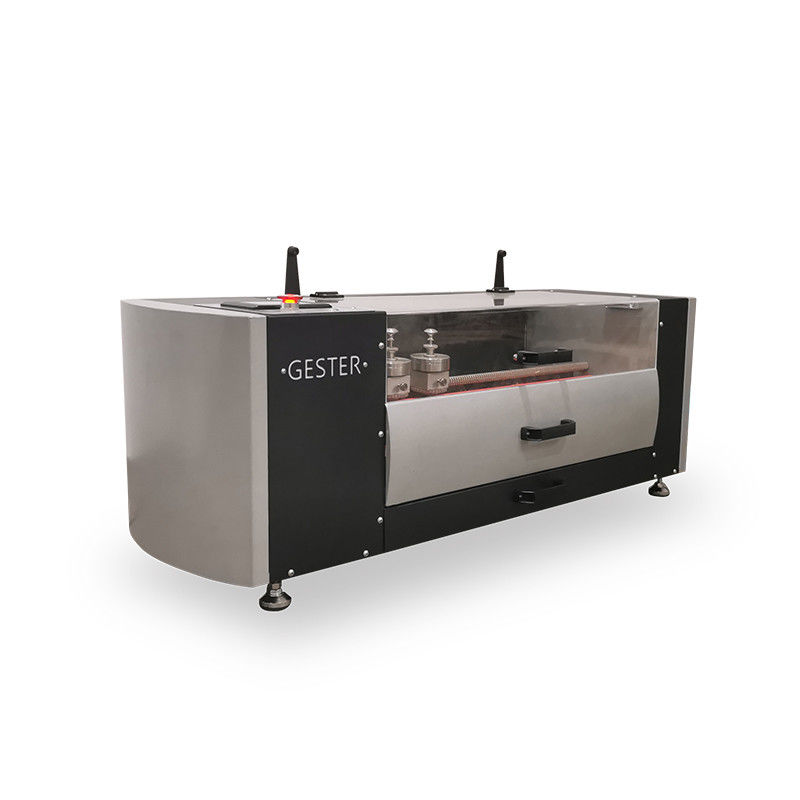

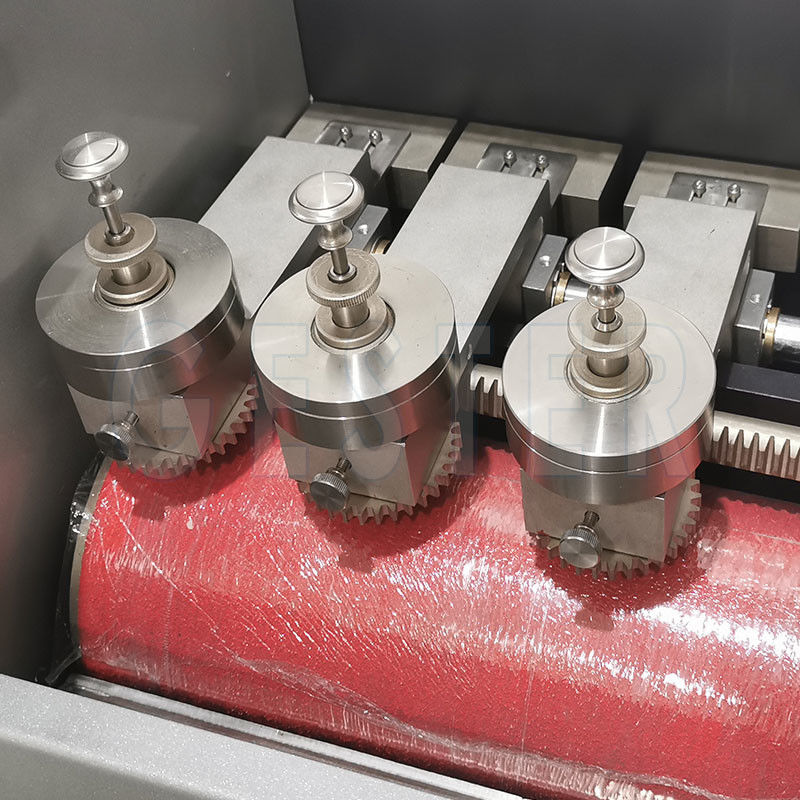

New Style Electrical Rotary Drum Din Abrasion Resistance Tester
| Model | GT-KB03B-1 | GT-KB03B-3 |
| Test positions | 1 | 3 |
| Control Mode | Touch screen controlled | |
| Diameter of wear wheel | 150mm | |
| Specimen dimension | ø16.2 mm x thickness 6-10 mm | |
| Specimen moving speed | 4.2 mm/r | |
| Weights | Holder 2.5N, can be used arbitrarily with optional accessory 2.5N, 5N (each for one) | |
| Wear wheel speed | 40±1rpm | |
| Inclination angle | 3°, Test piece support shaft of test piece becomes vertical angle with roller. | |
| Grit size of sandpaper | #60 | |
| Roller length | 460mm | |
| Wear stroke | 40m | |
| Power supply | 1∮AC 220V 50/60HZ 3A | |
Accessories
| Standard accessories | 1Set | 2.5N weights |
| 1Set | 5N weights | |
| 1pc | P60# standard abrasive paper | |
| 1pc | Standard cutting die | |
| 1pc | Metal blob(Grinding head) | |
| 1pc | Power line | |
| 1Set |
Vacuum cleaner (*Not supply, would suggest to purchase in your local.) |
|
| Option accessories | Optional |
GT-G203H Electronic balance (210g,accuracy 1mg)
|
| Optional | Standard rubber |
