Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-C34A |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 set/month |
| Power: | AC220V | Usage: | Determining The Horizontal Burning Rate Of Materials |
|---|---|---|---|

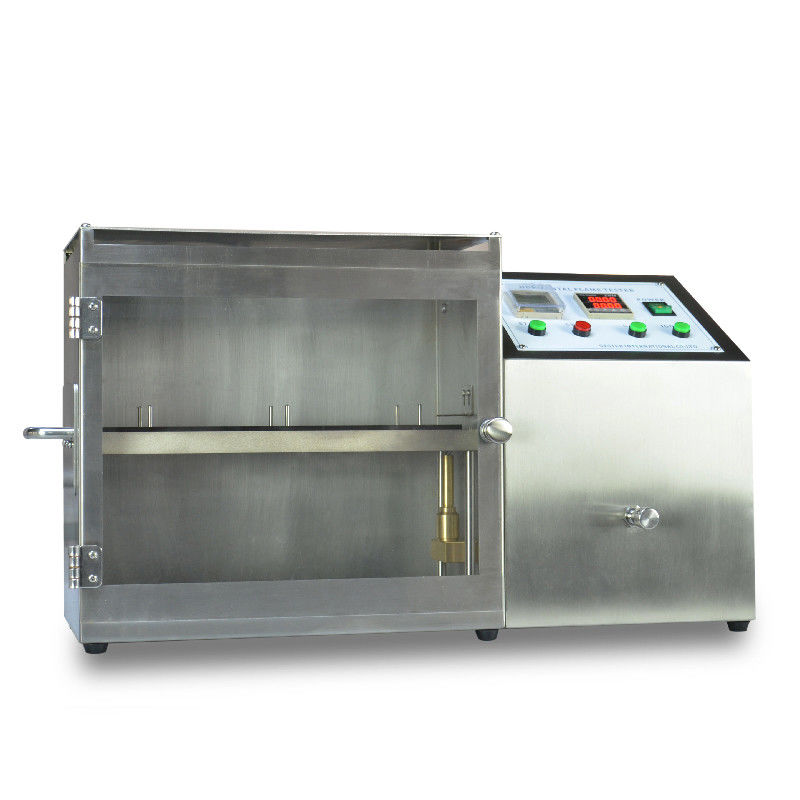

| Product Name: | Horizontal Flammability Tester | Warranty: | 12 Months |
| Advantage: | Factory Direct Sale | Service: | Online Support, Installation And Training |
| High Light: | ISO 3795 Textile Testing Machine,Horizontal Flammability Textile Testing Machine,ISO 3795 Horizontal Flammability Tester |
||
|
Application of horizontal flame chamber: Horizontal Flammability Tester; Mainly used for determining the horizontal burning rate of materials used in the occupant compartment of road vehicles ( for example, passenger cars, lorries/trucks, estate cars, coaches ), and of tractors and machinery for agriculture and forestry, after exposure to a small flame. Standards of horizontal flame chamber: ASTM D5132, ISO 3795, FMVSS 302 , JIS D1201, FZ/T 01028, GB/T 8410, GB/T20953, SAE J369, GMW3232 |
| Time range | 0-999.9s |
| Time resolution | 0.01s |
| Ignition time | 15s |
| Specimen fixture | U shape, inner size: 330×50mm |
| Size of specimen | 356 x 100mm thickness less than 13mm |
| Burner angle | Vertical |
| Inner diameter of burner head | ￠9.5mm |
| Ignition height (burner top to specimen ) | 19mm |
| Flame height | 38mm+/-2 |
| Power supply | AC 220V 50/60HZ |
| Dimensions | 450 x 310 x 510mm (L x W x H) |
| Weight | 30kg |
Accessories:
| Standard accessories | 1pc | Sample holder |
| 1pc | Power line |
