Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-C01-1 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Product Name: | Electromechanical Utm Universal Tensile Strength Comprehensive Tester (Dual Column) For Fabric Rubber | Place Of Origin: | Fujian, China |
|---|---|---|---|
| Power Supply: | AC 220V 50/60HZ 10A | Weight: | 140kg |
| Force Resolution: | 1/100,000 | Test Speed: | 0.01-1000mm/min, Can Set By Computer |
| High Light: | Electromechanical UTM Tester,Dual Column UTM Tester,Fabric UTM Testing Machine |
||

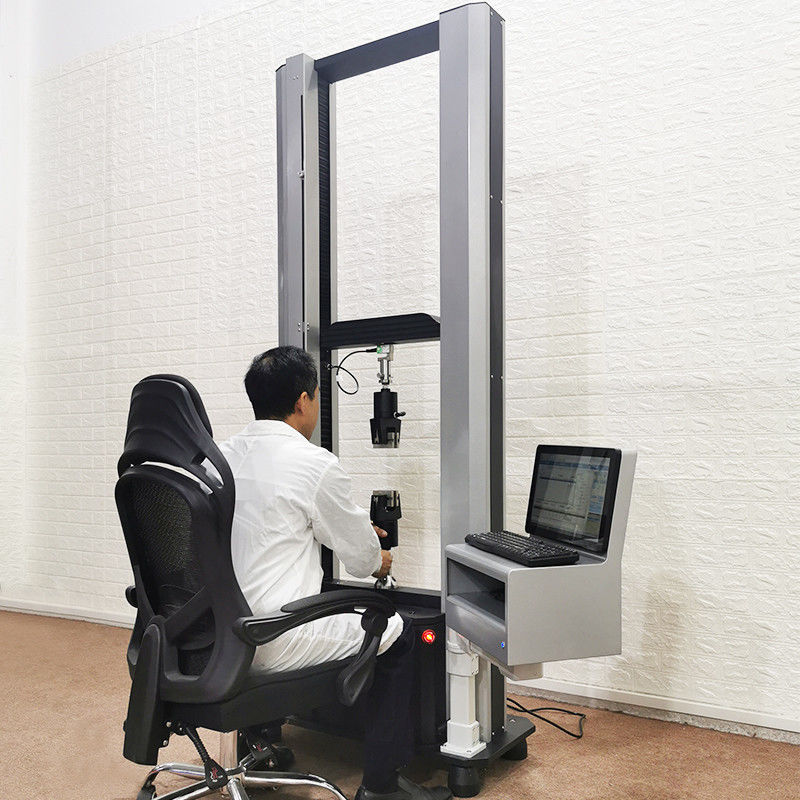

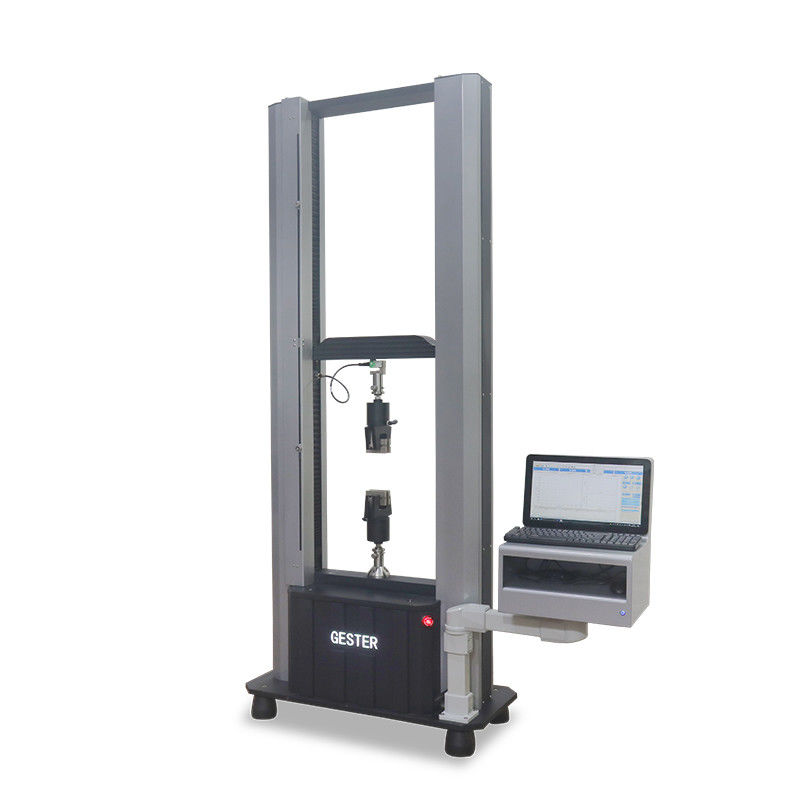

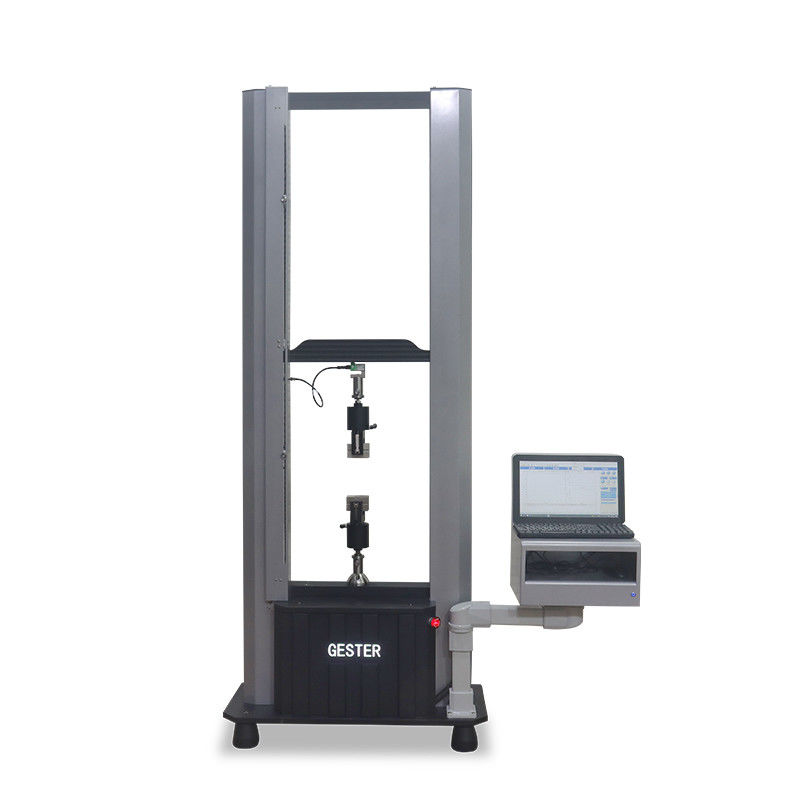

Electromechanical Utm Universal Tensile Strength Comprehensive Tester (Dual Column) For Fabric
Application
This is designed for conduct tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for rubber, plastic, leather, metal, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials. It is a basic equipment of quality control, receiving inspection, physical test, mechanics research, material development.
1. Adopt AC servo drive system, Taiwan gear reducer, synchronous pulley, TBI precision ball screw components make instrument beam move stable with low noise & high precision of extension.
2. Adopt aluminum alloy column shell, deal with high temperature & solidify injection on the machine surface will never fade.
3. This machine adopt many kinds of protection measures:
a. Beam’s limit cams protecting device
b. Clamp touch avoid protecting device
c. Set up protection on displacement & load software
d. Sensor overload protection
e. Sample load software protection
f. Overcurrent & overvoltage protection
4. Real time supervision to main parts, more safe & reliable while using machine.
5. This machine adopt open system: user can edit test program, data analysis formula, test report according to test material’s category, character and test methods requires.
6. This machine provide many kinds of humanity automatic mode.
7. While using electronic clamp, trial initiation can set as clamp grip autostart or pre-tension auto grip start. It also set as clamp auto open after finished test.
8. This machine also can set clamping distance and auto location.
9. The distance of scraping can be set freely.
ISO13934-1, 13934-2, 13935-1, 13935-2, 13936-1, 13936-2, 13936-3, 13937-2, 13937-3, 13937-4, 1421, 2411, 2062, 4674-1, 5082, 9073.3, 9073.4, 9073.18
ASTM D 434, D751, D885 , D1683, D2256, D2261, D2724, D2731, D3787, D4034, D4964, D5034, D5035, D5587, D5733, D5735 .
BS 2543, 2576, 3320, 3424, 4303 ,
M&S P11, P12, P13, P14
JIS L1096
Key Specification
| Model | GT-C01-1A | GT-C01-1B | |
| Max. Capacity | 5KN | 10KN | |
| Display | Computer Display Mode | ||
| Force Resolution | 1/100,000 | ||
| Force Accuracy | ≤+/-0.2% | ||
| Stroke Resolution | 0.001 mm | ||
| Test Speed | 0.01-1000mm/min, Can Set by Computer | ||
| Stroke Space | 1400mm | ||
| Gantry Structure Width | 400mm | ||
| Stop Mode | Overload Stop, Emergency Stop Button, Specimen Damage Automatic Stop, Upper & Lower Limit Set Automatic Stop, Automatic Return Function | ||
| Machine Drive | Servo Motor Drive, Synchronous Wheel and Precision Ball Screw Drive | ||
| Dimensions(WxDxH) | 820x630x1800mm 820x630x1600mm | ||
| Power Supply | AC 220V 50/60HZ 10A | ||
| Weight | 140kg | ||
|
Accessories |

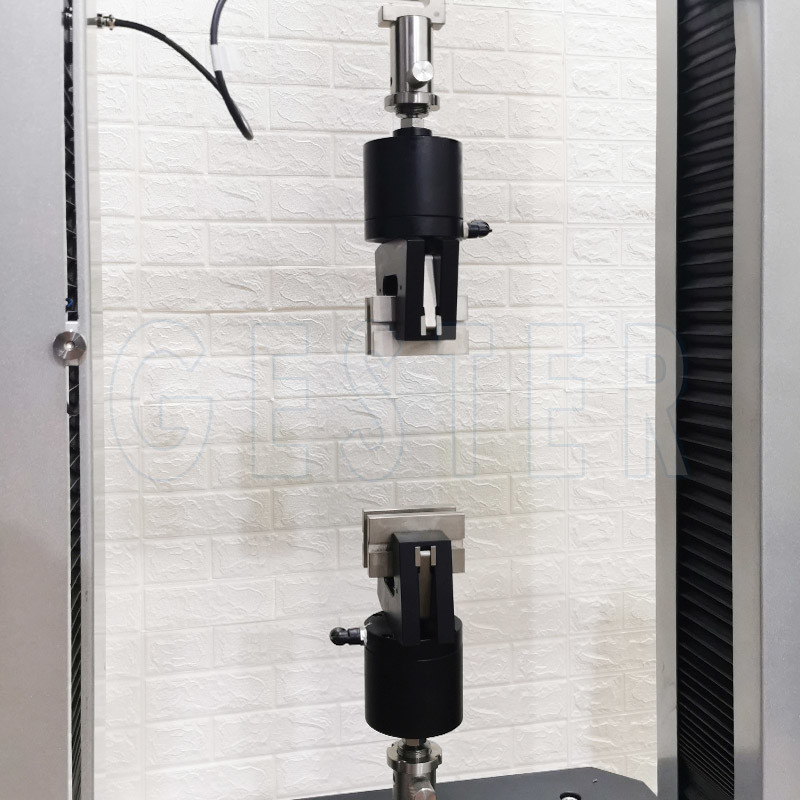

1set | Pneumatic Grips |
| 1pc | English Operation Software | |
| 1pc | Cable Connect with PC | |
| 1pc | Load Cell | |

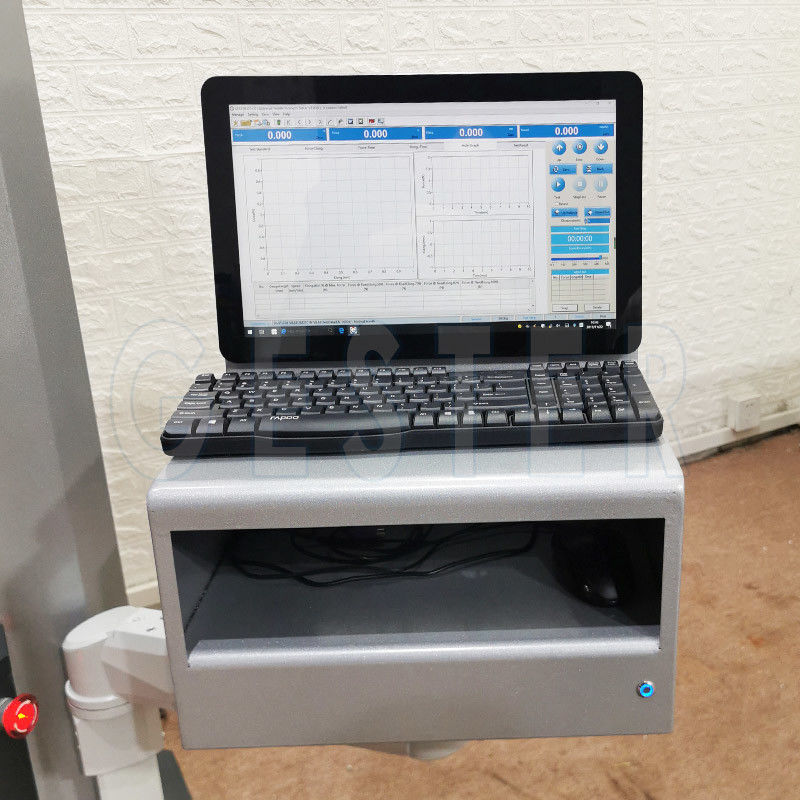

| 1set | Computer | |
|
Optional accessories
|
Optional | Load Cell 50N,100N,250N,500N,750N,1KN,2.5KN |
| Optional | Other Grips |
