Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-RA16 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Product Name: | Dry State Lint Tester | Usage: | Protective Clothing Tester |
|---|---|---|---|
| Warranty: | 1 Year | Power Supply: | 220V 50Hz |
| Standards: | ISO 9073-10, DIN EN 13795-2 | Stock: | In Stock |
| High Light: | DIN EN 13795-2 Protective Clothing Testing Equipment,GT-RA16 Protective Clothing Testing Equipment,GT-RA16 Dry State Lint Tester |
||
|

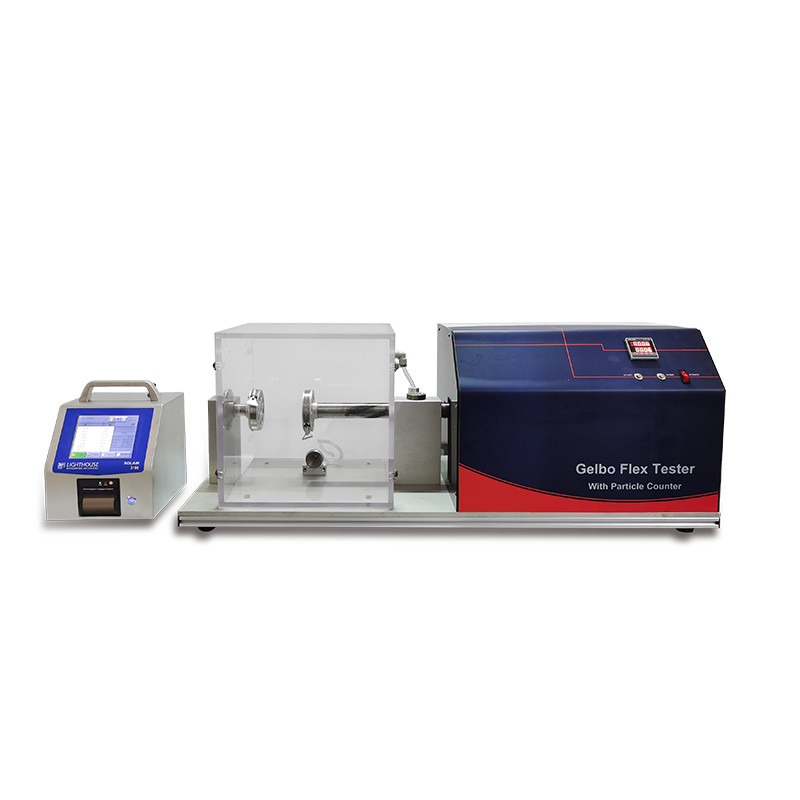

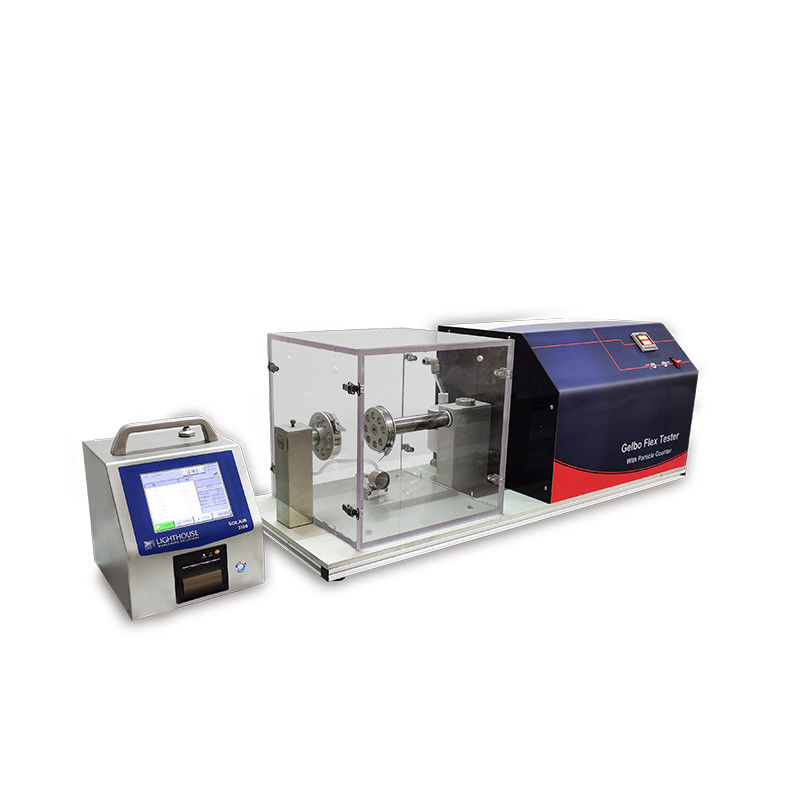

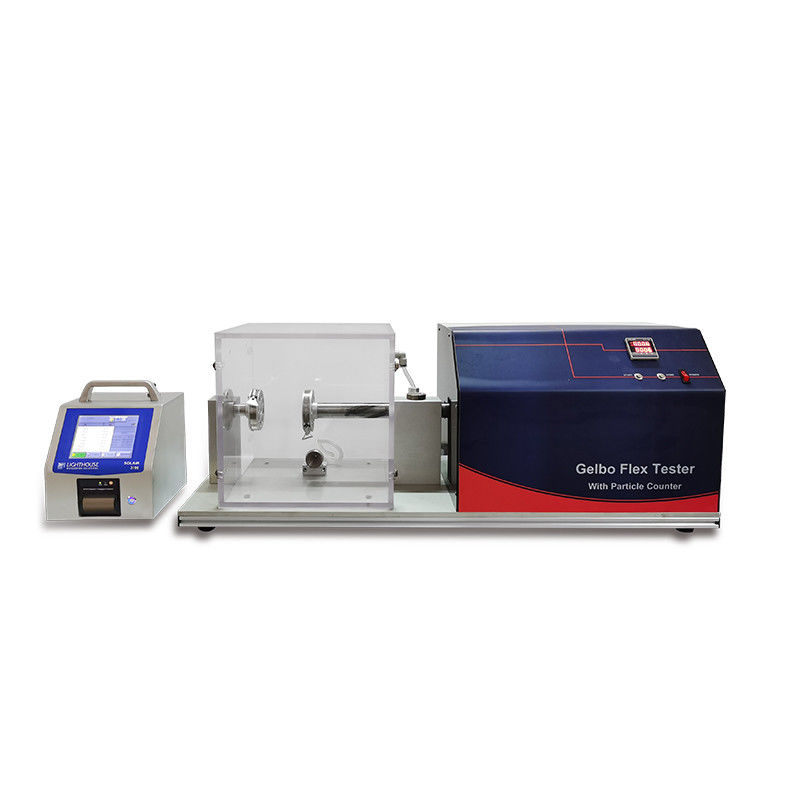

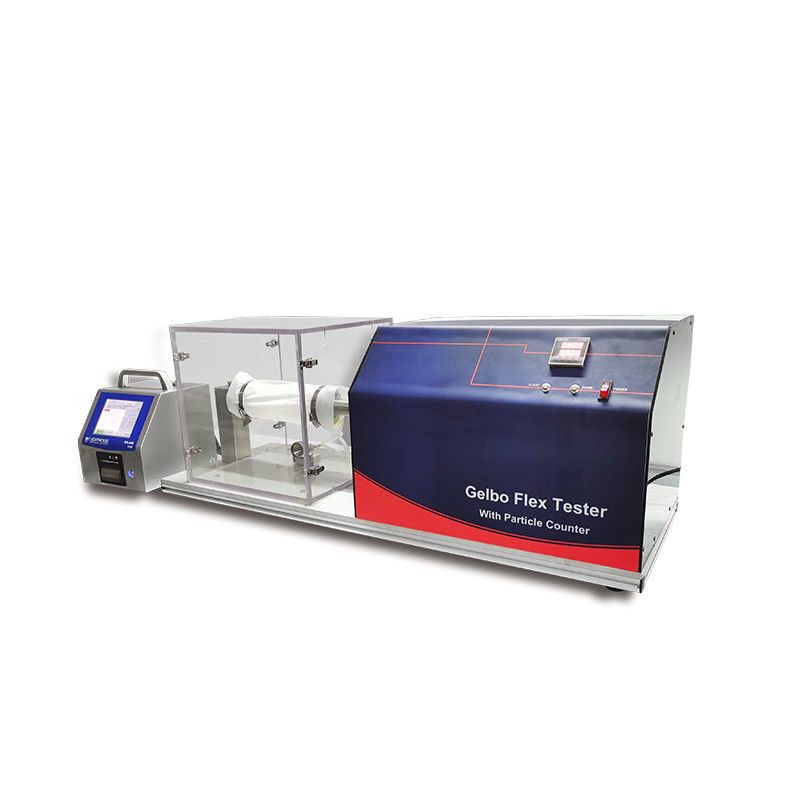

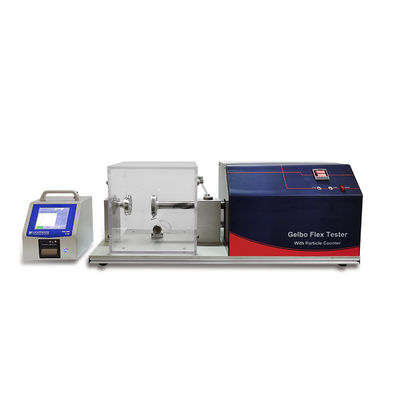

Application: Dry State Lint Tester to test the coefficient of linting and other particle s generation of surgical drapes, gowns and clean air suits for patients, clinical staff and equipment in the drying state.
Standards: ISO 9073-10, INDA IST 160.1, DIN EN 13795-2, YY/T 0506.4 |
|
Model |
GT-RA16 |
|
|
Diameter of the round plate |
Φ82.8㎜ |
|
|
Reciprocating frequency |
60times/ min |
|
|
Rotating Angle |
180°/time (clockwise & anticlockwise alternating) |
|
|
Max start distance of 2 round plates |
(188±2)㎜ |
|
|
Straight stroke of the dynamic plates |
(120±2)㎜ |
|
|
Size of anti-static electricity test chamber |
300mm×300mm×300mm |
|
|
Diameter of air collector sampling end |
(40±5)㎜ |
|
|
Laser dust particle counter |
Measure range of particle size |
0.3μm～25μm |
|
8 Test channel |
0.3μm, 0.5μm, 0.7μm, 1.0μm, 2.0μm, 3.0μm, 5.0μm, 10.0μm |
|
|
Air flow speed |
(28.3±1.4)L/min |
|
|
Sampling period |
1~59min59s optional |
|
|
Print function |
Insert printer, can print counting result |
|
|
Max collector concentration |
35,000 particles/L |
|
|
Power supply |
AC 220V 50Hz |
|
