Gester International Co., Ltd
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-KB55 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Certificate: | CE, ISO | Warranty Period: | 12 Months |
|---|---|---|---|
| Specification: | 400*400*500(mm) | Weight: | 30kg |
| Control: | LCD | Power Supply: | AC220V |
| Key Words: | Shoe Steel Shank Resistance Tester | Advantage: | Factory Direct Sales |
| High Light: | LCD bending resistance tester,shoe steel shank resistance tester,shoe steel shank bending resistance tester |
||

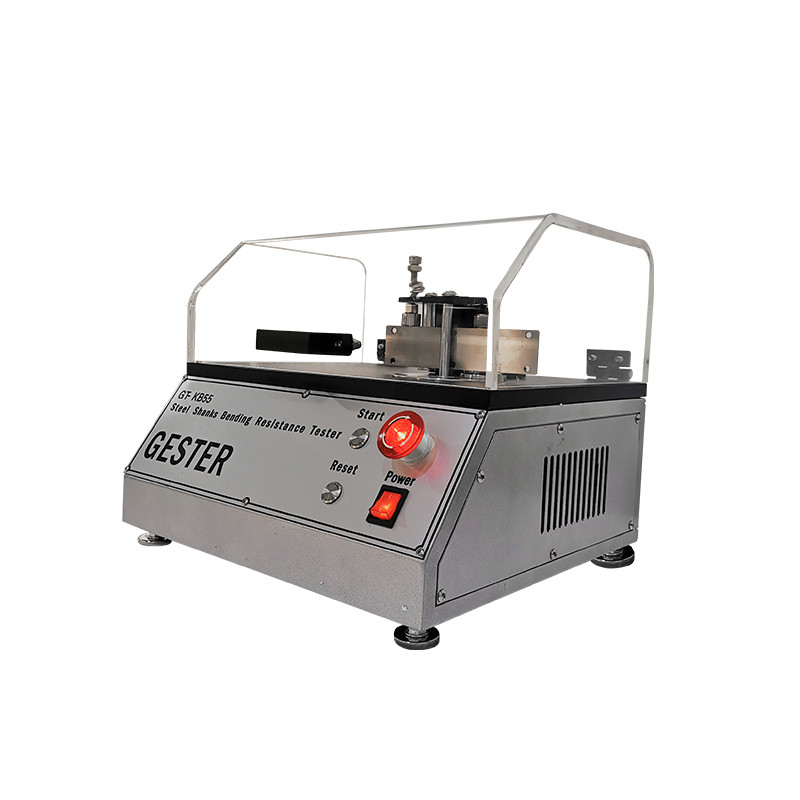

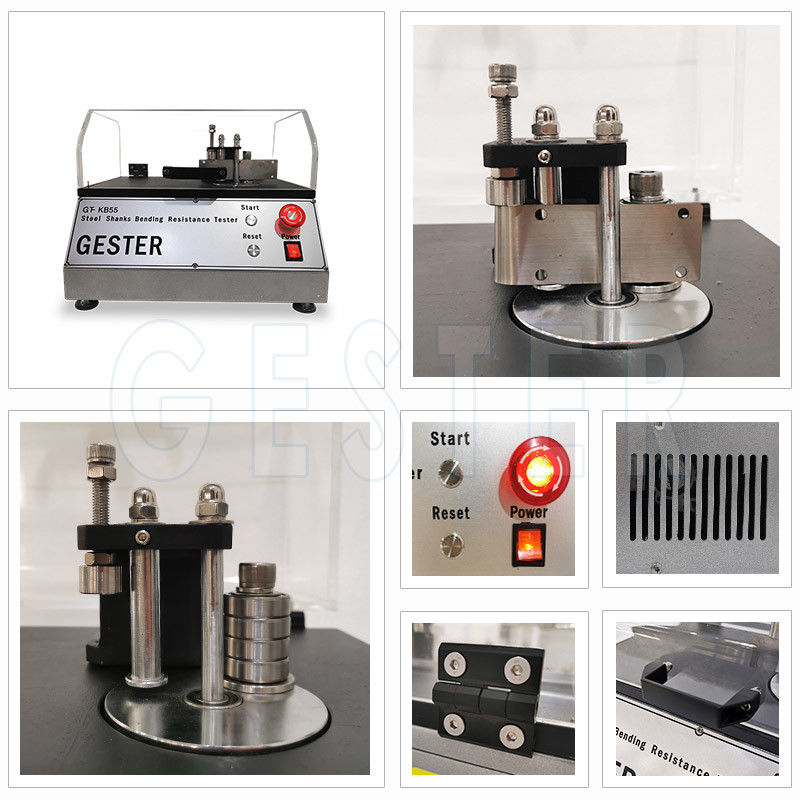

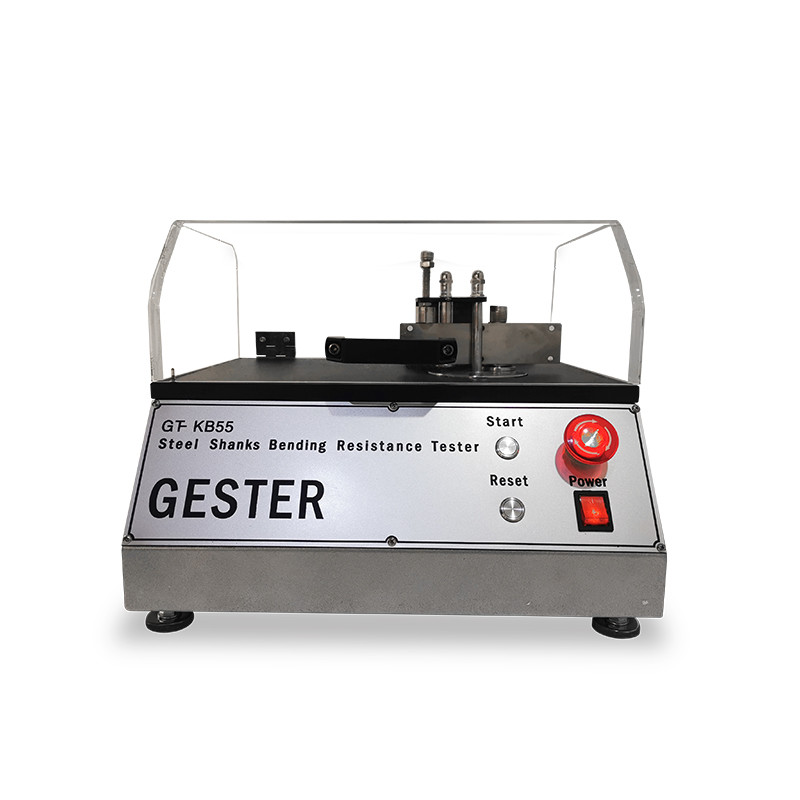

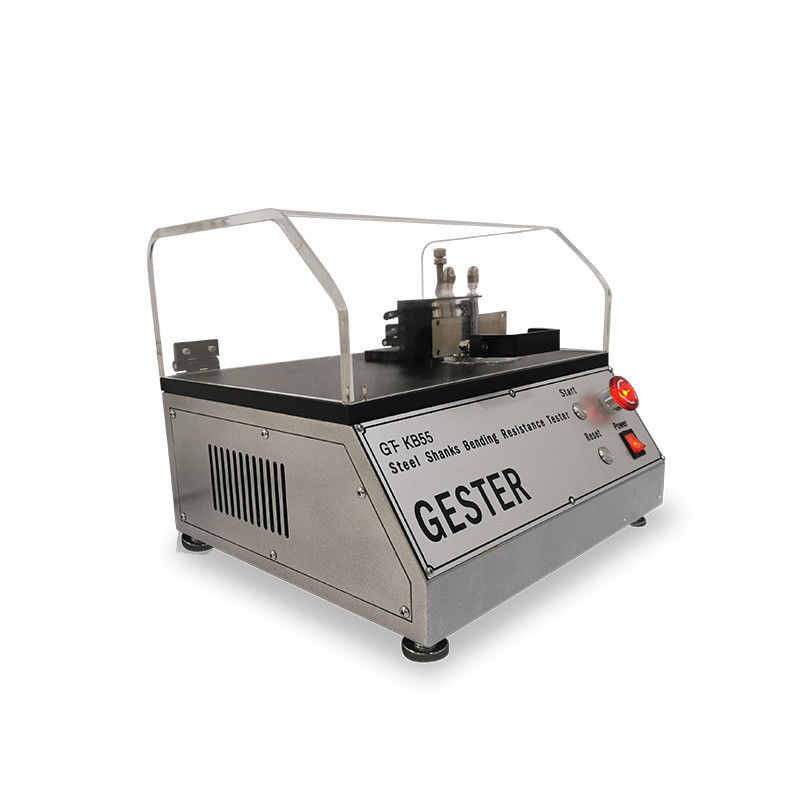

Digital Lab Shoe Steel Shanks Bending Resistance Tester
Application
To determine bending resistance of shoes steel shank. Insert the steel shank into the fulcrum, the center column and the center of roller, and make the upper surface of the middle part of the shank close to the center column (φ10 mm). Perform a 180 bending test for the fulcrum, visually check whether the hook is broken and observe the crack condition on the surface.
Key Specification
| Model | GT-KB55 |
| Drive mode | Motor |
| Bending angle | 180° |
| Center column diameter | φ10 mm |
| Power supply | 1∮AC 220V 50/60HZ |
| Dimensions(W×D×H) | About 400 ´ 400 ´ 500 mm |
| Weight | About 30kg |
| Standards | GB/T 28011-2011 Section 7.8 |
Accessories
| Standards accessories | 1pc | Power line |
