Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-N02D |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200sets/month |
| Warranty: | 12 Months | Power Supply: | 220V 50Hz |
|---|---|---|---|
| Accuracy: | ±0.5% | Price: | Best Price |
| Color: | Black | Capacity: | Optional |
| High Light: | 100KN Packaging Testing Equipment,1200mm Packaging Testing Equipment,100KN Carton Compression Tester |
||

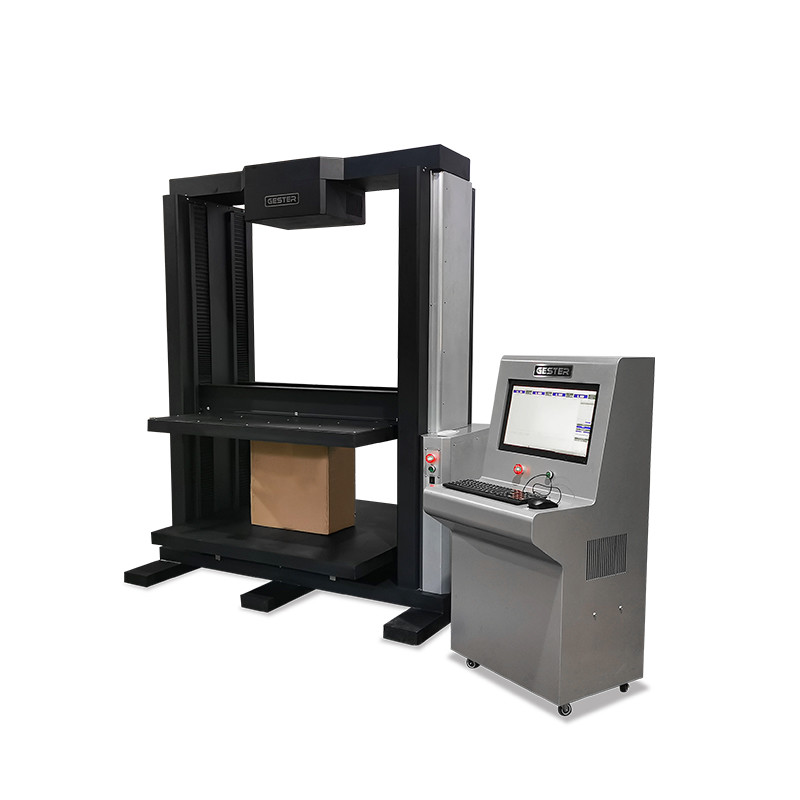

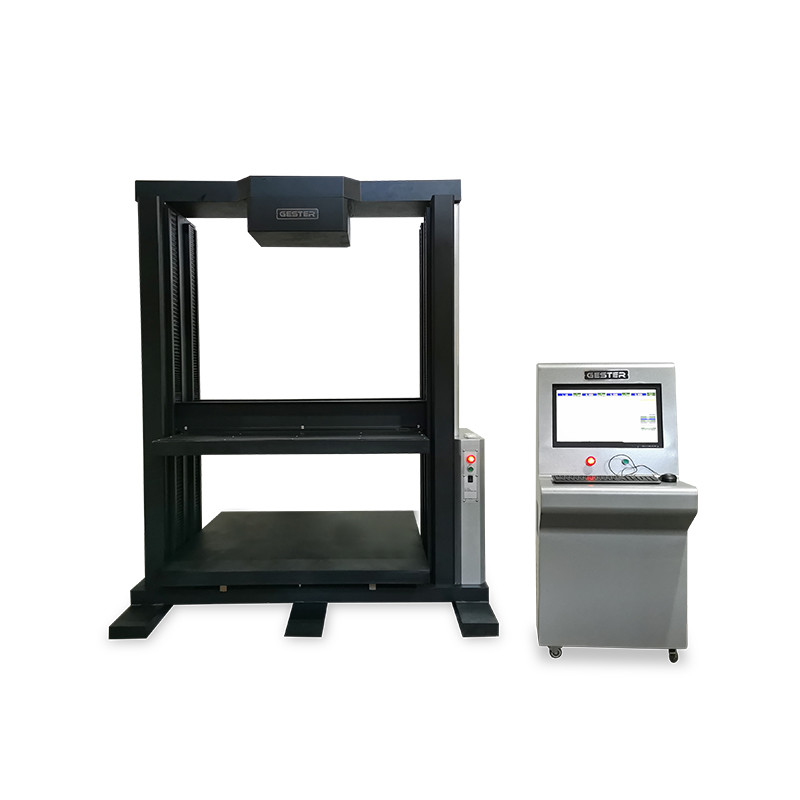

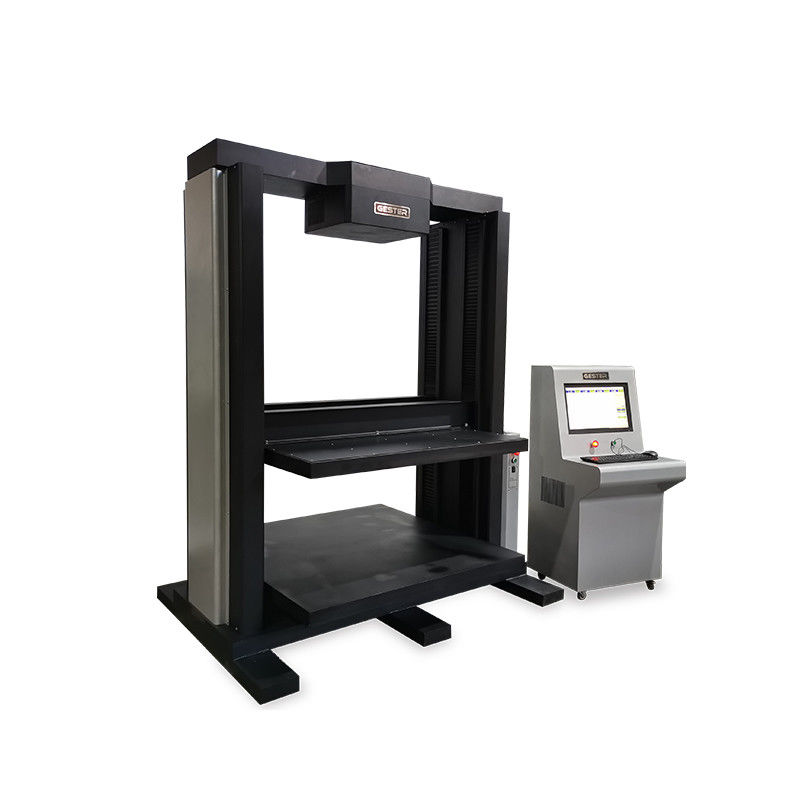

Four-column Carton Compression Tester (computer control) GT-N02D
|
Application: This computer control Carton Compression Tester uses high-precision force sensor to test the resistance value of pressure and display it directly. The most direct equipment for testing the pressure resistance of containers made of cardboard or other materials. It is used to determine the cargo capacity and stacking height of the carton. It is suitable for the compression and holding test of various packages and cartons. The test results can be used as an important reference for the stacking height of the finished packaging box or an important basis for packaging box designing.
box compression test Standards: ISO2872, ISO2874, ASTM D642 , TAPPI T804 |
| Model | GT-N02D |
| Test Space | 1600×1600×1600mm (can be customized) |
| Capacity | 30KN, 50KN, 70KN, 100KN (optional) |
| Accuracy | ±0.5% |
| Unit | International units(switch freely) |
| Control System | Motor + servo system |
| Induction Mode | High precision load cell |
| Display | Computer screen display |
| Test Speed | 0.001-500mm/min adjustable (standard speed 12.7mm/min) |
| Return Speed | 0.001-500(adjustable) |
| Holding Function | With Holing Function(holding time / weight can be set) |
Accessories:
| High precision ball screw | 1set | Taiwan HIWIN high precision ball screw |
| Load sensor | 4pcs |
GESTER bridge type sensor with high linearity and 0.5% accuracy |
| Motor and Servo System | 1set | A set of Taiwan Delta servo motor to control displacement accuracy achieve 0.001mm |
|

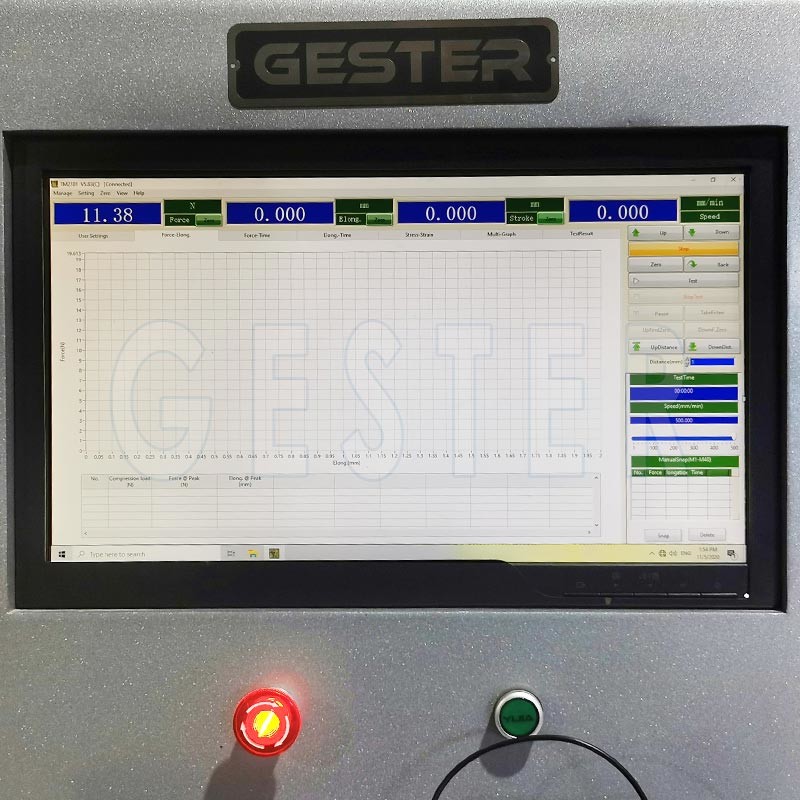

Chinese version Professional Test Software Based on Windows System |
1set | GESTER's self-developed system,equipped with a set of driver CDs, which can be installed on any computer. |
