Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE , ISO |
| Model Number: | GT-KC10C |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets/month |
| Keyword: | Low Temperature Flexing Tester For Footwear | Service: | Online Support, Installation And Training |
|---|---|---|---|
| Name: | Low Temperature Flexing Tester | Type: | Shoe Testing Machine |
| Warranty Period: | 1 Year | ||
| High Light: | touch screen flexing tester,touch screen Shoe Testing Machine,CE flexing tester |
||

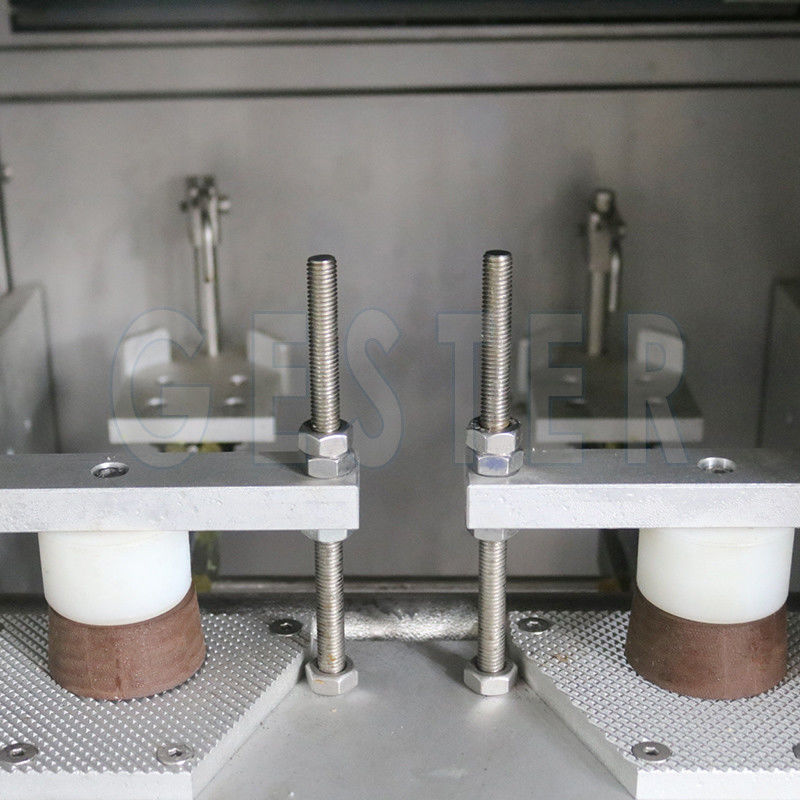

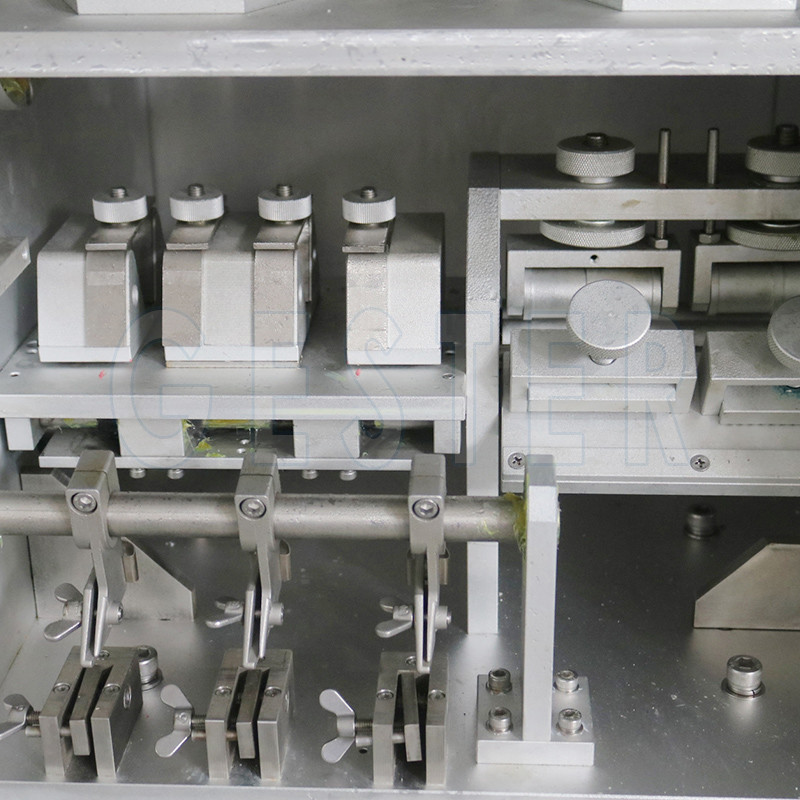

Low Temperature Flexing Tester To determine the resistance of a material to cracking or other types of failure at flexing creases. The method is applicable to all flexible materials and in particular leathers, coated fabrics and textiles used in footwear uppers.
| Model | GT-KC10C | ||||
| Flexing Parameters | Types of Test Grips | Whole shoes flexing test grips
| Upper flexing test grips | ROSS flexing test grips | Bally flexing test grips |
| Number of Position | 2Sets | 2Sets | 2Sets | 3Sets | |
| Flexing Speed | 140cpm | 300cpm | 60cpm | 100cpm | |
| Bending Speed | 0-90° (Adjustable) | / | 90° | 22.5° | |
| Counter | Touch Screen, 0 - 999,999.( Adjustment) | ||||
| Control System | Touch Screen Programmable Microprocessor Control | ||||
| Temperature Range | -40~100℃ | ||||
| Inside Chamber Capacity | 150L | ||||
| Chamber Material | SUS # 304 Stainless Steel and Painted | ||||
| Power Supply | 1∮AC220V 50/60HZ | ||||
| Weight | 500kg | ||||
Standards:
| ||||||||||
| ||||||||||
Standard Accessories:
| For whole shoes flexing test | 1set | Plastic pad |
| 1set | Heel clamp | |
| For ROSS flexing test | 1pc | Chisel cutter (2mm) |
