Biodegradable Corn Starch Plastic Thermoforming Machine For Food Packaging Container

small.img.alt
small.img.alt Biodegradable Corn Starch Plastic Thermoforming Machine For Food Packaging Container Biodegradable Corn Starch Plastic Thermoforming Machine For Food Packaging Container small.img.alt Biodegradable Corn Starch Plastic Thermoforming Machine For Food Packaging Container Biodegradable Corn Starch Plastic Thermoforming Machine For Food Packaging Container
Basic Information
Place of Origin: China
Brand Name: GESTER
Certification: CE, ISO
Model Number: HEY01
Minimum Order Quantity: 1 set
Packaging Details: wooden packaging
Delivery Time: 10-30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 set/month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Warranty: 1 Year After-sales Service Provided: Online Support, Video Technical Support
Price: Factory Price Condition: New, TradeAssurance
Max. Machine Dimension(L*W*H): 11150×2300×2700mm Weight Of Whole Machine: ≈11T
High Light:

Corn Starch Plastic Thermoforming Machine

,

Biodegradable Plastic Thermoforming Machine

,

Corn Starch Plastic Thermoformer

High Speed Biodegradable Corn Starch Plastic Food Packaging Containers Thermoforming Machine

Application

Mainly for the production of variety plastic containers ( egg tray, fruit container, food container, package containers, etc) with thermoplastic sheets, such as PP,APET, PS, PVC, EPS, OPS, PEEK, PLA, CPET,etc.

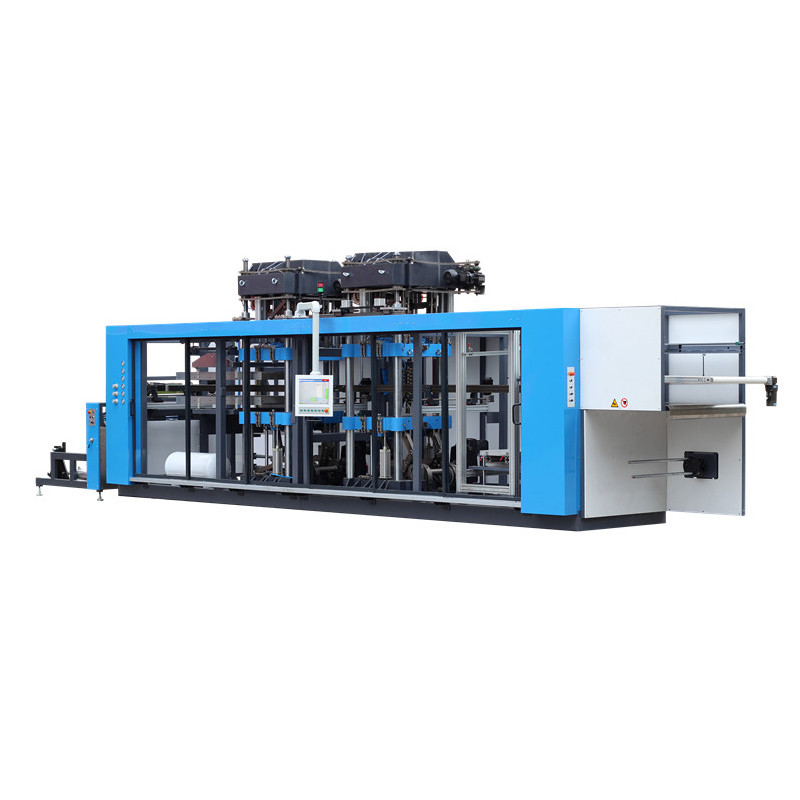

Biodegradable Corn Starch Plastic Thermoforming Machine For Food Packaging Container 0







Features

1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC.

Touch screen makes the operation convenient and easy.

2. Pressure And/Or Vacuum forming.

3. Upper and down mould forming.

4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.

5. Upper & lower heater, four sections heating.

6. Heater with intellectual temperature control system,which has high precision, uniform temperature, won’t be effected by outer voltage. Low power consumption (energy saving 15%), ensure the longer service life of heating furnace.

7. Forming and cutting unit mold open and close controlled by servo motor, products automatically count.

8. Products be stacked downward.

9. Data memorization function.

10. Feeding width can be synchronously or independently adjusted in electrical way.

11. Heater will automatically push-out when the sheet is over.

12. Auto roll sheet loading, reduce the working load.



Technical Parameter

Model HEY01A-1 HEY01A-2 HEY01B-1 HEY01B-2
Stations 3 4 3 4
Max.Forming Area (mm2) 680×500 750X610
Sheet Width (mm) 350-720
Sheet Thickness (mm) 0.2-1.5
Max. Dia. Of Sheet Roll (mm) 800
Forming Mould Stroke(mm)

Upper Mould 150,

Down Mould 150

Power Consumption 60-70KW/H
Forming Mould Width (mm) 350-680
Max. Formed Depth (mm) 100
Cutting Mould Stroke(mm)

Upper Mould 150,

Down Mould 150

Max. Cutting Area (mm2) 680×500
Cutting Force (ton) 40
Dry Speed (cycle/min) Max 30
Product Cooling Method By Water Cooling
Vacuum Pump UniverstarXD100
Power Supply 3 phase 4 line 380V50Hz
Max. Heating Power 121.6
Max. Power of Whole Machine (kw) 150
Max. Machine Dimension(L*W*H) (mm) 11150×2300×2700
Weight of Whole Machine ( T ) ≈11



Product Image

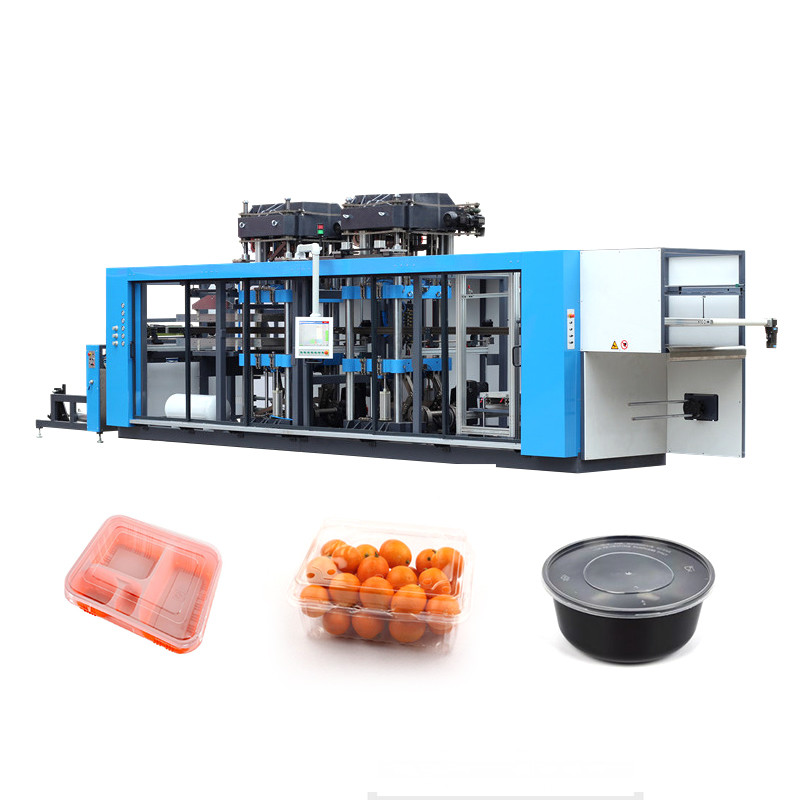

Biodegradable Corn Starch Plastic Thermoforming Machine For Food Packaging Container 1
