Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-C27B |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |

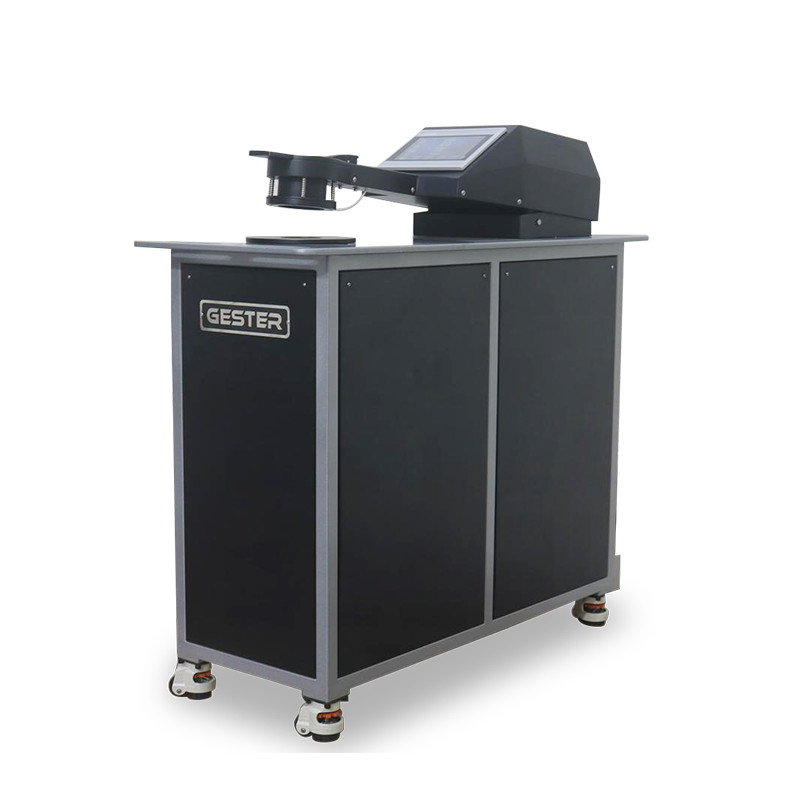

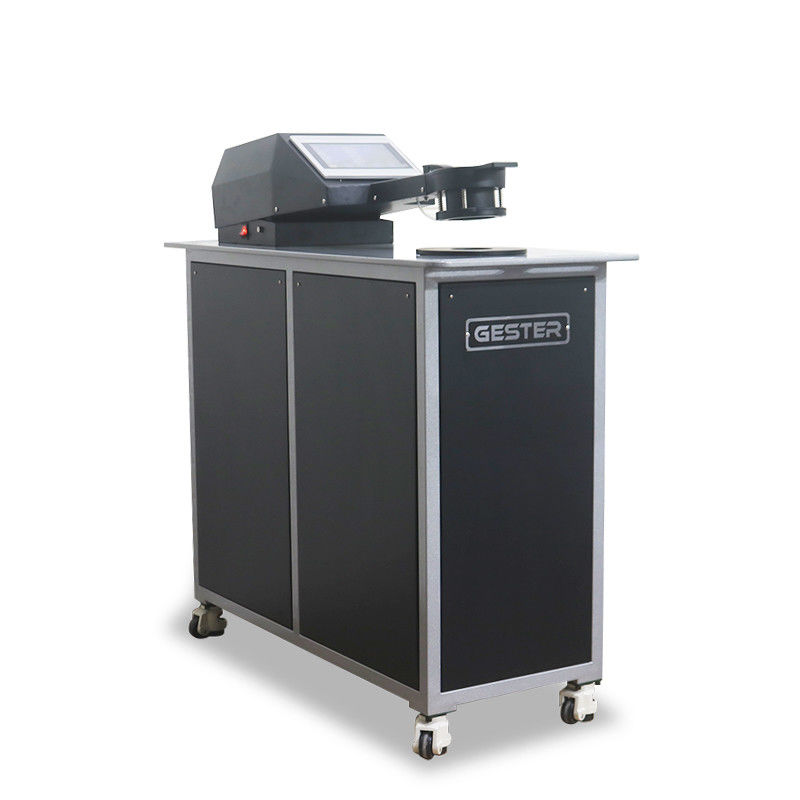

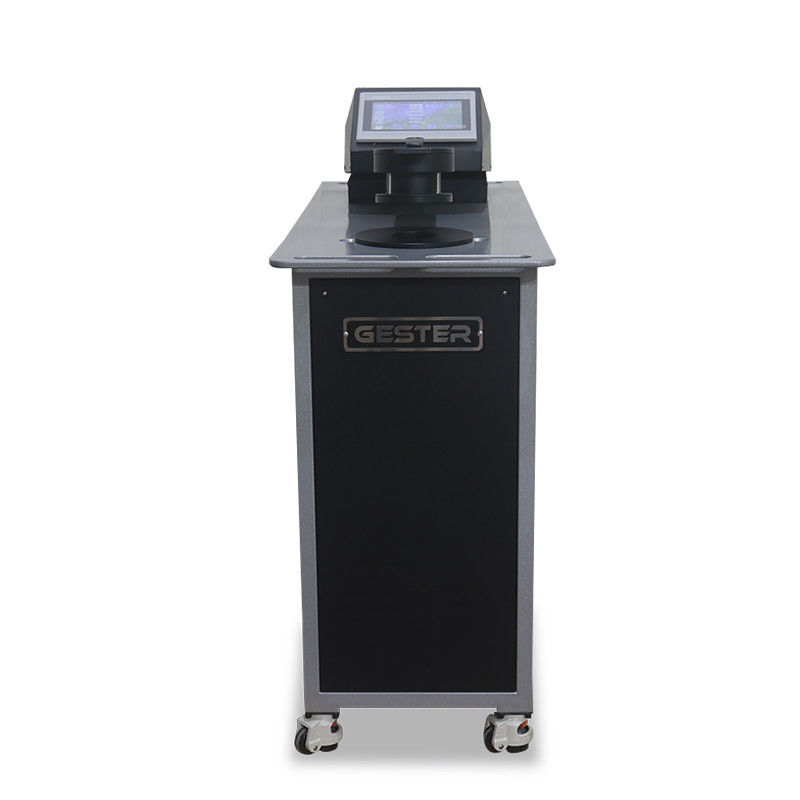

| Product Name: | Air Permeability Tester | Usage: | Test The Air Permeability Of Various Woven Fabrics |
|---|---|---|---|
| Warranty: | 1 Year | Service: | Installation And Training Service |
| Advantage: | Factory Direct Sale | Type: | Protective Clothing Tester |
| High Light: | GB/T 5453 Air Permeability Tester,Protective Clothing Air Permeability Tester,GB/T 5453 Air Permeability Test For Fabric |
||
|
Application: Air Permeability Tester To test the air permeability of various woven fabrics, knitted fabrics, non-woven fabrics, Protective Clothing, industrial filter materials etc.Standards: GB/T 5453, GB/T 13764, ISO 9237, ISO 7231, ISO 5636, BS 5636, ASTM D737, DIN 53887, JISL1096, AFNORG 07-111, EDANA140.1, ISO 9073-15 |

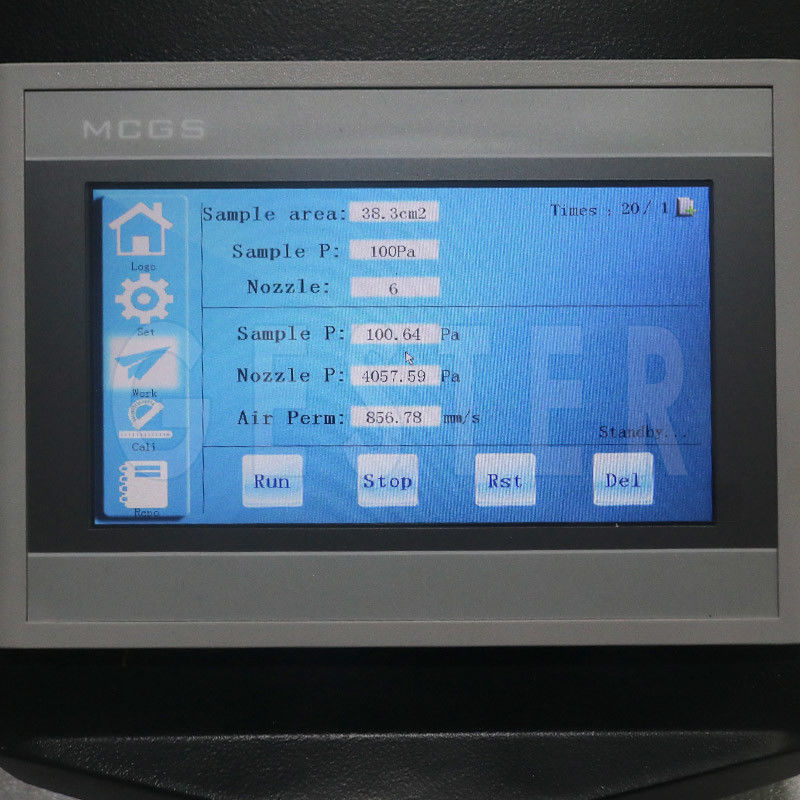

1. 7-Inch Touch Screen Control as well as operating by connect to the computer
2. Full range and automatic detection.
3. Test head size can be automatically sense, and replacement is simple and convenient.
4. Adopt USA SMI high-precision pressure and differential pressure transducer to accurate data.
5. Variable hole test plate can be automatically cleaned to ensure accuracy.
6. Air Permeability Tester Equipped with thermal printer to print the experiment result.
7. Microcomputer processing without manual calculation and the test result can displayed directly.
8. Built-in 7 testing units: mm/s, m3/m2.min, cm3/cm2.s, m3/m2.h, cfm, L/dm2.min, L/m2.s

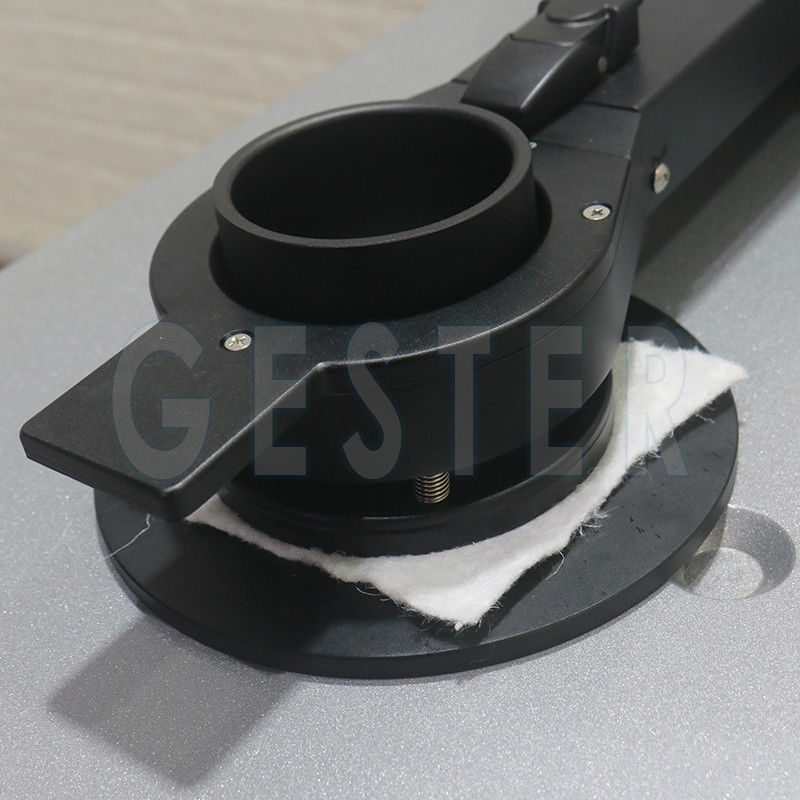

9. Testing arm is pneumatic controlled and can press and put up automatically.
10. Air Permeability Testing Equipment Equipped with 11 nozzle with different calibers to meet different specimens.
|
Operation display |
Touch Screen |
||||||||||
|
Test method |
Automatically |
||||||||||
|
Test time |
10～15s |
||||||||||
|
Nozzle pressure difference |
4,000Pa |
||||||||||
|
Specimen pressure difference |
1,000Pa |
||||||||||
|
Data port |
RS232C |
||||||||||
|
Permeability range |
0.1～12000mm/s |
||||||||||
|
Measuring error |
≤±2％ |
||||||||||
|
Measuring unit |
mm/s, cfm, cm3/cm2/s, I/m2/s, I/dm2/min, m3/m2/min |
||||||||||
|
Testing area |
5cm2, 20cm2, 50cm2, 100cm2 , Ф50mm (≈19.6cm2), Ф70mm(≈38.3cm2) |
||||||||||
|
Fabric thickness |
≤12mm |
||||||||||
|
Nozzle parameter |
Number |
0 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
|
|
Dia. mm |
0.8 |
1.2 |
2 |
3 |
4 |
6 |
8 |
10 |
12 |
16 |
|
Power supply |
AC 220V 50/60HZ, 2KW |
||||||||||
|
Dimensions |
700 x 520 x 1100mm (L x W x H) |
||||||||||
|
Weight |
93kg |
||||||||||
Accessories:
|
Standard accessories |
1Set |
20cm2 Test plate and fixture
|
|
1Set |
38.5cm2 Test plate and fixture
|
|
|
1Set |
Standard calibration plate
|
|
|
1Set |
Nozzle
|
|
|
1pc |
Operation software
|
|
|
1pc |
Cable connect with PC
|
|
|
1pc |
Power Line
|
|
|
Optional accessories |
Optional |
Other Test plate and fixtures
|
|
Optional |
Computer
|
|
|
Optional |
Air compressor
|
