Automatic 4 Station Plastic Flower Pot Thermoforming Machine

Basic Information

Place of Origin:	China
Brand Name:	GESTER
Certification:	CE, ISO
Model Number:	HEY15B-3

Minimum Order Quantity:	1 set
Packaging Details:	wooden packaging
Delivery Time:	10-30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 set/month

Get Best Price Contact Now

Certificate:	CE, ISO	Cycle Per Minute:	15-25 Times/min
Warranty:	1 Year	Weight:	25T
Price:	Factory Price	Function:	Automation
High Light:	Plastic Flower Pot Thermoforming Machine , 4 Station Thermoforming Machine , Automatic Plastic Thermoforming Equipment

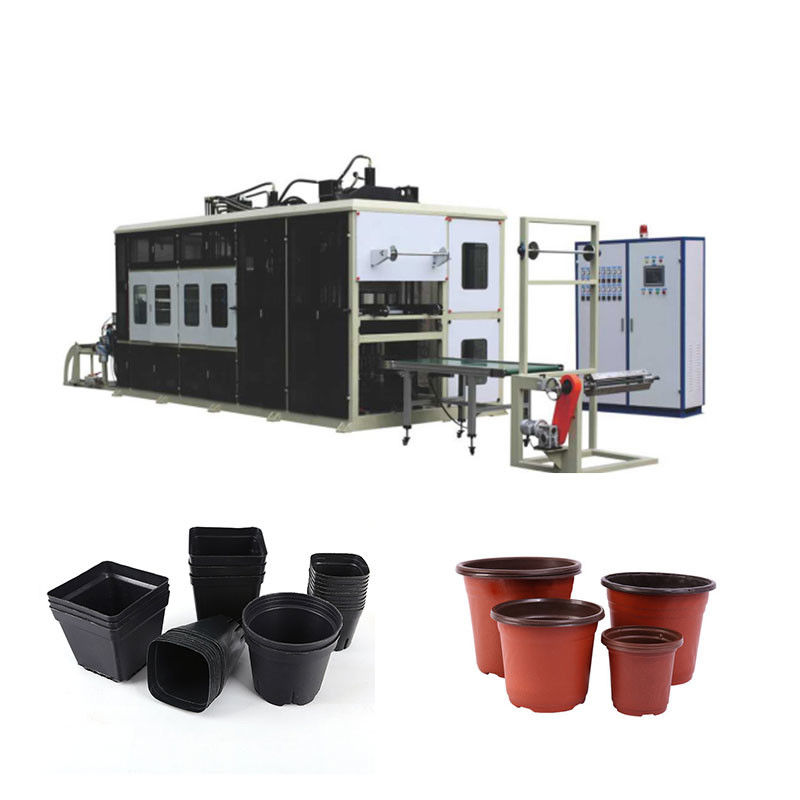

Large Automatic 4 Station Plastic Flower Pot Thermoforming Machine HEY15B-3

Application

Mainly for the production of variety plastic containers with holes ( flower pots, fruit containers, lids with hole, package containers, etc) with thermoplastic sheets, such as PP, PET, PS,etc.

Features

Machine includes 4 Station: forming, punching, cutting and stacking in one unit.
All three units (forming unit, punching unit and cutting unit) are controlled by hydraulic system.
Upper and down mould can be pressure or vacuum forming. So this machine can make by pressure forming or by vacuum forming; and can be pressure and vacuum forming together to make a good & precision product.
PLC system

Technical Parameter

4 Station	Forming, punching, cutting and stacking
Max Formed Area	760*600mm
Sheet Width	600-800mm
Main Motor Power	55KW
Formed Depth	230mm
Heating Power	168KW
Total Weight	25T
Suitable Material	PS, PET, PP
Sheet Thickness	0.3-1.2mm
Cycle Per Minute	15-25 times/min
Dimension(LXWXH)	15m x 3m x 3m

Main Spare parts

PLC	CO-TRUST
Touch Screen	CO-TRUST
Encoder	OMRON
Temperature control instrument	Fuji
Small-relay	OMRON
Contactor	LS
Proximity Switch	OMRON
Switching Power	OMRON
Breaker	LS
Solenoid Valve	Sanwo/SMC
Air Cylinder	China
Feeding Servo Motor	YASKAWA
Stack Servo Motor	CO-TRUST
Oil Pump	YUKEN
Solenoid valve	YUKEN
