ASTM D3885 LCD Counter Display Stoll Quartermaster Universal Wear Tester For Fabric

Basic Information

Place of Origin:	China
Brand Name:	GESTER
Certification:	CE, ISO
Model Number:	GT-C15

Minimum Order Quantity:	1 set
Packaging Details:	wooden packaging
Delivery Time:	10-30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 set/month

Get Best Price Contact Now

Warranty:	1 Year	Dimensions:	480 X 360 X 715mm
Counter Display:	LCD	Power Supply:	Electronic
Stroke Length:	25mm	Speed:	115±10 Double Stokes/ Min
High Light:	Stoll Quartermaster Universal Wear Tester , LCD Counter Display Universal Wear Tester , ASTM D3885 Fabric Testing Machine

ASTM D3885 Counter Display LCD Universal Wear Tester (Stoll Quartermaster) For Fabric

Application

To determines the wear and abrasion resistance of fabric used in clothing, footwear and industrials. Supplied with surface abrasion head (inflated diaphragm method, flex abrasion head, depth abrasion test device, flat abrasion (frosting) and pilling test device as well as necessary weights and initial supply of abrasive. Fitted with built-in timer and mechanical cycle counter.

Feature

This machine equipped with accurate loop counter and timer. Digital counter can record the cycle index when the sample ruptured. And testers can preset the counter to stop before sample rupturing. Count down model can also be used in count the cycle index.
To ensure accuracy of the rubber membrane when doing the surface abrasion test, this machine equipped with accurate pneumatic pressure control system.
Test can be done automatically which can ensure not only the accuracy of repeat test result but also save operator’s time.

Key Specification

Model	GT-C15-1	GT-C15-2
Speed	115±10 double stokes/ min
Stroke length	25mm

Power supply	AC 220V 50/60HZ
Dimensions	480 x 360 x 715mm ( L x W x H )
Weight	50kg
Standards	ASTM D3885, D3886		ASTM D3514, D3885, D3886
			AATCC 119, 120

Accessories

Model	GT-C15-1	GT-C15-2
Standard accessories	Tension weights -5pcs	Tension weights -5pcs
	Tension weights -5pcs	Tension weights -5pcs
	Press weights -5pcs	Press weights -5pcs
	Micrometer calipers- 1pc	Micrometer calipers- 1pc
	Flex Abrasion Test fixture - 1set	Flex Abrasion Test fixture - 1set
	Flex Abrasion Blade Device -1set	Flex Abrasion Blade Device -1set
	Surface Abrasion Test fixture -1set	Surface Abrasion Test fixture -1set
	Power Line -1pc	Edge & Fold Abrasion Test -1set
		Flat abrasion (frosting) and pilling test fixture -1set
		Power Line -1pc
Option accessories	Rubber membrane
	ASTMD3514 Photograph
	ASTM D3514 Elastomeric Base Pad and Elastomeric Friction Pad

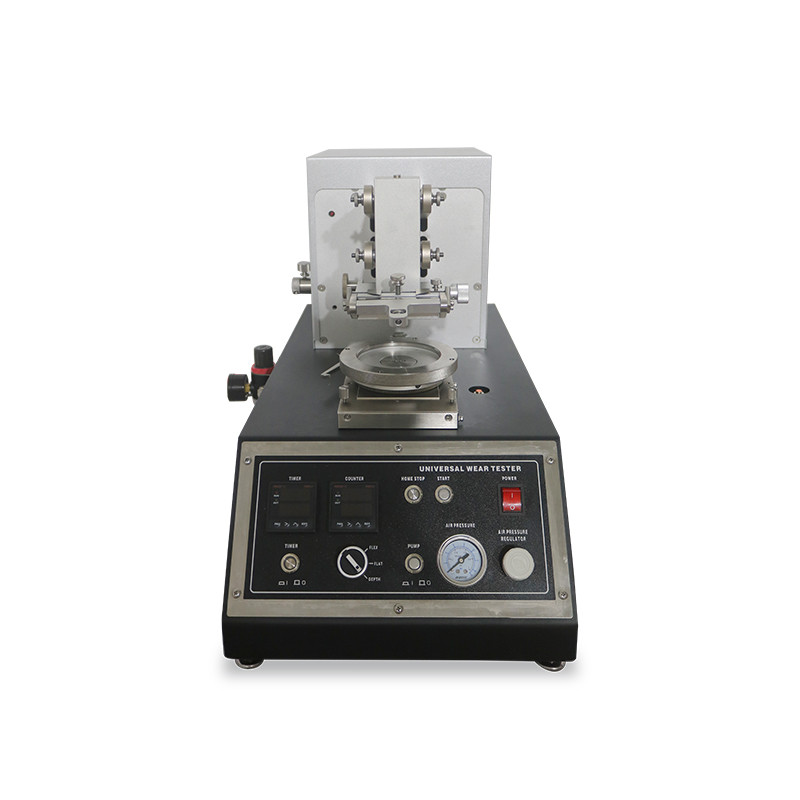

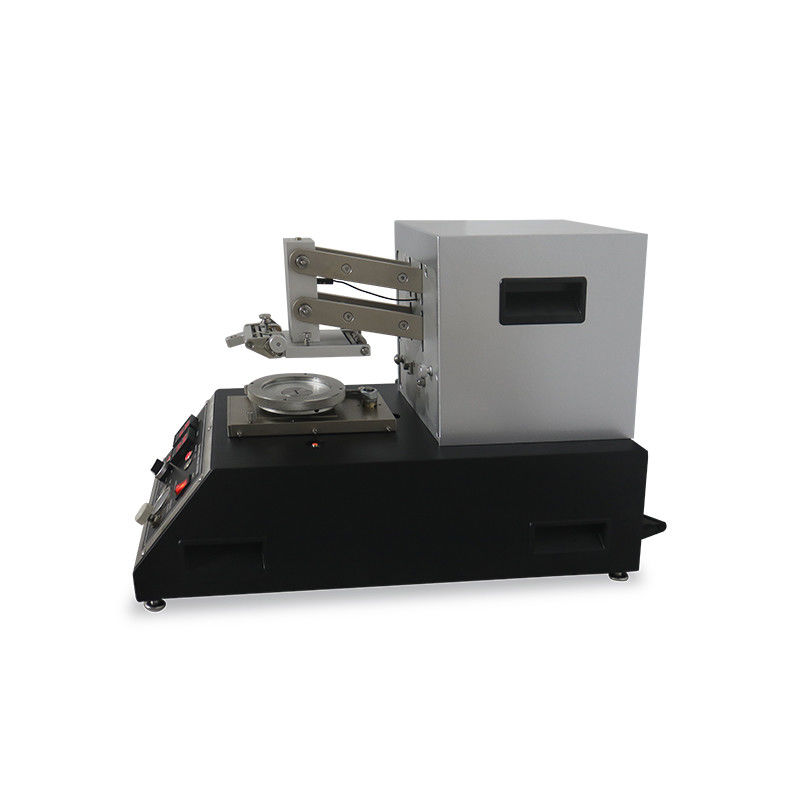

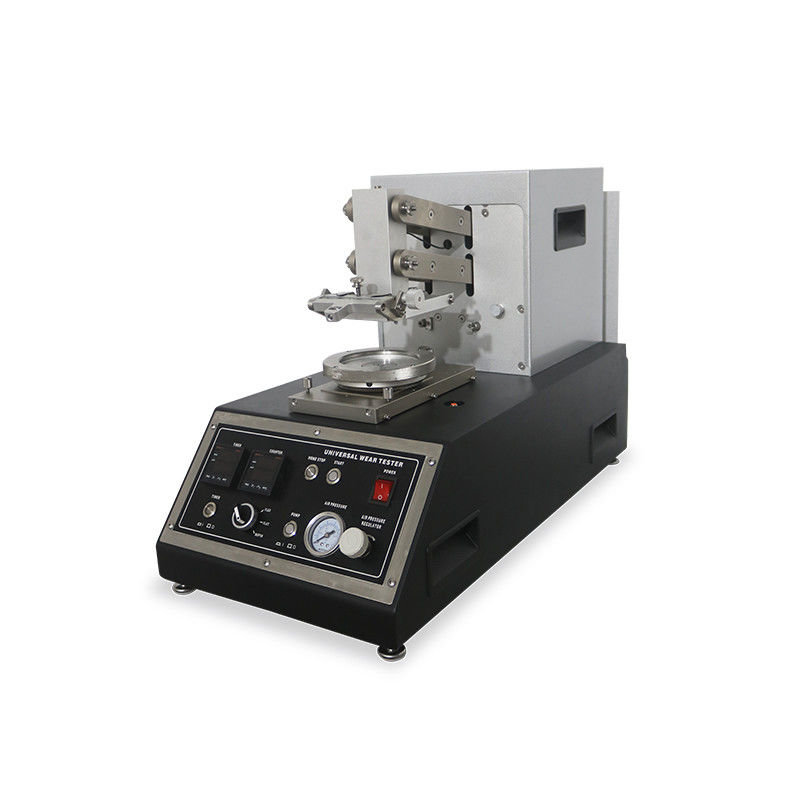

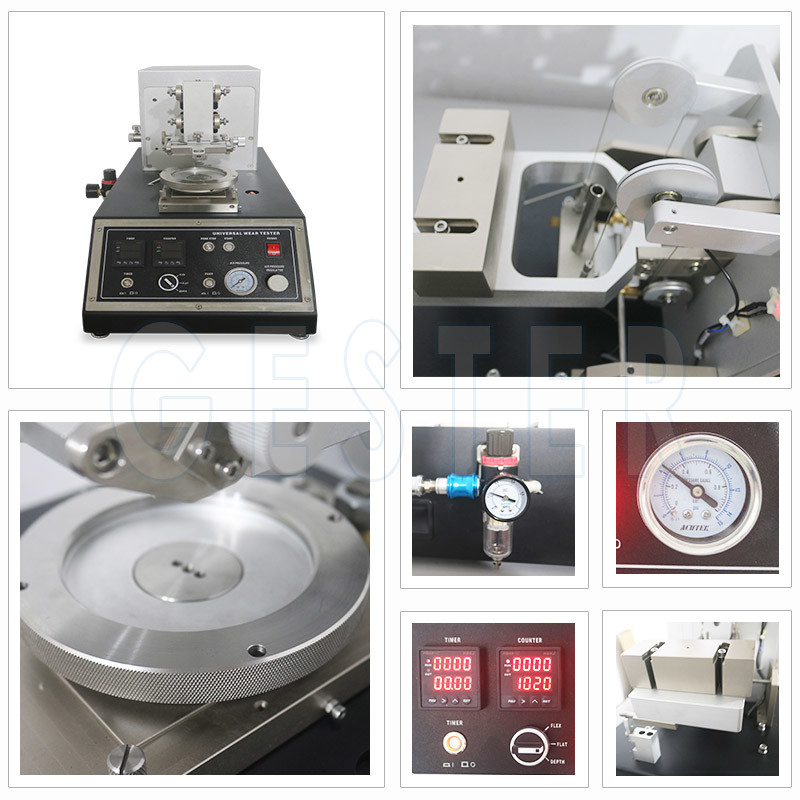

Produce Picture

ASTM D3885 LCD Counter Display Stoll Quartermaster Universal Wear Tester For Fabric 0
