Gester International Co., Ltd
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE,ISO |
| Model Number: | GT-D34 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Certificate: | ISO 9001, UKAS, CE | Standard: | BS/ISO 6330/5077, AATCC 135 |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 280kg |
| Used: | Fabric Stability, Color Fastness, Spirality And Pilling To Washing | Function: | MCU Program Controller |
| Color: | Gray | Feature: | Factory Price |
| Key Words: | Fabric Washing Shrinkage Test Machine | Product Name: | Automatic Wascator Fabric Washing Shrinkage Test Machine |
| Highlight: | Wascator Fabric Shrinkage Tester,AATCC 135 Fabric Shrinkage Tester,Wascator Fabric Testing Machine |
||

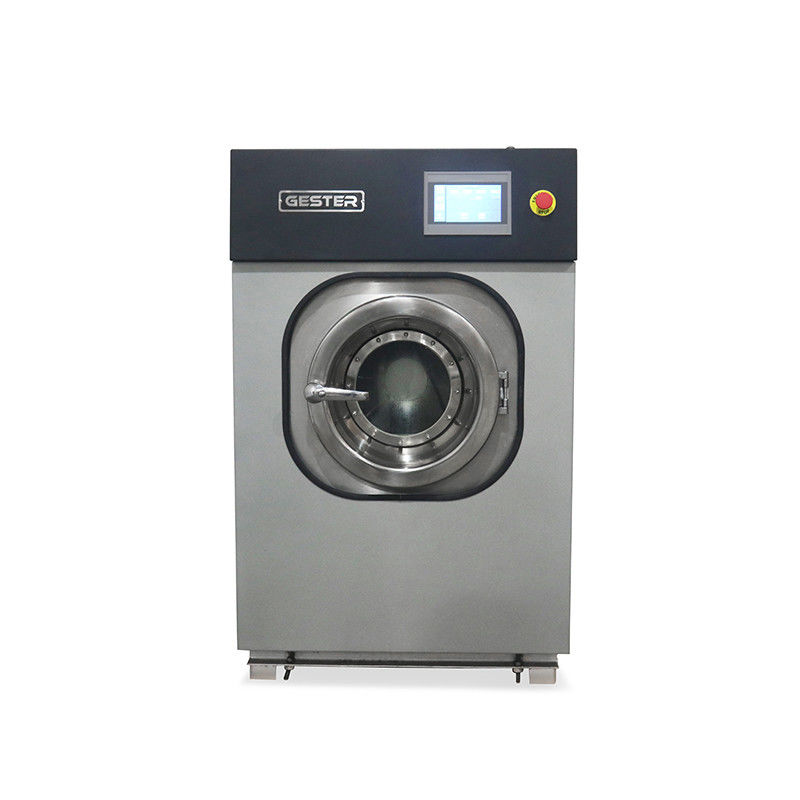

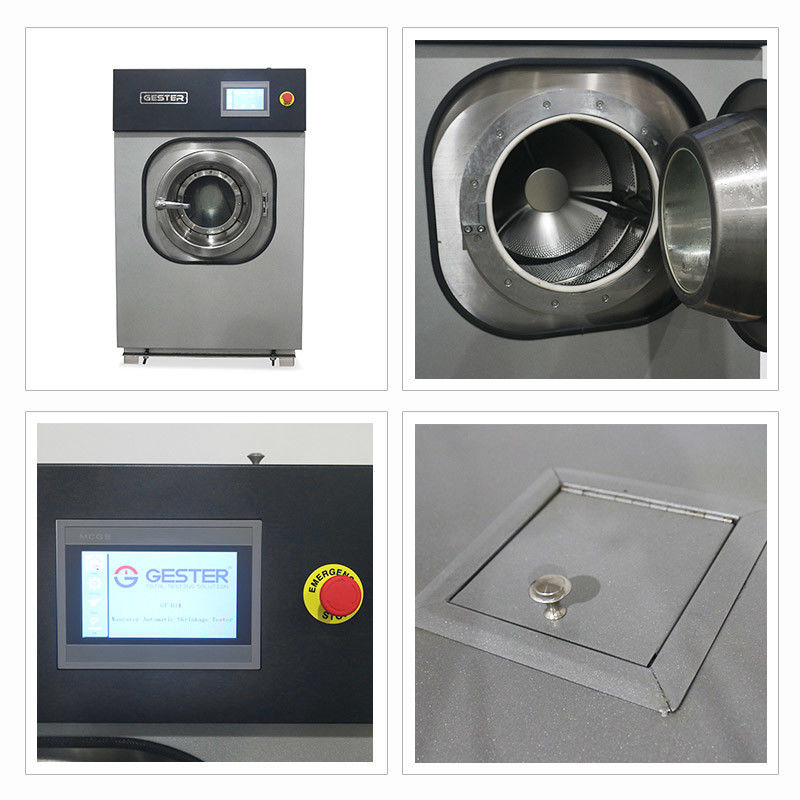

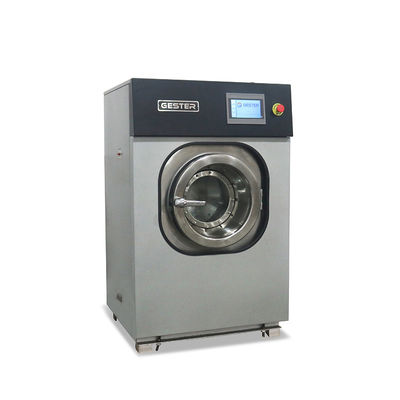

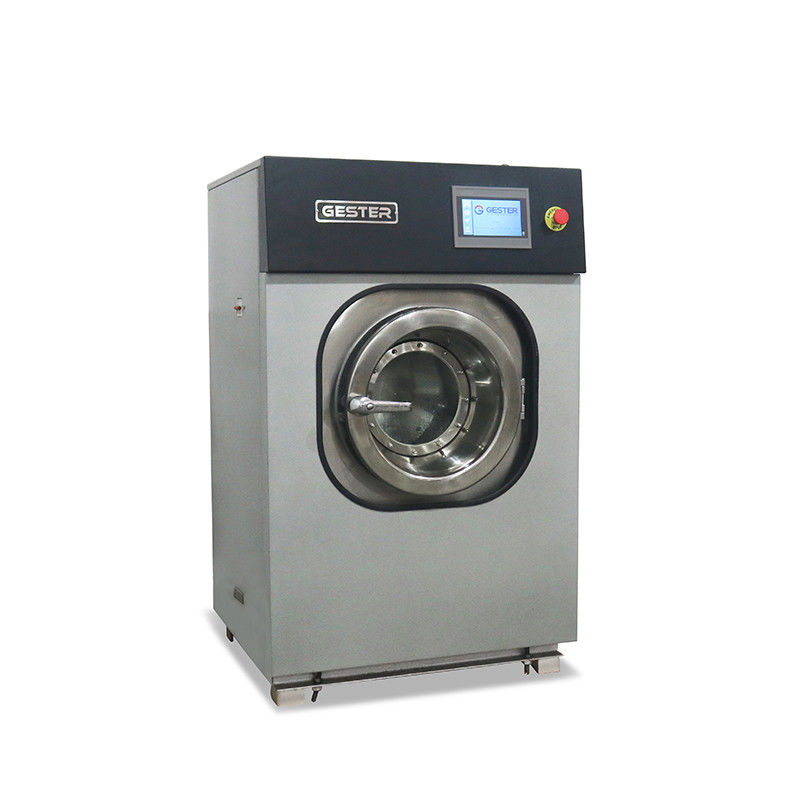

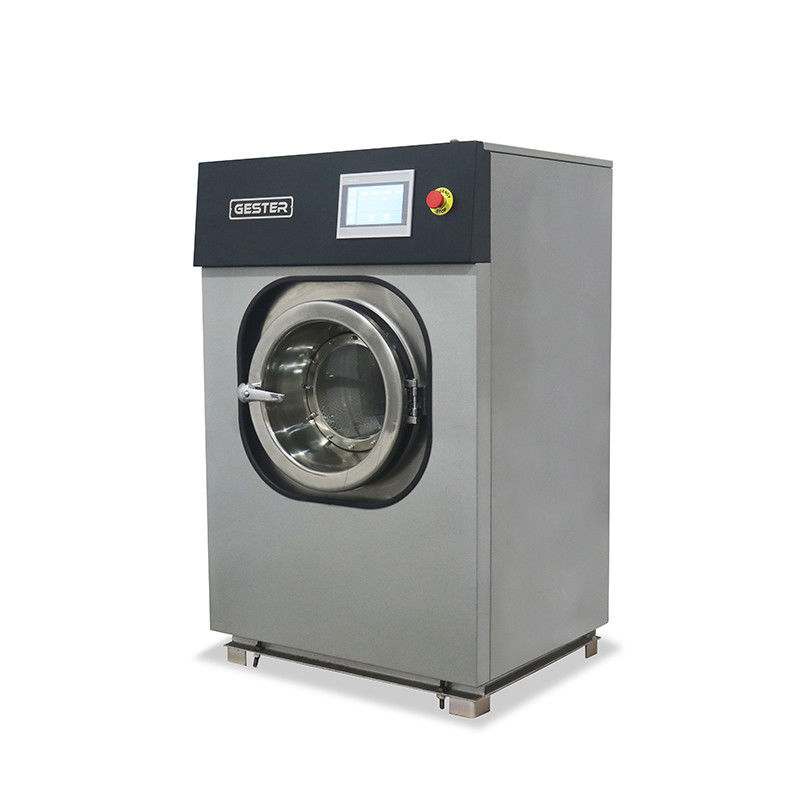

Fabric Shrinkage Tester. Accelerated washing apparatus for knitted and woven fabrics to assess shrinkage in accordance with international test methods. Also used for assessing fabric stability, colorfastness, finish durability, spirality, and pilling to washing.
0
1. MCU program controller, build-in ten sets of washing programs that ISO required, and operator program capability.
2. No need to fix to the ground with foot screw, operating stably;
3. The soft link between the rotating cage and rack, low vibration and noise;
4. Variable frequency motor, switch smoothly between high speed and low speed, the low-temperature increment of the motor.

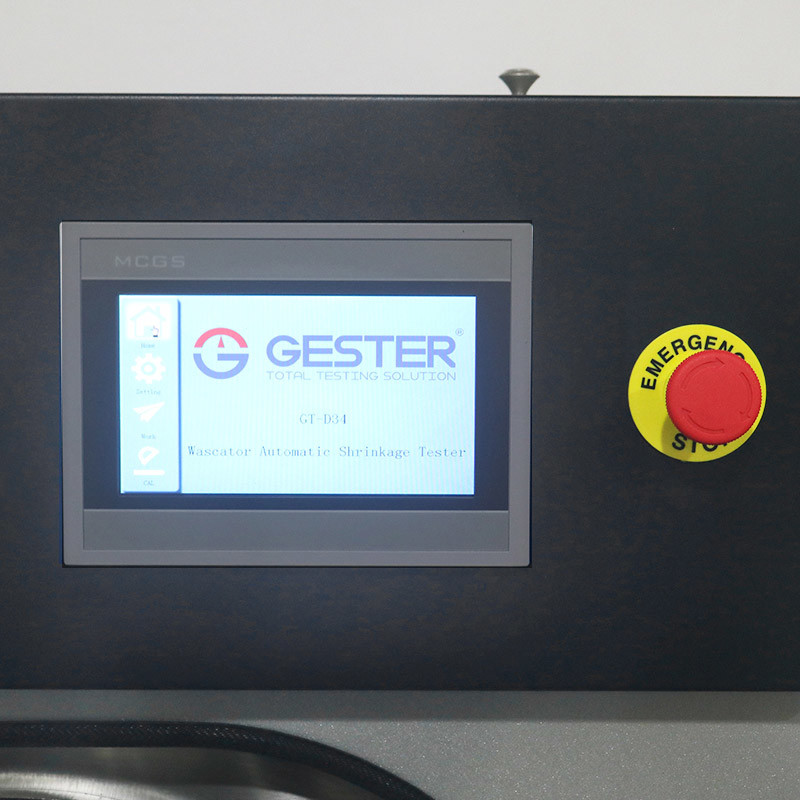

5. Blue fluorescence LCD display, test state dynamic icon shows, easier to catch the eye and operation convenience.
6. Non-touch capacitance water level meter to measure water level accuracy and reliability.
0
| Model | GT-D34-1 |
| Washing Model | front-loading, horizontal tumbling-box type |
| Diameter Oftumbling-Box | 515±5mm |
| Depth Oftumbling-Box | 335±5mm |
| Interval Between Inner And Outer tumbling-box | 28±1mm |
| Number of Lifter | 3 |
| Height of Lifter | 50±mm |
|
Rotating Method Normal model: Clockwise Rotating Anticlockwise Rotating Soft model: Clockwise Rotating Anticlockwise Rotating |
12±0.1s, pause 3±0.1s, 12±0.1s, pause 3±0.1s
3±0.1s, pause 12±0.1s, |
| Rotation Speed |
Washing 52r/min Spin (500±20)r/min |
| Fill Water Time | < 2min (water in high level 13cm) |
| Drainage Duration | < 1min (water in high level 13cm) |
| Heating Power | 5.4±2%KW |
| Load Weight | 5kg |
| Power Supply | Ac220V 50Hz 5400W |
| Instrument Size | 990×980×1450mm(L×W×H) |
| Weight | 280kg |
0
