Gester International Co., Ltd
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE,ISO |
| Model Number: | GT-I04 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Product Name: | Power Electronic Battery Pack Drop Testing Machine | Stroke: | 500mm(adjustable, Can Customize) |
|---|---|---|---|
| Drive: | Hydraulic Drive | Max Capacity: | 80t(or Customized) |
| Speed: | 10~40mm/S | Power: | 380V, 50~60Hz,10A |
| Warranty: | 1 Year | Keyword: | Battery Nail Penetration Test Equipment |
| Price: | Factory Price | Color: | White And Purple |
| High Light: | nail penetration battery testing equipment,nail penetration battery tester,80t battery testing equipment |
||

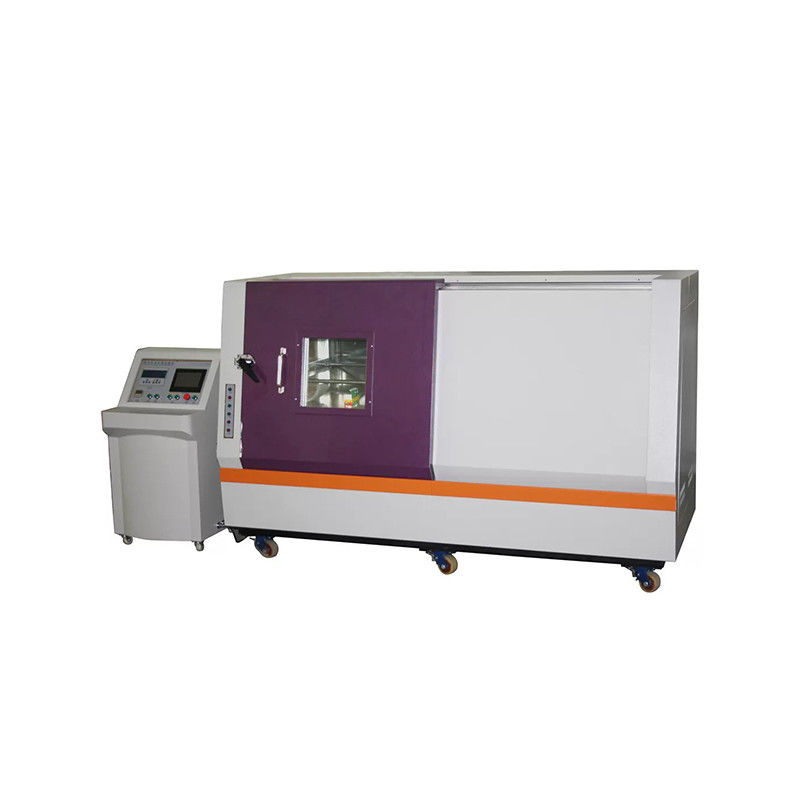

lithium Ion Battery Nail Penetration Test Equipment is suitable for acupuncture testing of various power battery cells/modules/battery packs and battery systems, simulating needle-like objects or other sharp objects pierced or pierced during packaging, transportation, storage, use, and disposal of household waste Situation. Used to evaluate the safety performance of battery cells/modules/battery packs and battery systems.
| Model | GT-I04 | |
| Drive | Hydraulic drive | |
| Max capacity | 80T(or customized) | |
| Load sensor | High precision load sensor with the resolution of 1/10,000 | |
| Display accuracy | ±10.0kg | |
| Unit | kgf ,lbf ,N, KN, Kpa, Mpa | |
|
Puncture
|
Stroke | 500mm(adjustable, can customize) |
| Speed | 10~40mm/s | |
| Steel needle | Diameter of 3mm to 8mm | |
| Distance between the needle and the sample | 300mm(or customized) | |
| Clap distance | 500mm(or customized) | |
| Clap method | Manual clamping, or fixture customized | |
|
Structure
|
Box material |
Interior box: SUS#304 stainless steel Outward box:cold-roll steel sheets with paint |
| Observing window | 300×300mm,depth of 10mm | |
| Ventilation facility | exhaust fan with diameter of 150mm, exhaust pipe can connect to exhauster | |
| Safety device | Separate the control box and test box. | |
| Light | High-brightness light | |
| Power | 380V, 50~60Hz,10A | |
