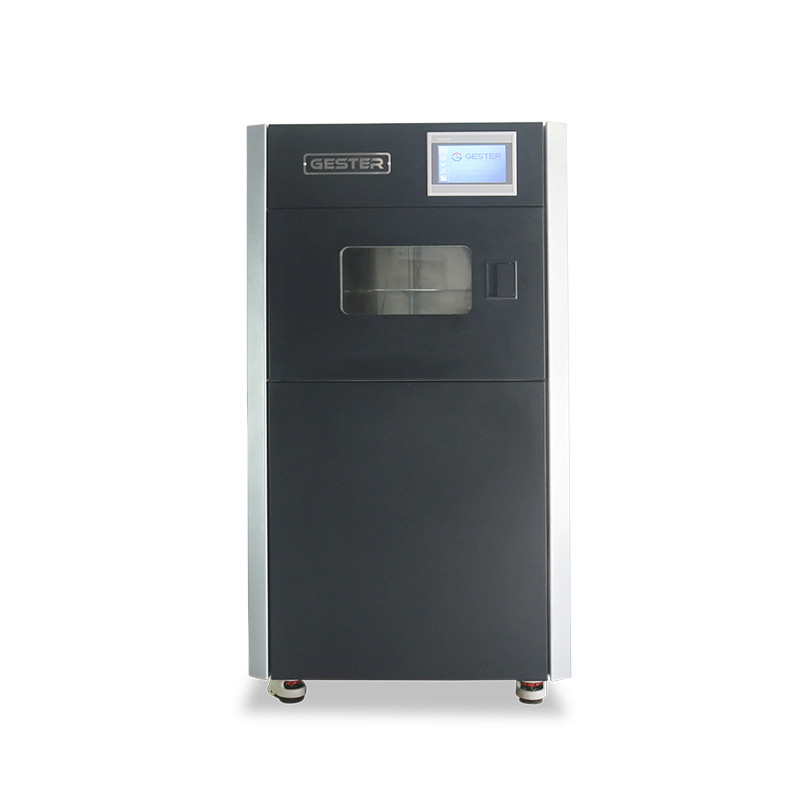

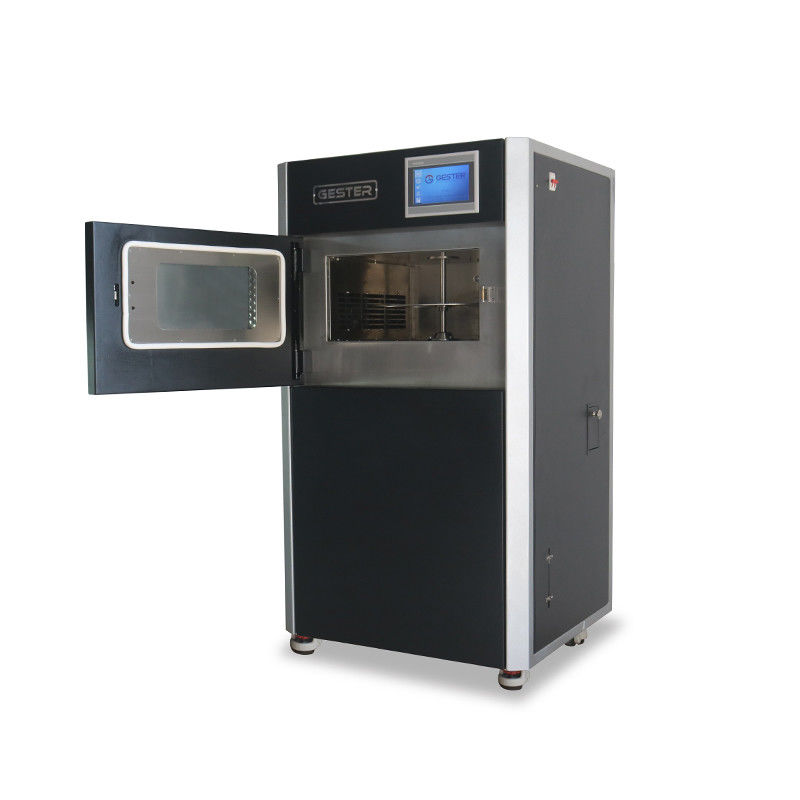

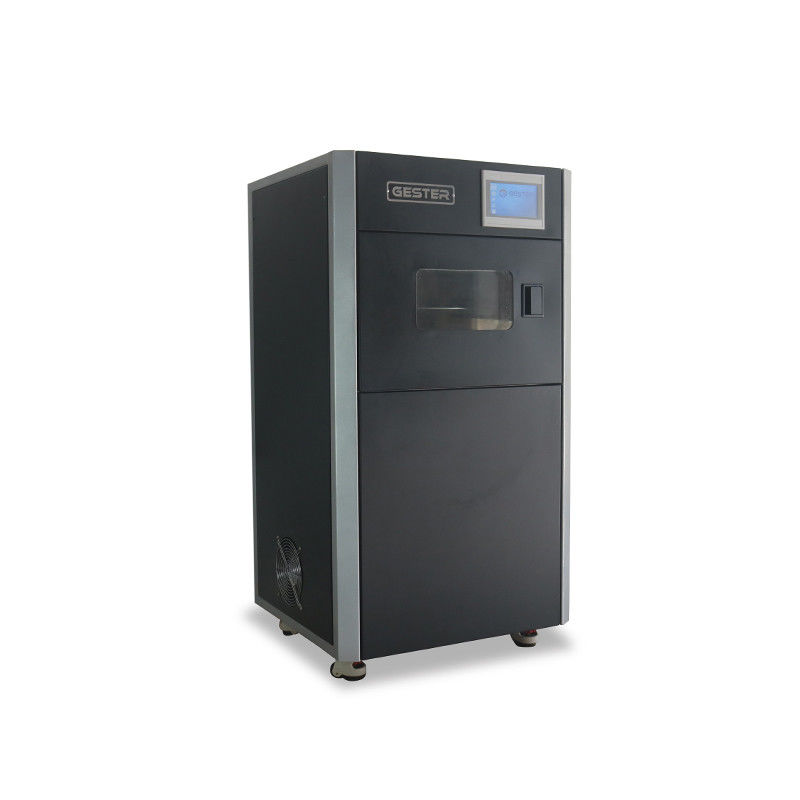

Fabric Water-vapour Transmission Tester: To test the water vapour transmission of various fabric (moisture permeable fabric included) and non-woven fabric such as bat wool, space cotton, sportswear fabric etc.
GB/T12704, GB/T21655, ASTM E90, ASTM E96 (Procedure A, B, C, D, E), JIS L1099, BS 7209
Water-vapour Transmission Tester Apply to various standards and testing methods.

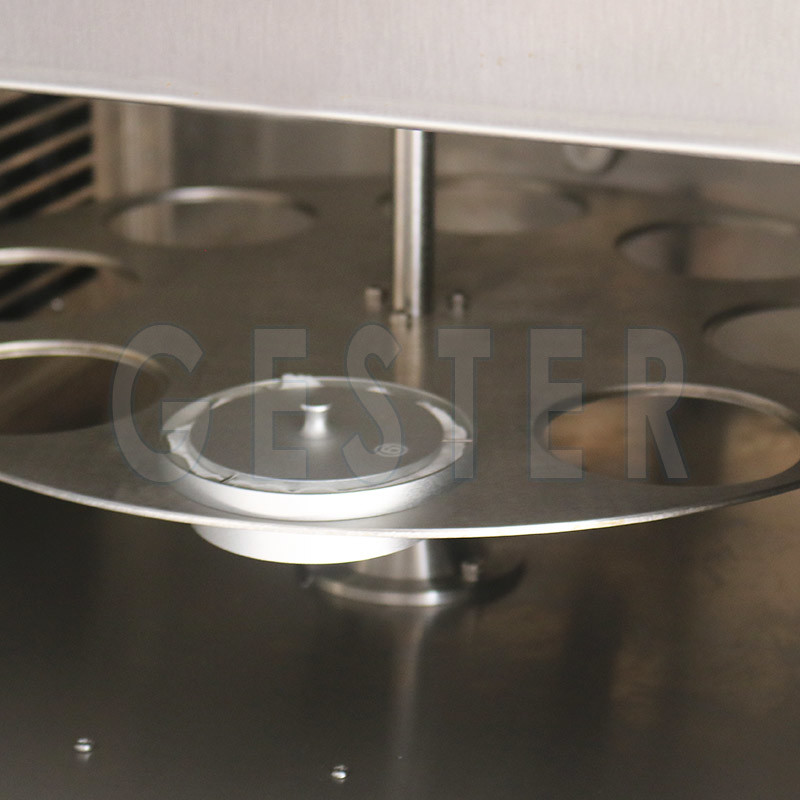

Rotary specimen holder, the speed can be adjusted. The test is much evenly than fixed specimen holder.
The wind speed can be adjusted. Adopt import air velocity transducer to demarcate which can ensure the speed.
The temperature and humidity control use RID algorithm, which fluctuation is small and can prevent the overshoot. The temperature and humidity calibration function can avoid the sensor bias caused by long time using.
High accuracy temperature and humidity sensor makes the test result reliable and precise.

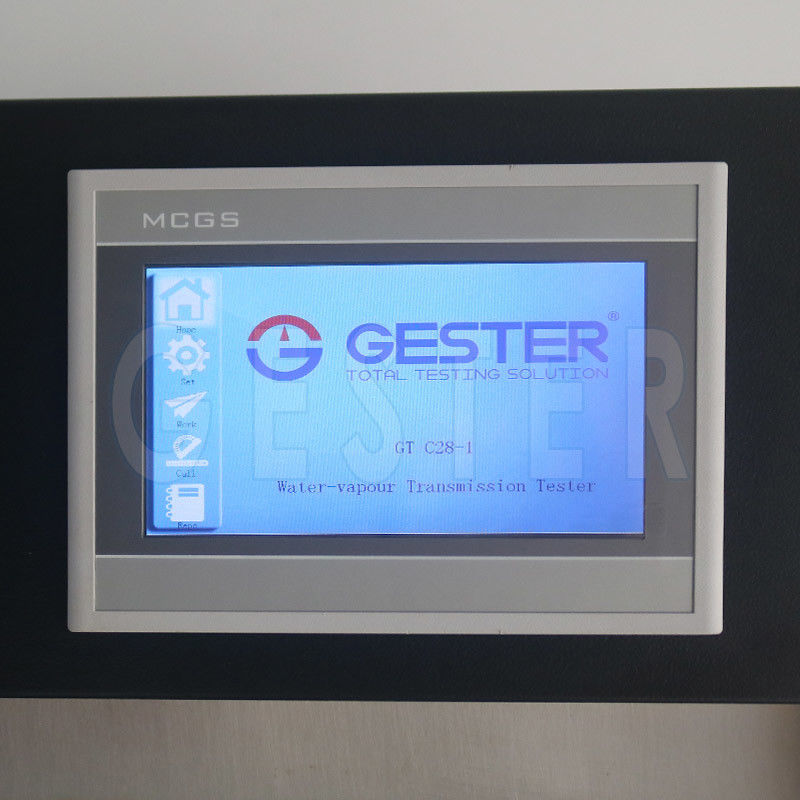

Single chip control, color touchscreen operation,modular design, temperature and humidity digital setting, intelligent control and real-time display the temperature, humidity and time.
Can input parameter on the touch screen and calculate the WVT, WVP, PV value.
The machine equipped with upper computer software, can record the temperature and humidity curve, be easy to calculate and print mass data report.
Water vapour permeability cups
1 layer, 8pcs
2 layers, 8pcs/layer
Test chamber temperature
Accuracy of temperature
Upright cup method
Humidity of testing chamber
Accuracy of humidity
0.1～999.9h (can be changed into “min”)
Speed of circulating air
2826mm² (∮60mm GB12704) or 4534mm² (∮76mm ASTM E96)
Or 5408mm² (∮83mm BS 7209) or 2826mm² (∮60mm JIS L1099)
