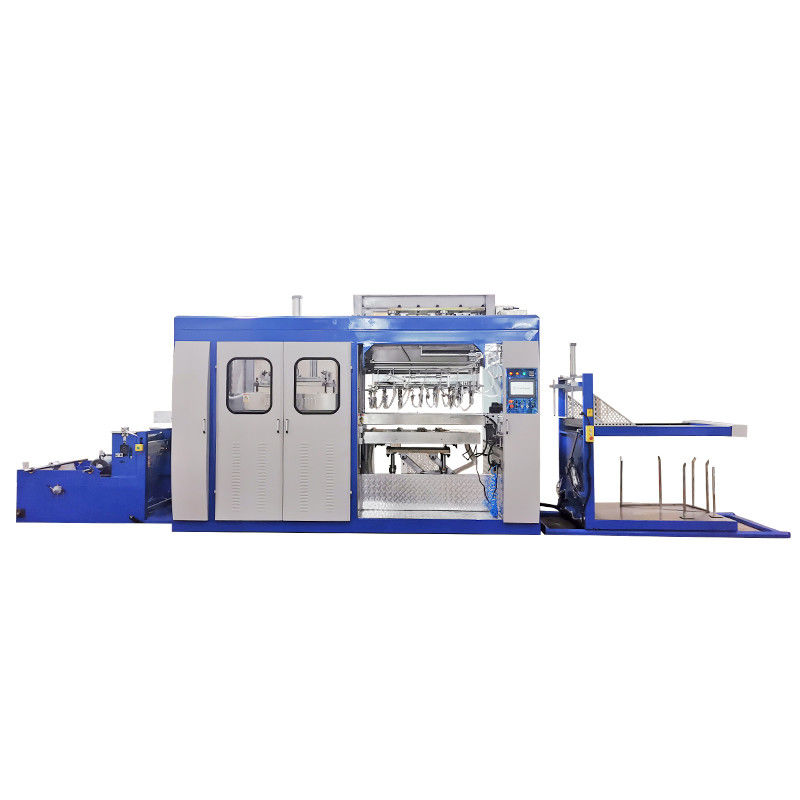

3KW PLC HIPS Thermoplastic Vacuum Forming Machine

small.img.alt
small.img.alt 3KW PLC HIPS Thermoplastic Vacuum Forming Machine 3KW PLC HIPS Thermoplastic Vacuum Forming Machine small.img.alt 3KW PLC HIPS Thermoplastic Vacuum Forming Machine 3KW PLC HIPS Thermoplastic Vacuum Forming Machine small.img.alt 3KW PLC HIPS Thermoplastic Vacuum Forming Machine 3KW PLC HIPS Thermoplastic Vacuum Forming Machine small.img.alt 3KW PLC HIPS Thermoplastic Vacuum Forming Machine 3KW PLC HIPS Thermoplastic Vacuum Forming Machine small.img.alt 3KW PLC HIPS Thermoplastic Vacuum Forming Machine 3KW PLC HIPS Thermoplastic Vacuum Forming Machine
Basic Information
Place of Origin: China
Brand Name: GESTER
Certification: CE, ISO
Model Number: HEY05
Minimum Order Quantity: 1 set
Packaging Details: wooden packaging
Delivery Time: 10-30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 set/month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Application Material: HIPS,PE,PET,Starch-based Material Warranty: 1 Year
Work Frequency: 4-24 Times/min Heating Method: Infrared-radiation Heating
Power: 3kw Ultimate Vacuum: 5mbar
High Light:

PLC Thermoplastic Vacuum Forming Machine

,

3KW Thermoplastic Vacuum Forming Machine

,

PLC Thermal Vacuum Forming Machine

3KW PLC HIPS Thermoplastic Vacuum Forming Machine



Application

Mainly for the production of variety plastic containers ( egg tray, fruit container, package containers, etc) with thermoplastic sheets, such as APET, PETG, PS, PSPS, PVC,etc.



​3KW PLC HIPS Thermoplastic Vacuum Forming Machine 0



Features

1. Utilizes PLC control system, servo drives upper and lower mould plates, and servo feeding, which would be

more stable and precision.

2. Human-computer interface with high definition contact-screen, which can monitor the operation situation

of all parameter setting.

3. Applied self-diagnosis function, which can real-time display breakdown information, easy to operate and

maintenance.

4. Several products’ parameter can be stored in device, which would be quickly test and adjustment of

machine when producing different products.



Product Parameter

Model HEY05A HEY05B
Control Air Cylinder Servo
Forming Area(L*W) 1350*760 mm
Option Customized Forming Area(L*W) 1220*760/900mm, 1350*900mm, 1500*760/900mm
Whole Machine Power Max. 50kw
Heating Power Max. 40kw
Average Power Consumption About 25kw
Heating Method Infrared-radiation Heating
Work Frequency 4-24 times/min
Forming Height Max. 240mm (Male Mould), Max. 200(Female Mould)
Sheet Thickness 0.1-2.5 mm
Sheet Width 450-800mm
Air Compressor 0.6-0.7 Mpa
Air Supply Quantity 1.5-2 m3/min
Vacuum Flow Rate 100 m3/hour
Power 3kw
Ultimate Vacuum 5mbar
Water Supply 350kg/h
Power Supply Three Phase Four Lines 380V 50/60HZ
Machine Dimensions 8900*1800*2600mm
Whole Machine Weight Around 4500 kg

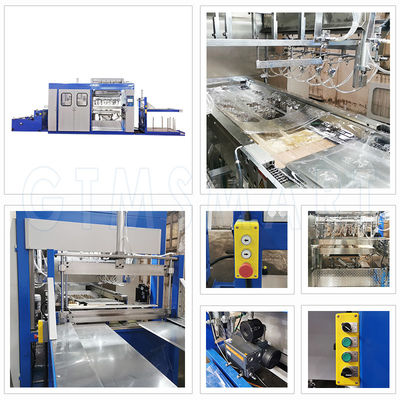

Product Picture

3KW PLC HIPS Thermoplastic Vacuum Forming Machine 1
