380V 50HZ Biodegradable PLA Plastic Cup Making Machine

small.img.alt
small.img.alt 380V 50HZ Biodegradable PLA Plastic Cup Making Machine 380V 50HZ Biodegradable PLA Plastic Cup Making Machine small.img.alt 380V 50HZ Biodegradable PLA Plastic Cup Making Machine 380V 50HZ Biodegradable PLA Plastic Cup Making Machine small.img.alt 380V 50HZ Biodegradable PLA Plastic Cup Making Machine 380V 50HZ Biodegradable PLA Plastic Cup Making Machine small.img.alt 380V 50HZ Biodegradable PLA Plastic Cup Making Machine 380V 50HZ Biodegradable PLA Plastic Cup Making Machine
Basic Information
Place of Origin: CHINA
Brand Name: GESTER
Certification: CE,ISO
Model Number: HEY12
Minimum Order Quantity: 1 set
Packaging Details: wooden packaging
Delivery Time: 10-30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets/month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Function: Automation Certificate: CE, ISO
Condition: New, Trade Assurance Feeding Reducer With Motor: Worm Gear Reducer (Supror)
Pneumatic Pressure: AirTAC Cylinder SC63×25=2pcs Pneumatic Feeding Sheet: AirTAC Cylinder SC100×150=2pcs
High Light:

Biodegradable Plastic Cup Making Machine

,

380V 50HZ Plastic Cup Making Machine

,

PLA Plastic Cup Thermoforming Machine

Full Automatic PLA Biodegradable Plastic Ice Cream Cup Making Machine





Cup Making Machine Application

Mainly for the production of variety plastic containers ( jelly cups, drink cups, package containers, etc) with thermoplastic sheets, such as PP, PET, PE, PS, HIPS, PLA,etc.





Cup Making Forming Station
1. Standard square tube frame with 100*100, mould is casted steel and upper mould is fixed by nut.
2. Opening and closing mould driven by eccentric gear connecting rod.Driving power by 15KW (Japan Yaskawa) servo motor, American KALK Reducer,main axis use HRB bearings.
3. Plastic Cup Thermoforming Machine Main pneumatic component use SMC(Japan) magnetic.
4. Sheet feeding device with planetary gear reducer motor, 4.4KW Siemens servo controller.
5. Stretching device uses 11KW Siemens servo.
6. Lubrication device is fully automatic.
7. Caterpillars adopt fully enclosed structure, with cooling device and can manually adjust sheet width.
8. Heating system uses China ceramic far-infrared heaters, stainless steel upper and down heating furnace, upper heater with 12 pcs heating pads vertically and 8 pcs heating pads horizontally , down heater with 11 pcs heating pads vertically and 8 pcs heating pads horizontally.(specification of heating pad is 85mm*245mm);Electric furnace push-out system uses 0.55KW worm gear reducer and ball screw, which is more stable and also protect the heater pads.
9. Cup Thermoforming Machine Air filtration uses triplet, blowing cup can adjust airflow.
10. Folding mould is consist of fixed upper plate,flexible mid plate and 4 pillars with surface hard chrome plating 45#.
11. Eccentric is the construction of connecting rod fold mould, with running range ≤ 240mm.
12. Electric heating furnace could be moved horizontally and vertically freely by guide-rail from Hiwin Taiwan.
13. Toping cups is controlled by AirTAC (Taiwan) cylinder.





Waste Edge Winding Device
On-line winding
Reducer with 0.75KW motor (1 pc)





Main Technical Parameter

(Model) HEY12A HEY12B
Forming Area 750x420 mm 850x560 mm
Sheet width <750 mm <850 mm
Max.forming depth <220 mm <180 mm
Heating rated power 140kw 150kw
Dimension 5400x2000x2800mm 5500x2000x2800mm
Machine total weight 8T 9T
Applicable raw material PP,PS,PET,HIPS,PE,PLA
Sheet thickness 0.2-3.0 mm
Work frequency <35
Motor power 15kw
Power supply 380V/50HZ
Pressure supply 0.6-0.8
Max.air consumption 3.8
Water consumption 20
Control system Siemens





Electric Control

Human-computer Interface Siemens
PLC Siemens
Servo Stretching Motor Siemens 11KW servo driver+servo motor
Servo Folding Motor Siemens 15KW servo driver+servo motor
Main Reducer America FALK
Feeding Sheet Motor Siemens 4.4KW servo driver+servo motor
Temperature Controller Japan Fuji







Product Image

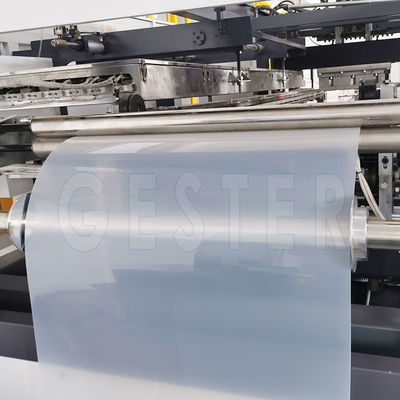

380V 50HZ Biodegradable PLA Plastic Cup Making Machine 0

Tag:

Single Station Automatic Thermoforming Machine,

6 bar Plastic Cup Thermoforming Machine,

45 Cycles/ Min Plastic Thermoforming Machine
