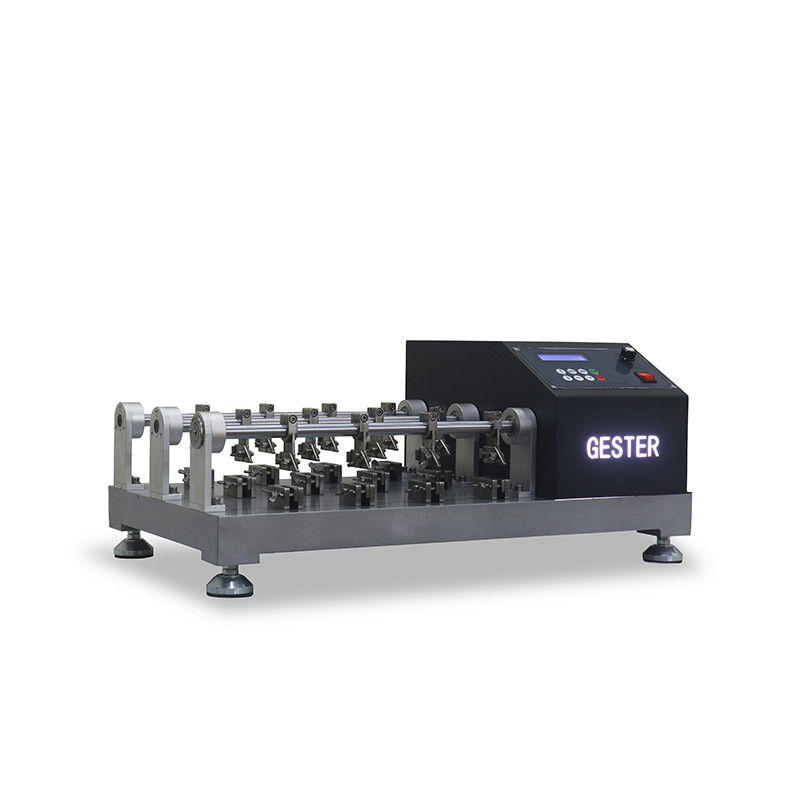

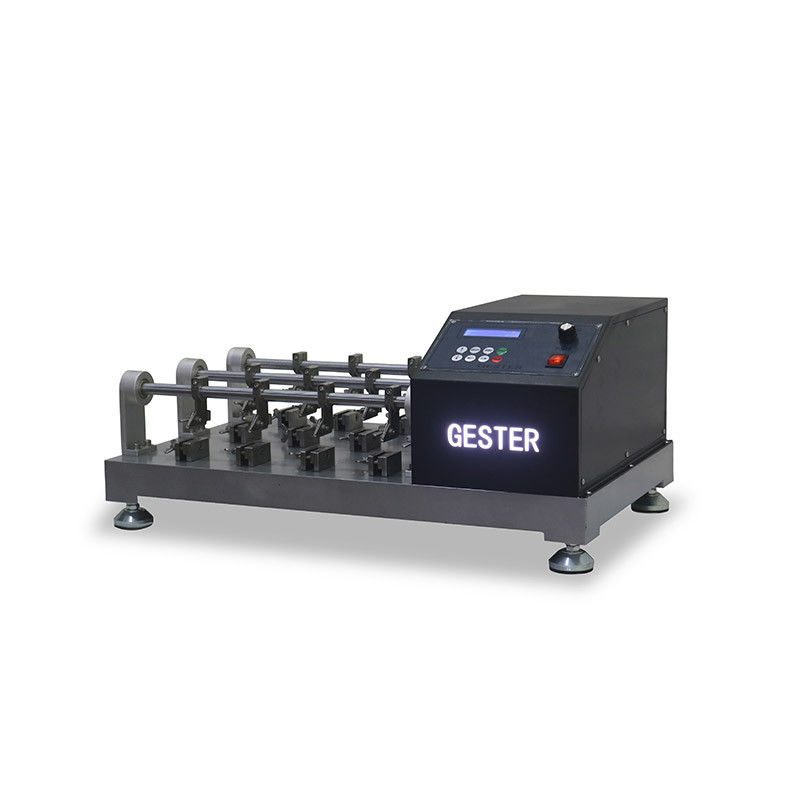

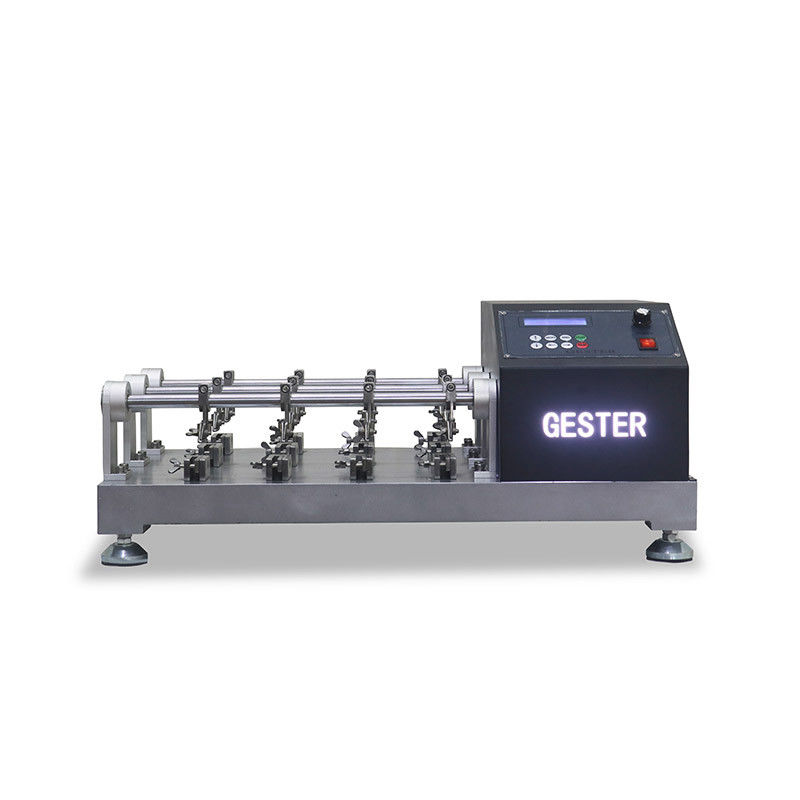

22.5 Degree Bally Leather Flexing Tester

small.img.alt
small.img.alt 22.5 Degree Bally Leather Flexing Tester 22.5 Degree Bally Leather Flexing Tester small.img.alt 22.5 Degree Bally Leather Flexing Tester 22.5 Degree Bally Leather Flexing Tester small.img.alt 22.5 Degree Bally Leather Flexing Tester 22.5 Degree Bally Leather Flexing Tester small.img.alt 22.5 Degree Bally Leather Flexing Tester 22.5 Degree Bally Leather Flexing Tester small.img.alt 22.5 Degree Bally Leather Flexing Tester 22.5 Degree Bally Leather Flexing Tester
Basic Information
Place of Origin: China
Brand Name: GESTER
Certification: CE, ISO
Model Number: GT-KC10A
Minimum Order Quantity: 1 set
Packaging Details: wooden packaging
Delivery Time: 10-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets/month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Usage: Leather Flexing Test Warranty: 12 Months
Product Name: Bally Flexing Tester Application: Leather & Footwear
Power Supply: AC220V Quality: High,good
Display: LCD
High Light:

22.5 Degree Bally Leather Flexing Tester

,

100 Cycles Bally Leather Flexing Tester

,

22.5 Degree Footwear Testing Machine

Bally Leather Flexing Tester GT-KC10A



Product Introduction



Application:

This Bally resistance flexing tester is used to determine the resistance of a material to cracking or other types of failure at flexing creases. The method is applicable to all flexible materials and in particular leathers, coated fabrics and textiles used in footwear uppers.







Feature

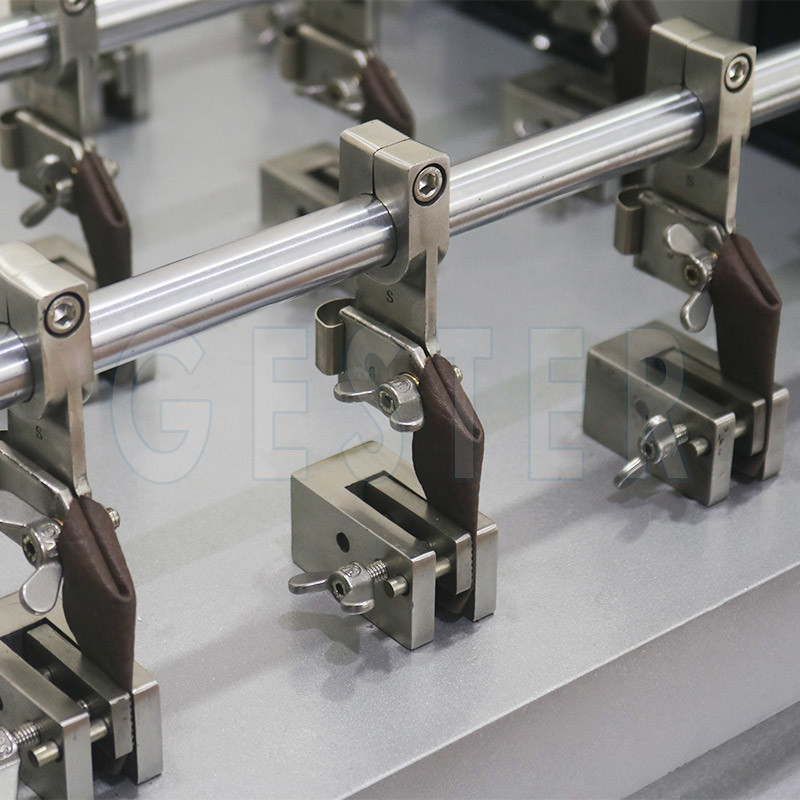

The test specimen is folded in half then one end is secured in a clamp. The test specimen is then turned inside out and the free end secured in a second clamp at 90 degrees to the first. The first clamp is repeatedly oscillated through a fixed angle at a defined rate causing the test specimen to flex. At set intervals the number of flexing cycles is recorded and the damage to the test specimen is visually assessed. The test can be carried out with wet or dry test specimens at ambient.





Key Specifications



Model

GT-KC10A-6

GT-KC10A-12

GT-KC10A-24

Test position

6Sets

12 Sets

24 Sets

Type of upper grips

Please choose the suitable type as below chart of ‘Standard’.

Flexing angle

22.5° ± 0.5°

Flexing speed

100 ± 5 cycles / flexes per minute

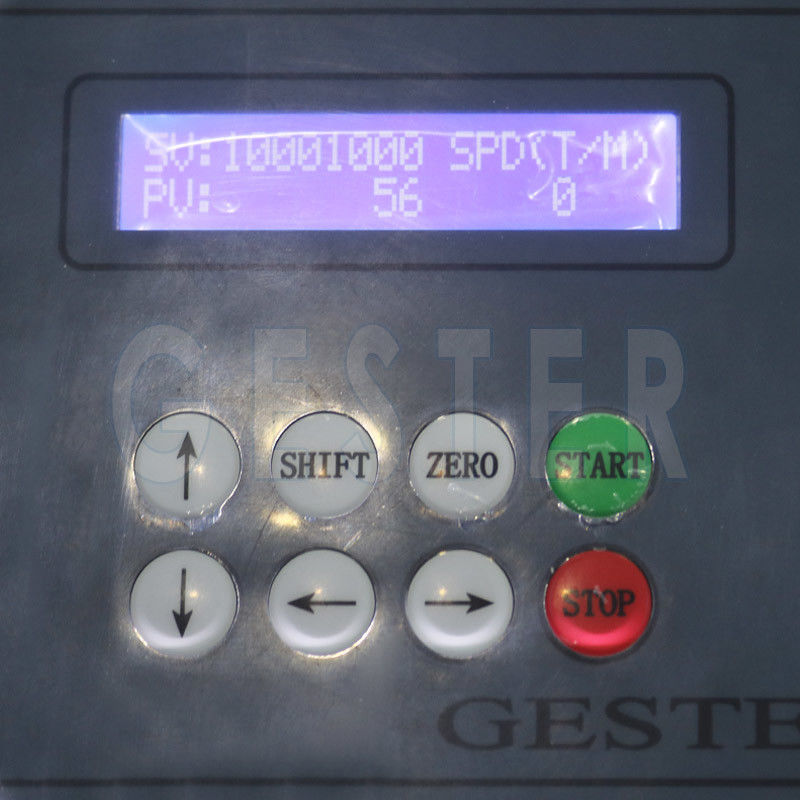

Counter

LCD 0 - 999,999.(adjustable)

Sample size

70 ± 5 x 45 ± 5 mm

Power supply

1∮AC 220V 50/60HZ

Dimensions ( L x W x H )

700x300x340mm

780x450x360mm

1100x510x220mm

Weight

About 45kg

60kg

70kg



Standards:

SATRA TM 55; IULTCS/IUP 20-1;

ISO 17694 ; EN 13512 ;

EN344-1 section 5.13.1.3 and annex C;

EN ISO 20344 section 6.6.2.8;

GB/T20991 section 6.6.2.8;

AS/NZS 2210.2 section 6.6.2.8;

JIS-K6545; BS 3144 Clause 13

Equipped with A type of upper grips.

ISO 32100 ; DIN53351; ISO5402-1;

GE-24;ASTM D 6182

Equipped with B type of upper grips.



Accessories:

Standards Accessories

Power line

1pc

Optional Accessories

GT-KD20 Pneumatic sample cutting machine

(Cutter: 70 ± 5 x 45 ± 5 mm)



22.5 Degree Bally Leather Flexing Tester 0

Tag:

ASTM D1052 ROSS Flexing Tester,

SATRA TM92 Bally Flexing Tester,

ASTM D1052 ROSS Flex Tester
