Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | HEY120 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 set/month |
| Key Word: | Paper Plate Machine | Warranty: | 1 Year |
|---|---|---|---|
| Certificate: | CE, ISO | Capacity: | 60-80pcs/min（double Work Station） |
| Power Source: | 220V 50HZ | Overall Dimension: | 1200x1600x1900mm |
| High Light: | 50HZ Paper Forming Machine,220V Paper Forming Machine,Biodegradable Paper Dish Making Machine |
||
Product Application
Paper plate machine is invented based on the market demand. It has integrated the pneumatic and the mechanic technologies, which is faster speed, much safety-performance, and easier operation and lower consumption.
We adopt the high efficiency pressurized cylinder maximum pressure can reach 5 tons, it is more efficiency and eco-friendly then the traditional hydraulic cylinders.
It runs automatically from air sucking, paper feeding, forming healing, automatic dish and temperature control, discharging and counting.
It's widely applied to make paper plate(or aluminum foil laminated paper plate) in round (rectangle,square, circular or irregular) shape.
Product Parameter
| Paper Plate Size |
5-11 inches (mold exchangeable) |
| Paper Material |
150-400g/m2 Paper/paperboard,aluminum foil coated paper.one side PE coated paper or other |
| Capacity |
60-80pcs/min(double work station) |
| Power Source |
220V 50HZ |
| Total Power |
3KW |
| Total Weight |
600KG |
| Overall Dimension |
1200x1600x1900mm |
| Working Air Source |
Air pressure:0.8MPa Air consumption:0.6mJ/minute |

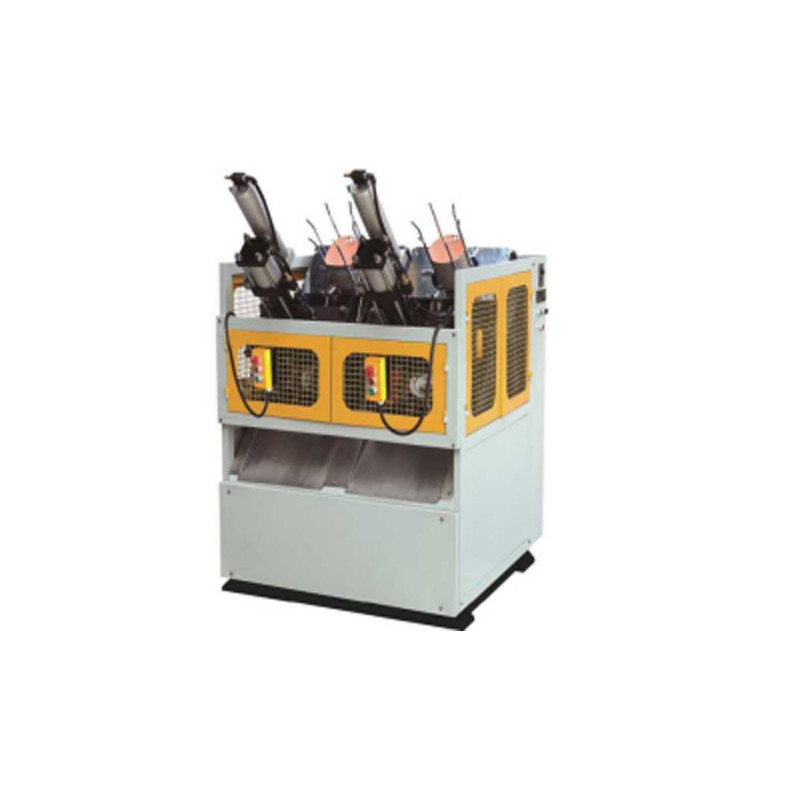

Product Display
